Omega 3220 Technical Guide

/10

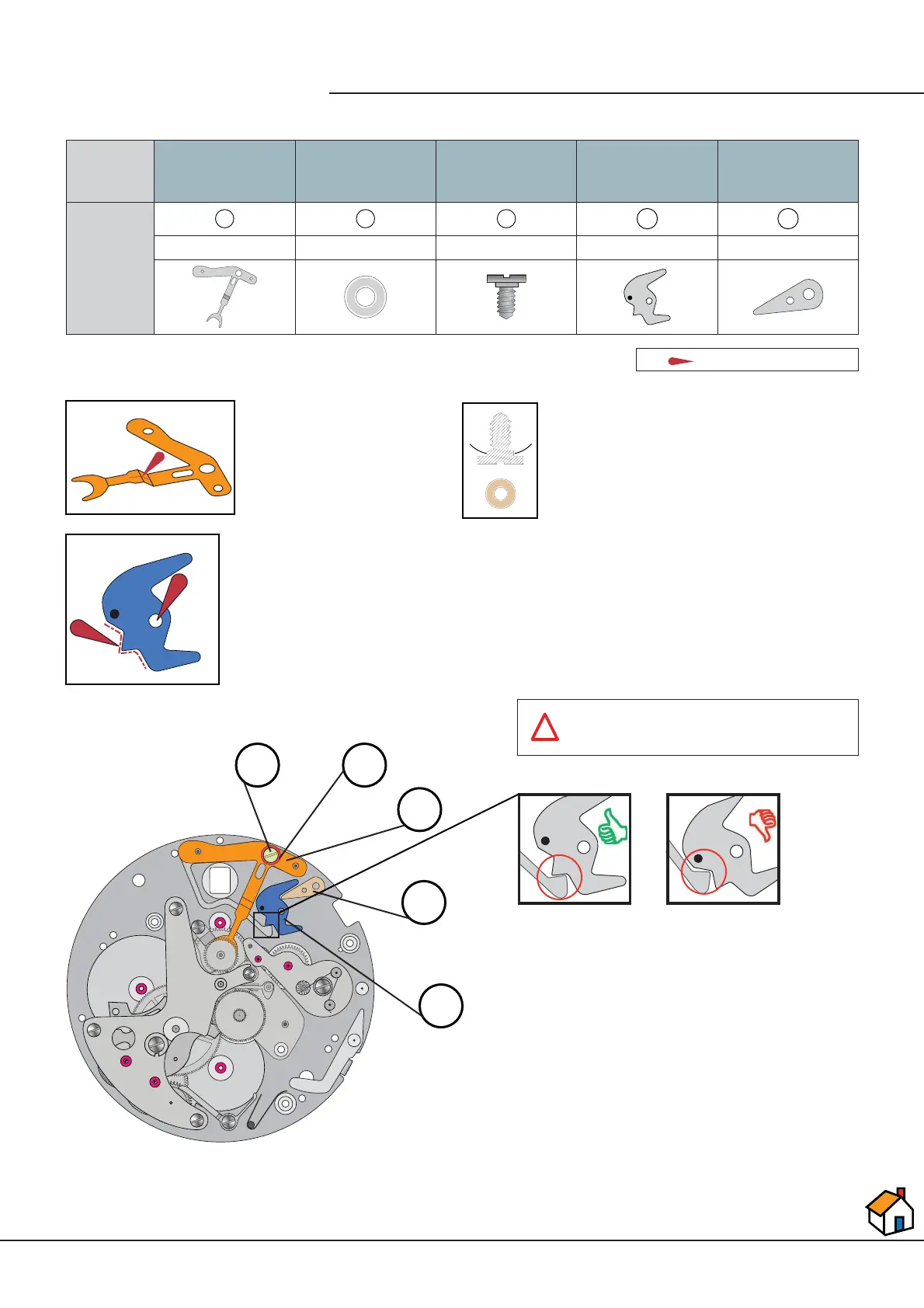

Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
1.0 Parts for assembling
2.0 Pre-lubrication
Movement
holder
Clutch spring
Clutch spring
maintaining
washer
Screw for clutch
spring and
cam jumper
Chronograph cam Reversing yoke
Ref.
1
2
3
4 5
Ref. 65.046 Ref. 80.282 Ref. 2839 Ref. 55.200 Ref. 55.086
4
5
2
3
1
Check the uncoupling spring position
(see page 19)
!
2.1 Pre-assembly
Molycote DX
3.0 Order of assembly
