Omega 3220 - Page 9

/9

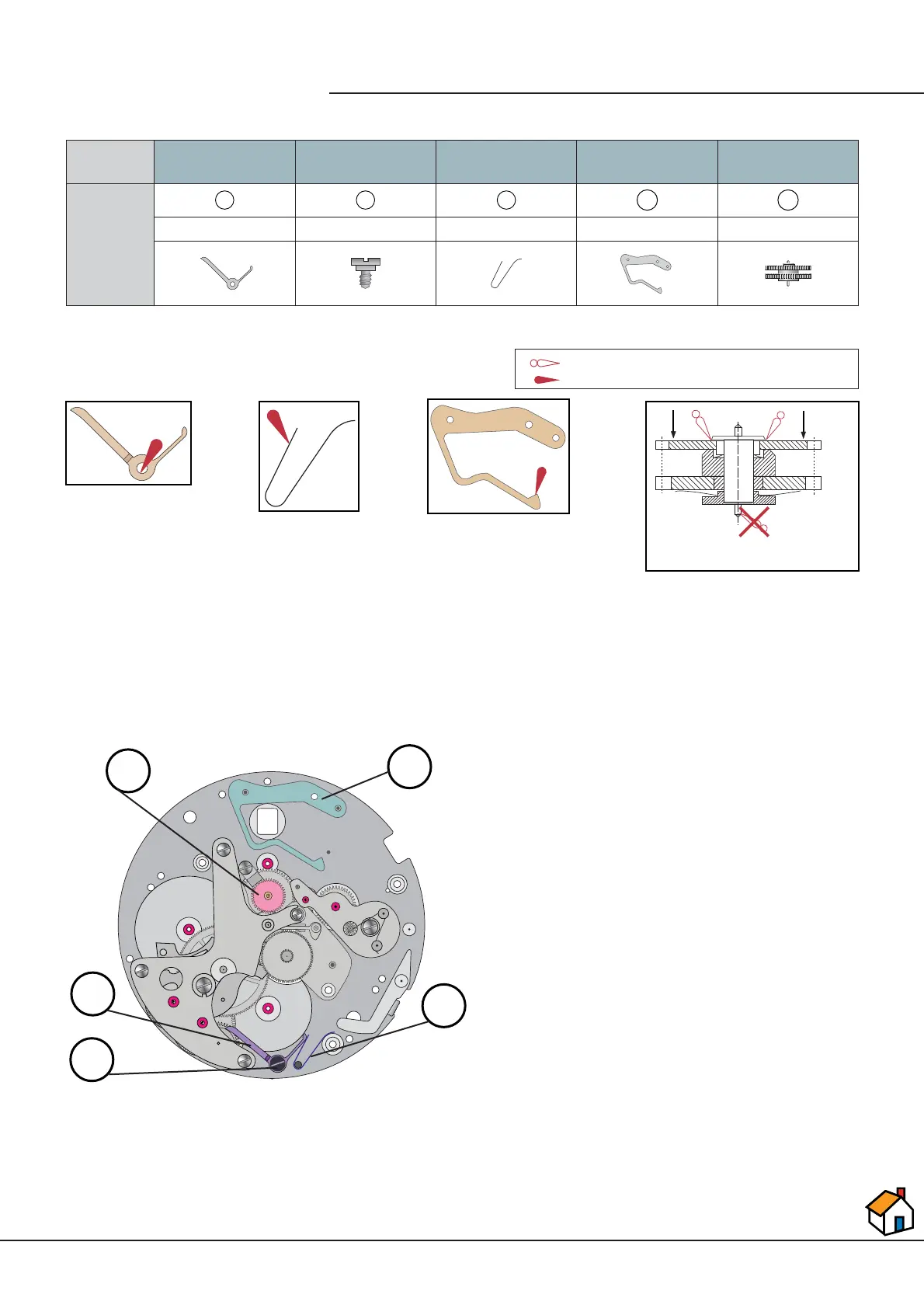

Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
1.0 Parts for assembling
2.0 Pre-lubrication
3.0 Order of assembly
Movement
holder
Lock Screw for lock Lock spring Cam jumper Clutch wheel
Ref.
1
2
3
4 5
Ref. 55.281 Ref. 2838 Ref. 65.210 Ref. 55.138 Ref. 35.062
2
3
1
4
5
Press
Do not lubricate th
e
bottom pivot
Moebius SYNT HP-500
Molycote DX
