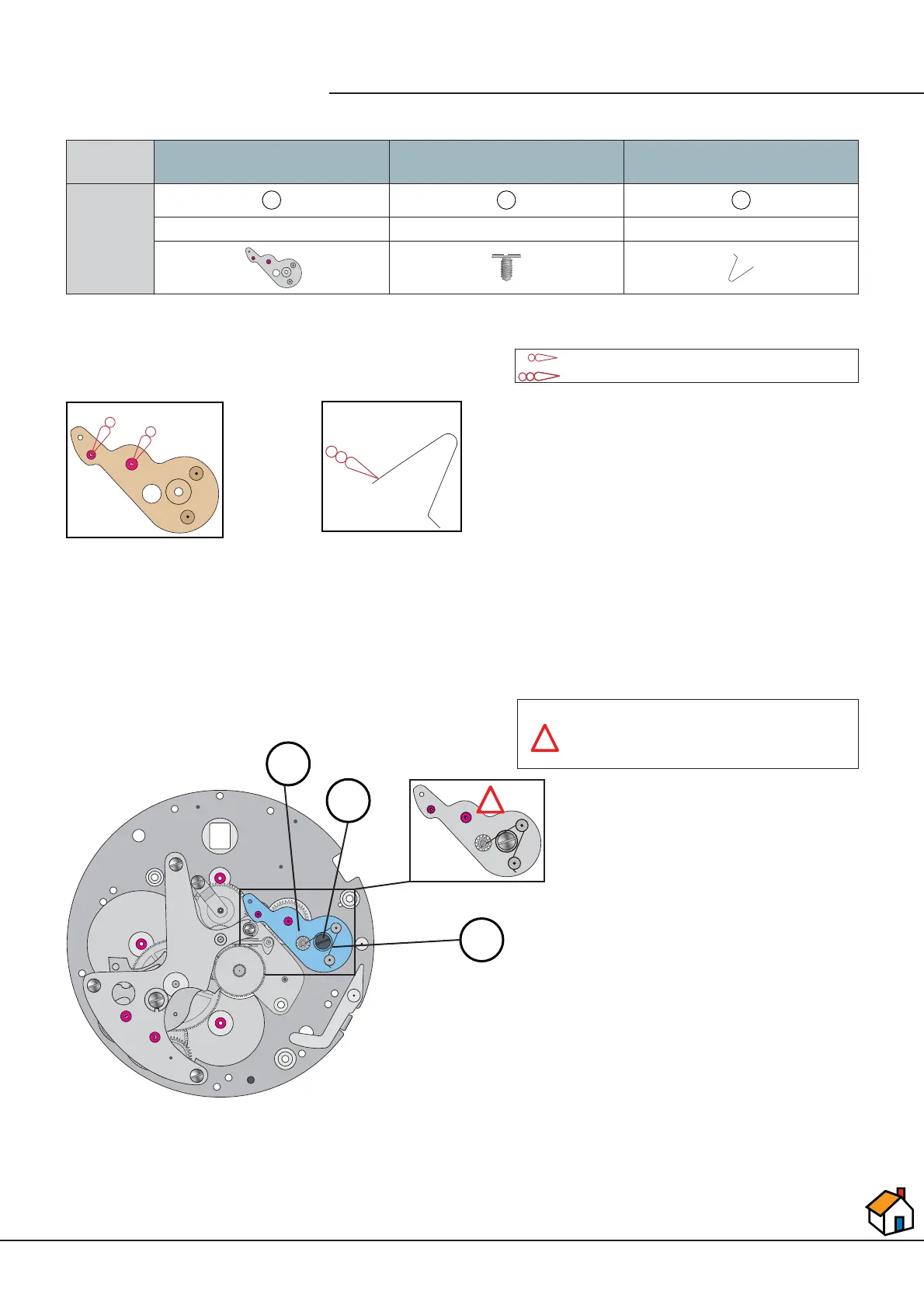

Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220
Movement
holder
Second train bridge Screw for second train bridge Second pinion friction spring
Ref.
1
2
3
Ref. 15.051 Ref. 3450 Ref. 120
2.0 Pre-lubrication
3.0 Order of assembly
1.0 Parts for assembling
3
1
2
Check the friction spring tension (see
page 18) + end shake of moving parts!
!
!
Moebius SYNT HP-500
Moebius SYNT HP-1300 Sans Colorant
To Next Page
