OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-063-E - A - 3603

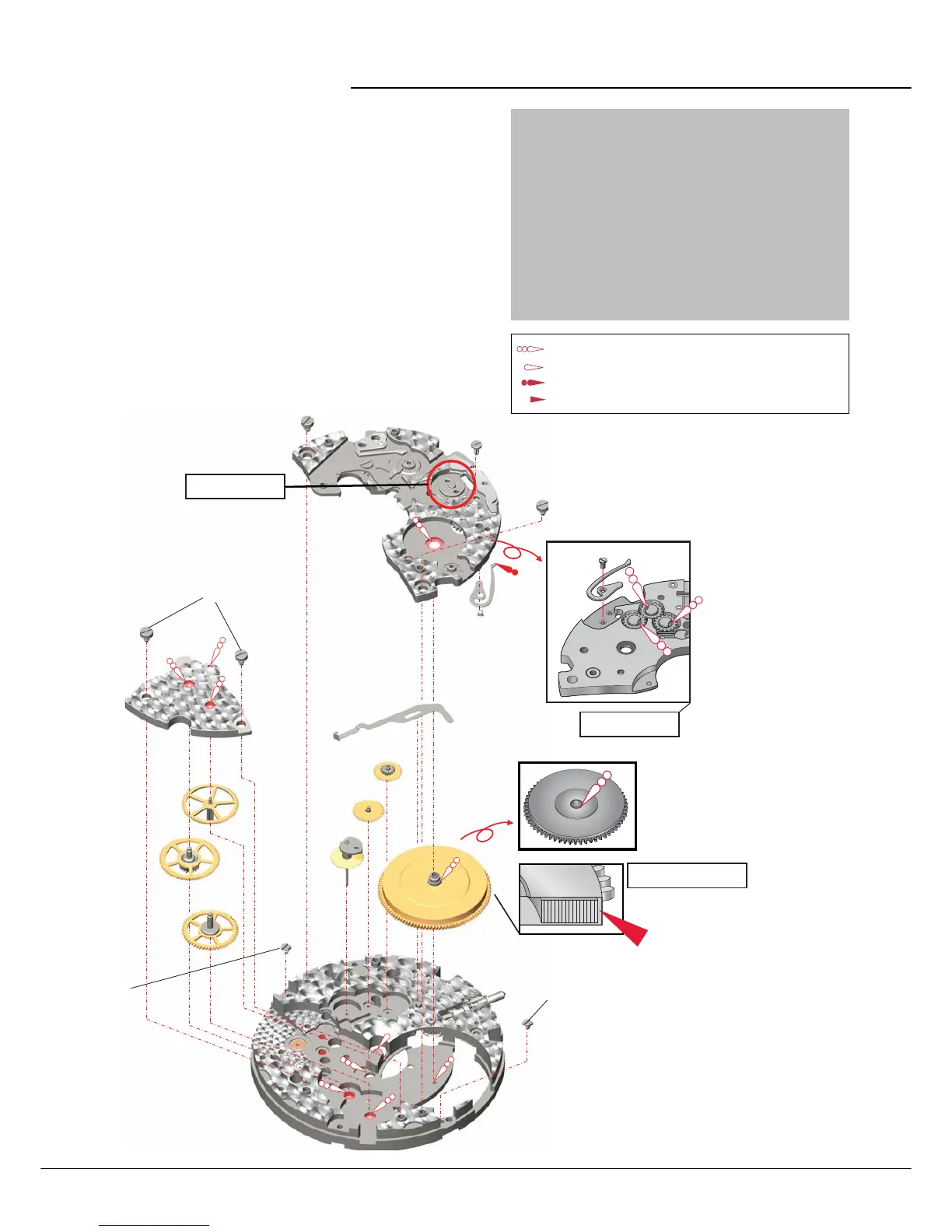

Exploded views - Movement side for calibre 3603
1
4
2
3
5
6
8
9
7
10
15
13
12
11
16
14
14
See WI No 40
See page 4
11
12
See page 5
16
Parts listed in order of assembly
1 = 30012
2 = 30014
3 = 30025
4 = 10048
5 = 7031 (2x)
6 = 20015
7 = 35032
8 = 35030**
9 = 35033
10 = 56070
11 = 65040
12 = 6204 (1x)
13 = 10041
14 = 7031 (2x)
15 = 6011 (1x)
16 = 70200 (2x)
Moebius SYNT HP-1300 Sans Colorant
Moebius SYNT-A-LUBE 9010
Moebius 9504
Kluber P125
