OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-063-E - A - 3603

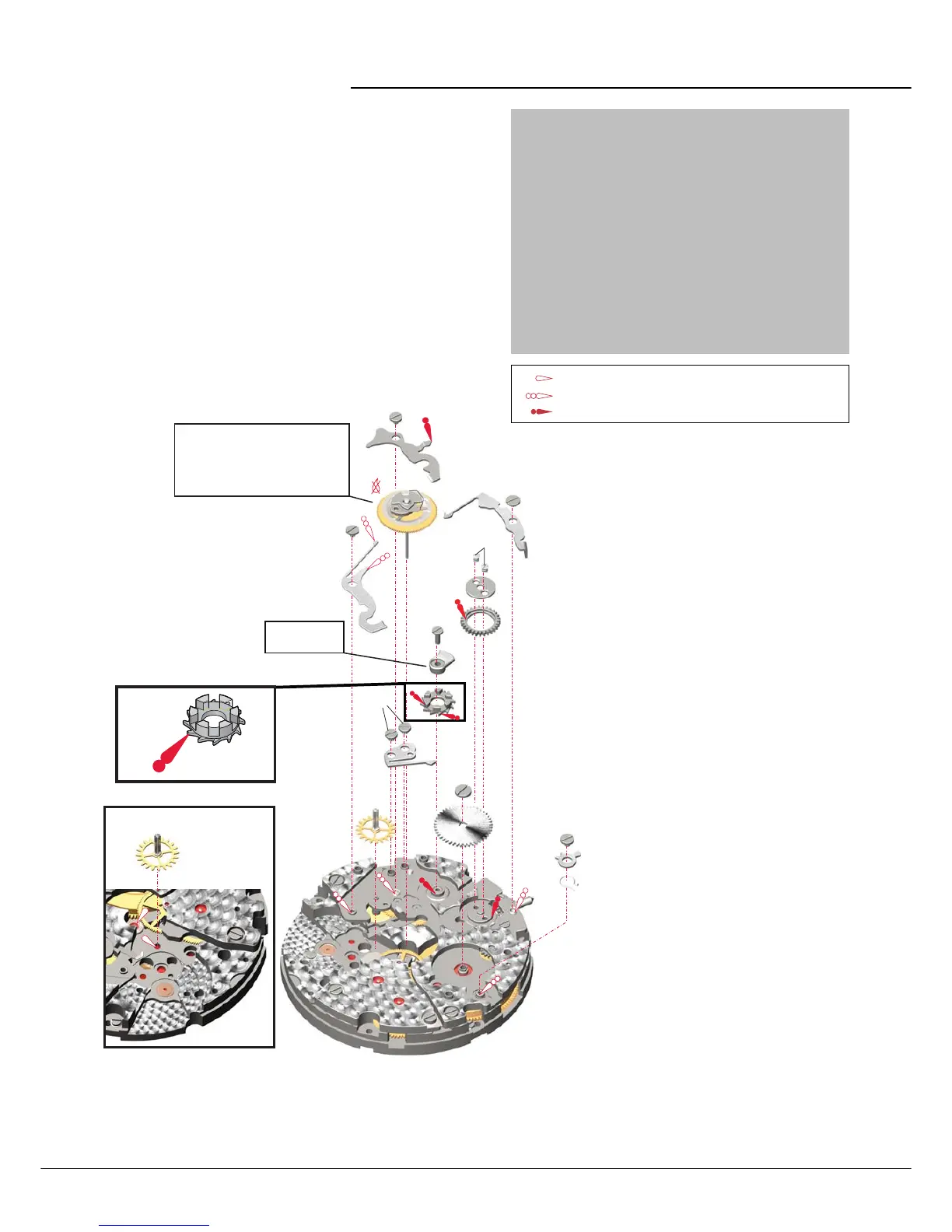

Exploded views - Movement side for calibre 3603Exploded views - Movement side for calibre 3603
7
8
9
14
15
1
2
3
10
11
4
5
6
12
13
17
20
21
18
19
Detail position 17
17
16
4 points
4 points
Attention:
See page 23
3 points
on column
4 points
on teeth
Do not clean. If the part is
very dirty or rusted, exchange
for, an original part which is
delivered prelubricated.
Parts listed in order of assembly
1 = 31023
2 = 81136
3 = 6204 (2x)
4 = 55180
5 = 10615
6 = 6034 (1x)
7 = 61080
8 = 51120
9 = 7008 (1x)
10 = 55040
11 = 6022 (1x)
12 = 55130
13 = 6004 (2x)
14 = 31022
15 = 6019 (1x)
16 = 35010**
17 = 30039
18 = 55100
19 = 6004 (1x)
20 = 55090
21 = 6004 (1x)
Moebius SYNT-A-LUBE 9010
Moebius SYNT HP-1300 Sans Colorant
Moebius 9504
