OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-063-E - A - 3603

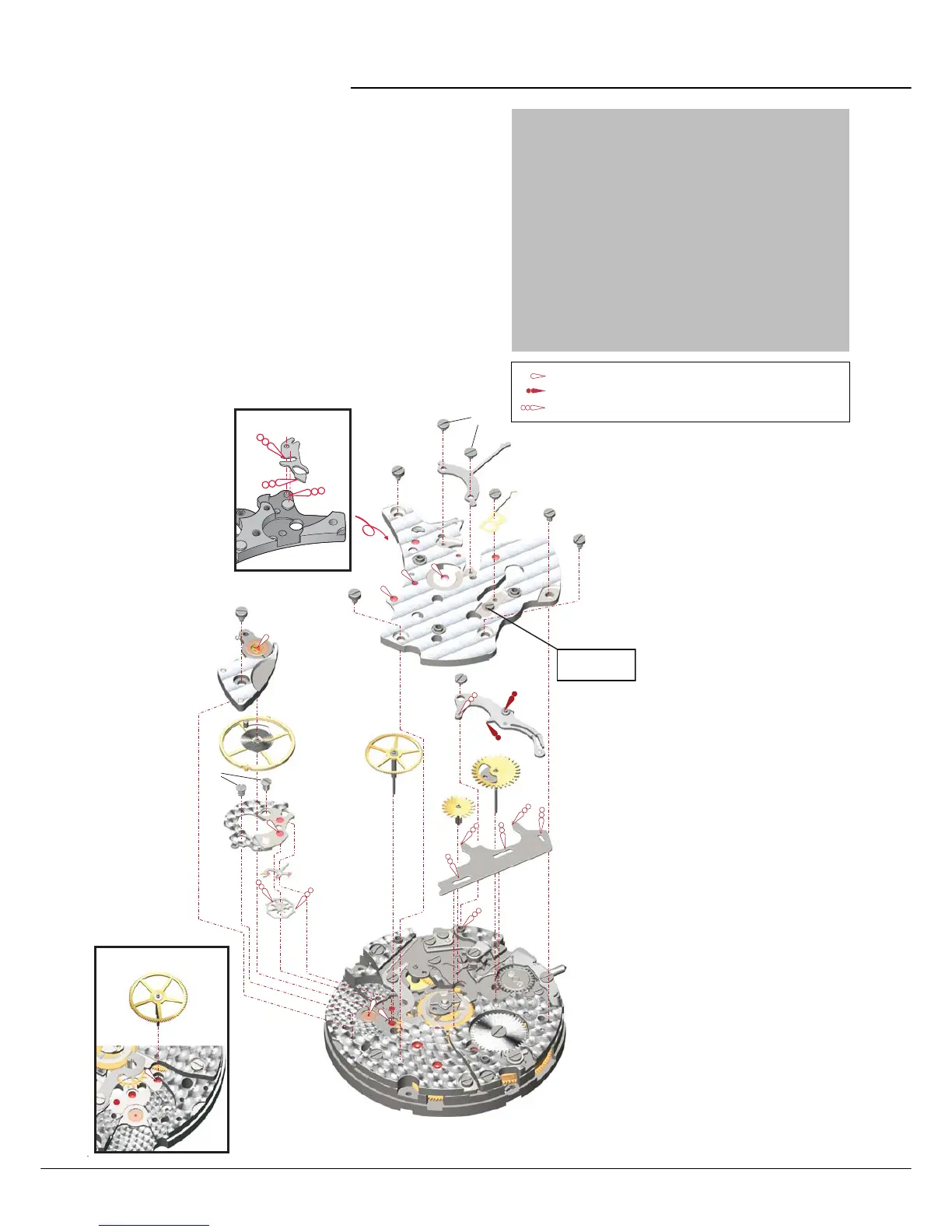

Exploded views - Movement side for calibre 3603
Parts listed in order of assembly
1 = 55240
2 = 55048
3 = 6004 (1x)
4 = 30027**
5 = 35012**
6 = 35031
7 = 55248
8 = 15040
9 = 7031 (3x)
10 = 7033 (1x)
11 = 65047
12 = 6012 (2x)
13 = 55143
14 = 6004 (1x)
15 = 30037
16 = 40015
17 = 10056
18 = 8204 (2x)
19 = 40059
20 = 10058
21 = 7031 (1x)
1
6
5
3
18
17
4
20
21
9
8
9
10
13
11
12
14
2
9
Detail position 8
16
15
Detail position 4
19
Attention:
see page 23
7
8
Moebius SYNT-A-LUBE 9010
Moebius 9504
Moebius SYNT HP-1300 Sans Colorant
