Omega ECHO-3 - Installing Echo Transceiver System

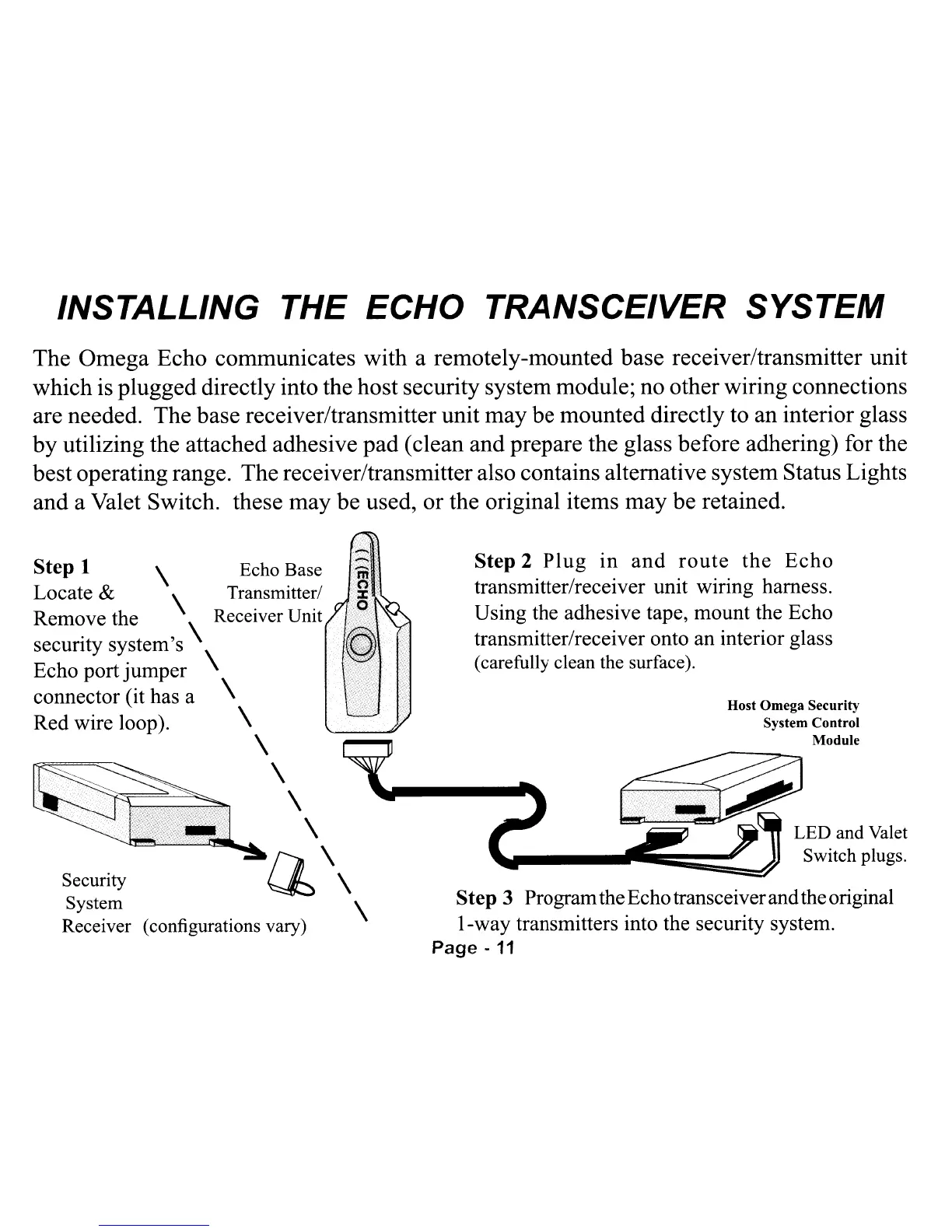

INSTALLING THE ECHO TRANSCEIVER SYSTEM
The Omega Echo communicates with a remotely-mounted base receiver/transmitter unit
which is plugged directly into the host security system module; no other wiring connections
are needed. The base receiver/transmitter unit may be mounted directly to an interior glass
by utilizing the attached adhesive pad (clean and prepare the glass before adhering) for the
best operating range. The receiver/transmitter also contains alternative system Status Lights
and a Valet Switch. these may be used, or the original items may be retained.
Host Omega Security
System Control
Module
Step 2 Plug in and route the Echo
transmitter/receiver unit wiring harness.
Using the adhesive tape, mount the Echo
transmitter/receiver onto an interior glass
(carefully clean the surface).
Step 3 ProgramtheEchotransceiverandtheoriginal
I-way transmitters into the security system.
Page - 11
Security
System
Receiver (configurations vary)
Step 1 \ Echo Base
Locate & \ Transmitter/
Remove the \ Receiver Unit
security system's \
Echo port jumper
connector (it has a \
Red wire loop). \
\
\
\
\
CL',
\
