Omega MARS-22 User Manual

Contents
Operation Guide
Introduction & Safety Considerations .......................................................................... 3
Basic Transmitter Functions Overview ........................................................................ 4
Remote Locking & Unlocking the Doors ...................................................................... 5
Remote Starting the Engine......................................................................................6-7
Remote Panic & Emergency Flashlight ....................................................................... 8
Remote Trunk Release ................................................................................................ 9
Multiple Vehicle Operation ........................................................................................... 9
The Receiver Unit ...................................................................................................... 10
Programmable Features .......................................................................................10-18
Programming Transmitters ...................................................................................18-19
Limited Lifetime Warranty ........................................................................... Back Cover
Installation Instructions
Installation Considerations ...................................................................................22-23
Installation Cautions and Warnings ........................................................................... 22
Main & Receiver Modules .......................................................................................... 23
Wiring Diagram Overview .....................................................................................20-21
6 Wire Main Harness ............................................................................................24-26
3 Wire Connector ..................................................................................................26-27
12 Wire Harness ...................................................................................................27-34
2 Wire Connector ..................................................................................................34-39
2

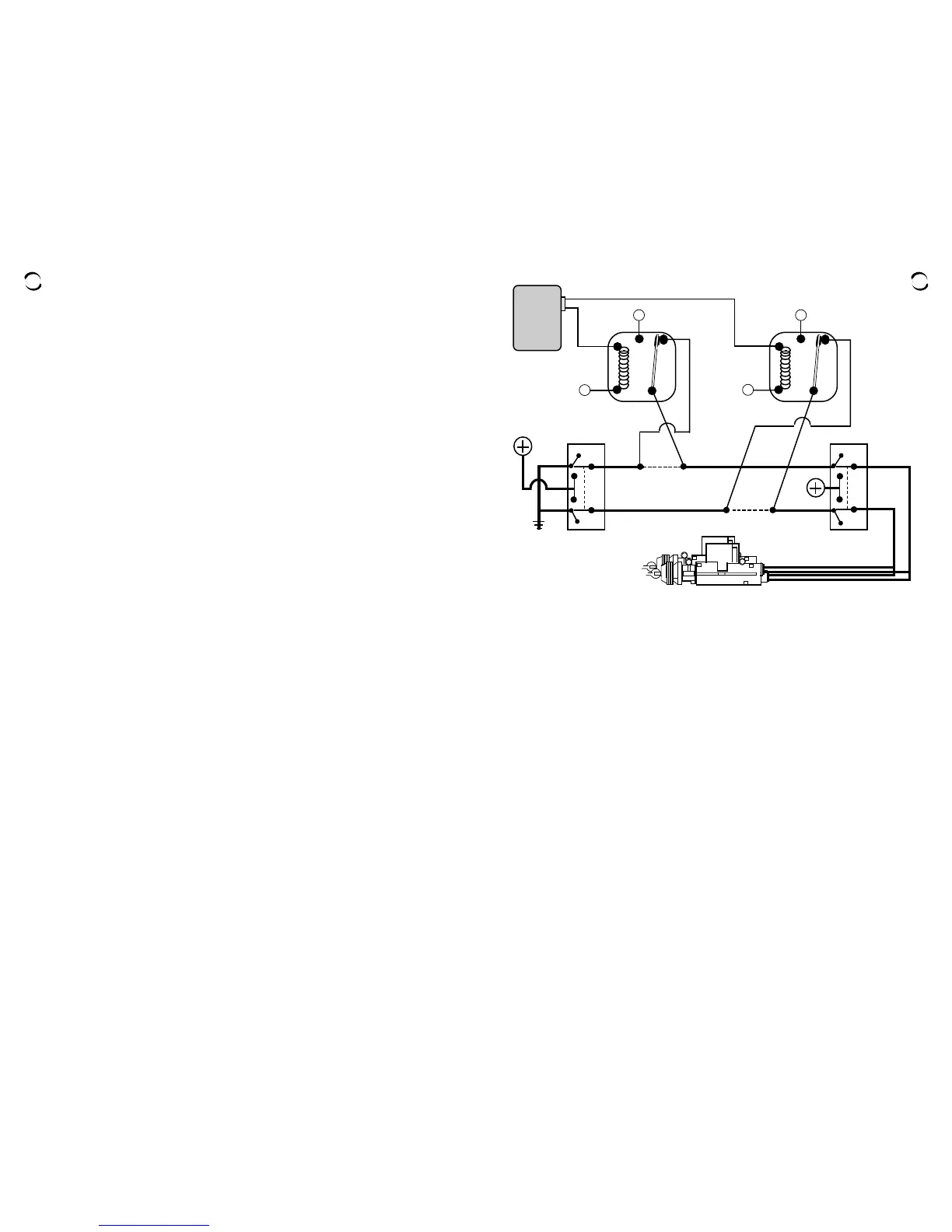

Reversing Polarity System
Using External
Relays
Unlock
Lock
Unlock
Lock
Blue Wire
Green
Wire
Doorlock Actuators
Master Doorlock
Switch
85
86
87a
87
Coil
30
85
86
87a
87
Coil
30
++
+
+
Secondary Doorlock
Switch
Control
Module
+
+
+
+
39
