2.7 Shift Light
The shift light can be either an LED or a filament bulb of up to 1A current draw. If an LED is used it will
need to be a 12V specific LED or must have an inline resistor fitted. An LED will glow slightly all of the
time then turn on bright at the shift point. Omex can supply shift light LEDs that are fully off normally. If
a filament bulb is used it will be fully off then fully on at the shift point.
OMEM200 Installation Manual 2v10
15
12V
ECU shiftlight
(blue / grey)
12V
ECU shiftlight
(blue / grey)
12V (red)
ECU shiftlight
(blue / grey)
12V
ECU shiftlight
(blue / grey)

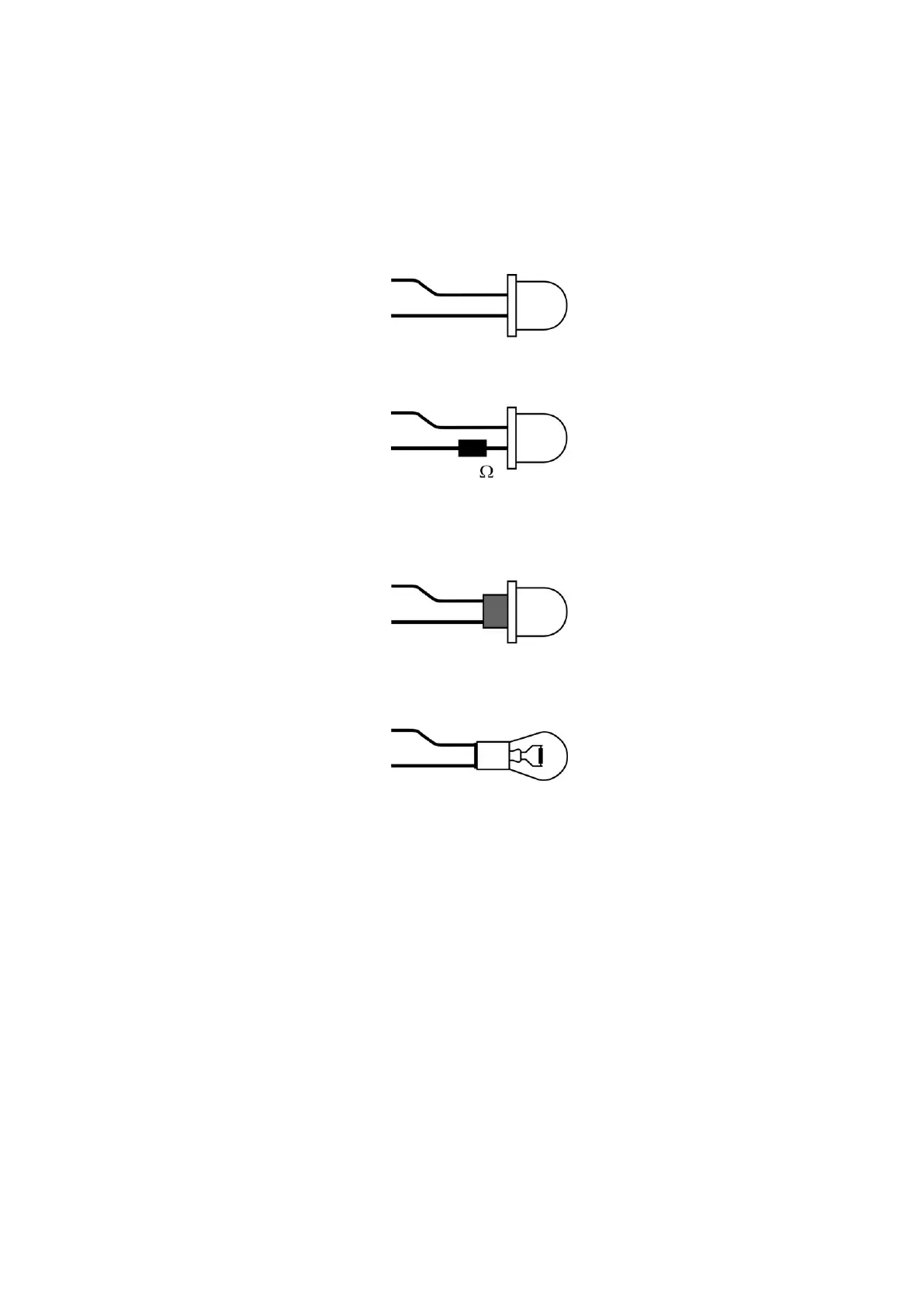

12V LED
standard LED
Omex LED
470
Filament bulb max 1 amp
