OmniCell OmniTT - Remove the Keyboard; Remove the Elastomer

© 2010 Omnicell, Inc. OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D
Electronics Tray 1-7
Removal Procedure
Keyboard
1. Remove the 14 nuts that secure the keyboard cover to the tray.

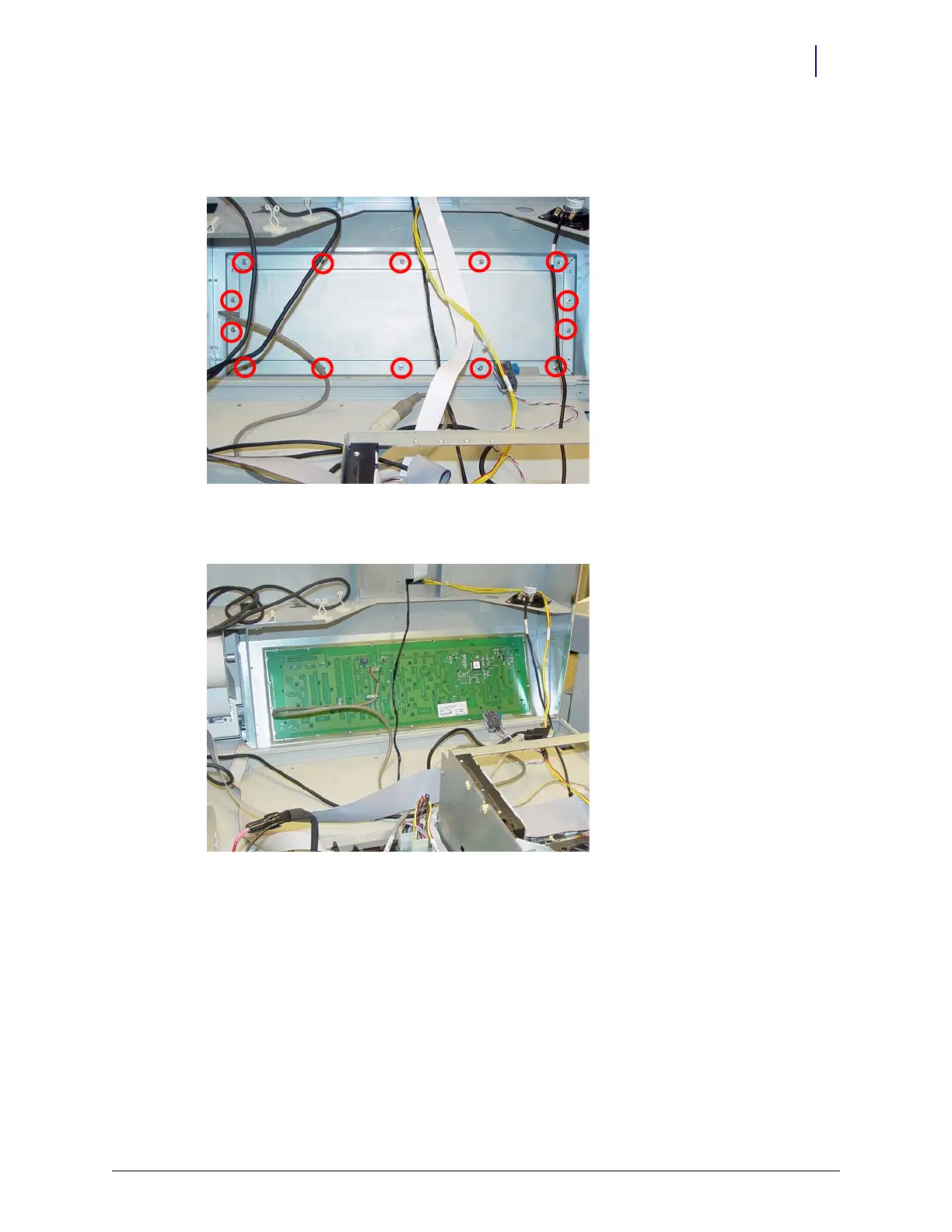

Figure 1-12. Remove the nuts that secure the keyboard cover to the tray
2. Remove the keyboard cover.
Figure 1-13. Remove the keyboard cover
3. Remove the keyboard from the tray.
