1-2 Electronics Tray
Removal Procedure
OmniTT/AnesthesiaTT Installation and Service Guide/67-2024 Rev D © 2010 Omnicell, Inc.
LCD Assembly
1. Tilt the LCD assembly forward and disconnect the cables from the back of the LCD assembly.
a. Disconnect the inverter to power cable.
b. Disconnect the flat panel cable.
2. Set the lid back down.
3. Remove the four inner screws at the back of the console lid.

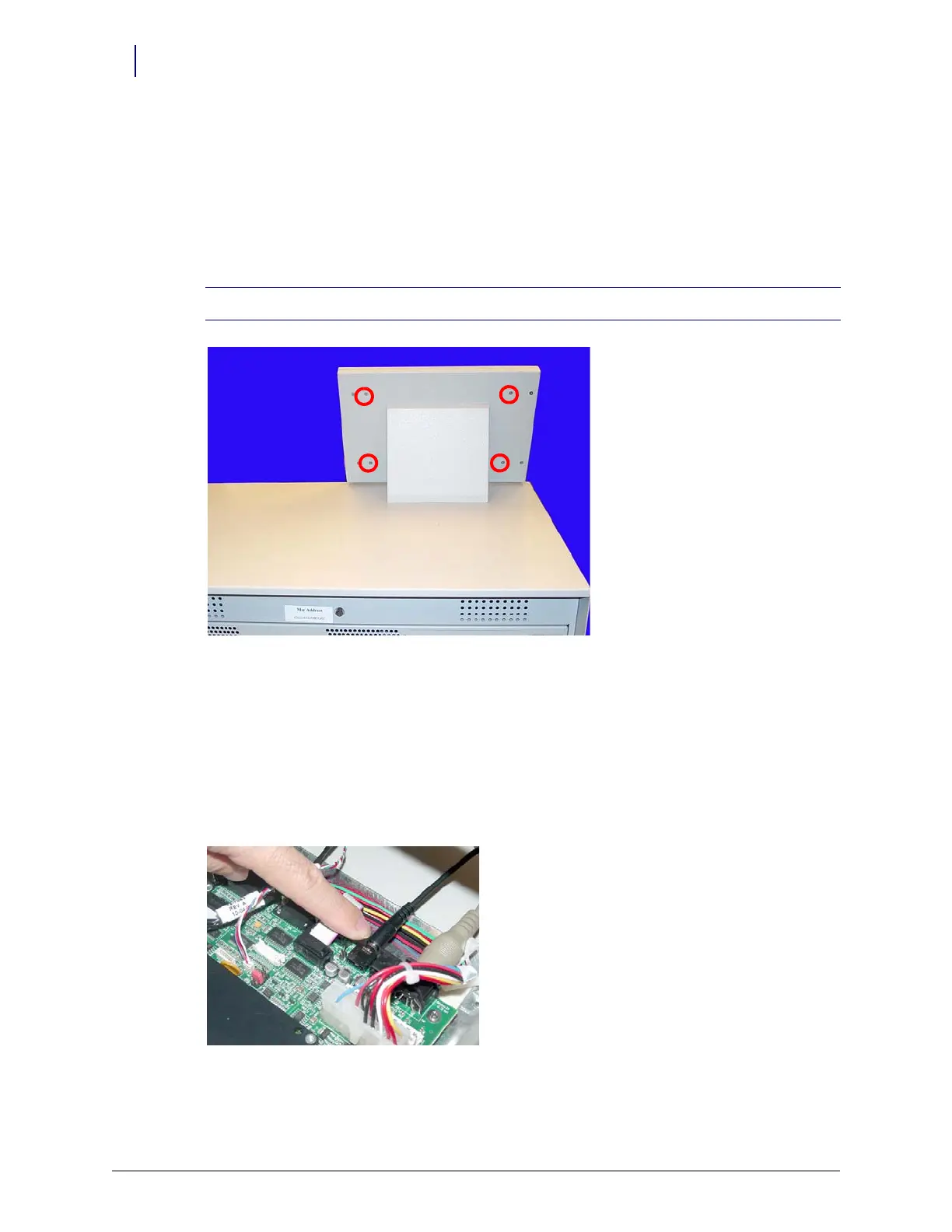

Figure 1-2. Remove the Four Inner Screws
4. Remove the LCD assembly from the LCD housing.
Speaker
1. Perform a graceful shutdown of the electronics tray.
2. Open the console top.
3. Remove the speaker from the motherboard.
Figure 1-3. Disconnect the speaker From the motherboard
Note: Hold onto the front of the LCD screen while removing the screws so that the assembly does not fall.
