Omnifilter OM26KCS User Manual

KEYPAD - BUTTONS
4
32
1

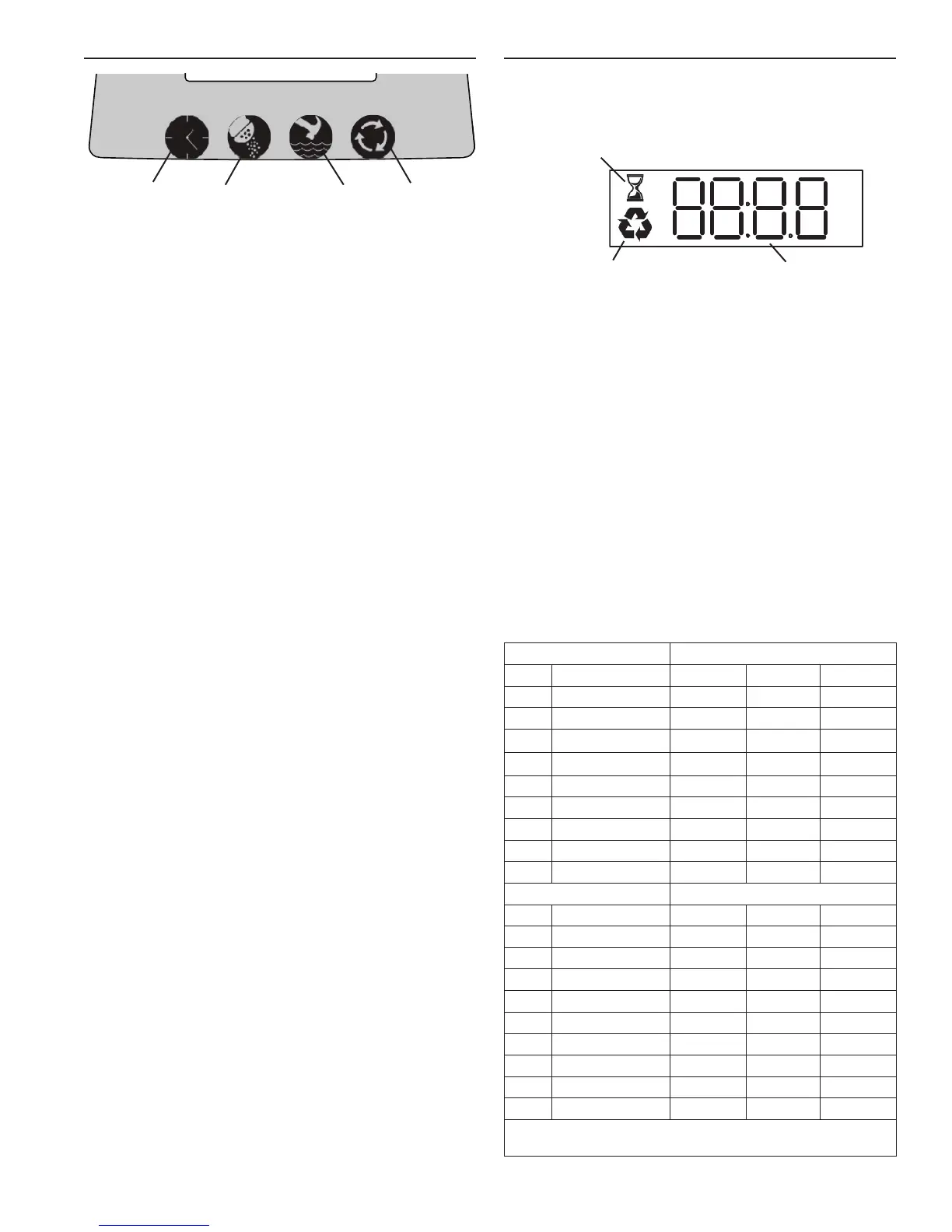

Figure 16 Keypad Buttons
1. Time of Day - Press and release to display the time of day
for ve seconds. Press button again while current time is
displayed to increment the time 1 minute. Press and hold
for two seconds to rapidly increment the time.
2. Salt Amount - Press and release to display the current
salt setting for ve seconds. There are three salt settings;
HC (High Capacity), Sd (standard capacity) and HE (High
Efciency). Press the button again while the salt setting is
displayed to change the setting.
HC: This setting maximizes the system capacity between
recharges and will also use the most salt. This setting can
be used if you have high water hardness or high water
usage.
Sd: This setting uses moderate amount of salt and provides
a medium amount of water between recharges. This setting
can be used for moderate water hardness or water usage.
HE: This setting minimizes salt usage for a recharge (uses
the least amount of salt) and provides the least amount of
water between recharges. This setting can be used if you
have low water hardness or low water usage.
3. Water Hardness - Press and release to display the current
hardness setting for ve seconds. Press button again while
current setting is displayed to increment the hardness by
one. Press and hold for two seconds to rapidly increment
the hardness setting.
A hardness setting too high will cause the system to
recharge more often and use more salt and water than
what is needed to condition your water.
A hardness setting too low will cause the system to
recharge less often. The system may pass hard water
shortly before it recharges.
4. Recharge - Press and release to initiate a recharge. A
recharge will start at the next scheduled time of recharge. A
ashing regen symbol will be displayed. To stop a manual
recharge press and release the recharge button a second
time. To start an immediate recharge, press and hold the
recharge button for three seconds. A solid regen symbol will
be displayed. The time display will show the amount of time
left in the recharge cycle.
During a recharge cycle (the recharge icon is on steady), a
second manual (delayed) recharge may be called for. Press
the recharge button and release. To stop a second manual
recharge press and release the recharge button a second
time.
During a recharge cycle (the regen icon on steady), a
second manual (immediate) recharge may be called for.
Press the recharge button a second time for three seconds.
A second immediate recharge can not be stopped.
NOTE: If a button is not pushed for ve seconds, the
controller returns to normal operation mode.
Pushing the recharge button immediately returns
the controller to normal operation.
RECHARGE
During a Recharge:
• Total regen time remaining is displayed on screen.
• The recharge icon is on steady.
MIN
Recharge Total recharge time remaining
Flashes when motor is running
Figure 17 Display during recharge.
To Advance Recharge Cycles:
• Simultaneously press Time of Day and Recharge to
advance to the next cycle. An hourglass will display while
cam is advancing.
When cam reaches the next cycle, Time Remaining will
be displayed.
• Repeat pressing Time of Day and Recharge to advance
through each cycle.
• To determine which cycle the controller is in during a
recharge, use Table 2. The time remaining is displayed
on the controller. Find the time remaining below your salt
setting. The cycle column will have the cycle number.
• Press and hold Time of Day and Recharge for 3 seconds
to advance through all remaining recharge cycles.
Hourglass will ash.
Camshaft will advance to service - may take 1 to
2 minutes.
OM26KCS Recharge Cycles:
Table 1 Length of Cycle
Cycle Cycle Description HE Setting Sd Setting HC Setting
1 Rell 3 min 8.5 min 13 min
2 Brine Prep 120 min 120 min 120 min
3 Backwash 1 8 min 8 min 8 min
4* Brine Draw 6 min 18 min 28 min
5* Slow Rinse 37 min 37 min 37 min
6 Re-Pressurize 3 min 3 min 3 min
7 Fast Rinse 1 3 min 3 min 3 min
8 Backwash 2 1 min 1 min 1 min
9 Fast Rinse 2 1 min 1 min 1 min
Table 2 Time remaining to end of cycle
Cycle Cycle Description HE Setting Sd Setting HC Setting
1 Rell 184 min 201 min 216 min
2 Brine Prep 181 min 193 min 203 min
3 Backwash 1 61 min 73 min 83 min
4* Brine Draw 53 min 65 min 75 min
5* Slow Rinse 47 min 47 min 47 min
6 Re-Pressurize 10 min 10 min 10 min
7 Fast Rinse 1 7 min 7 min 7 min
8 Backwash 2 4 min 4 min 4 min
9 Fast Rinse 2 3 min 3 min 3 min
*The camshaft does not move between cycles 4 and 5. Cycle 5 begins
when the brine in the salt tank runs out and the check valve closes.
OM26KCS, OM32KCS, OM36KCS DE11 • 11
