Omnifilter OM26KCS User Manual

5
8
9
7
6
10
1
4
3
2
22
21
20
19
18
17
16
15
14
13
12
11
Item No. QTY Part No. Description
1 ........... 1 .......4000864......... Assembly, 706 Controller
Cover
2 ........... 1 .......4001576......... Valve Body Assy, Volumetric
Includes Item #18 OM26KCS
........4000889......... Valve Body Assy, Volumetric
Includes Item #18 OM32KCS
and OM36KCS
3 ........... 1 .......3007947......... Valve Disc Kit
4 ........... 1 .......3022012......... Top Plate
5 ........... 1 .......4000871......... Female Elbow, 3/8 NPT to
3/8 Tubing
6 .......... 12 ......1234170......... Screw, Top Plate
7 ........... 1 .......3022017......... Spring, Top Plate
8 ........... 1 .......3022013......... Camshaft, Rell First
9 ........... 1 .......1000589......... Yoke, Camshaft
10 ........... 2 .......1234170......... Screw, Yoke
11 ........... 1 .......4001291......... 368 Valve Motor/Optical
Sensor Assy
12 ........... 1 .......1000269......... Injector Cap Assembly
13 ........... 1 .......3025329......... “H” Assy Injector w/O-rings
and Screen, Lt Purple, 9 Inch
Tank OM26KCS
........4000880......... “J” Assy Injector w/O-rings
and Screen,, Lt Blue, 10
Inch Tank OM32KCS and
OM36KCS
14 ........... 1 .......1243510......... Assembly, Rell Cont, .33
gpm
15 ........... 2 .......1030502......... Ball, Backwash, Brine Rell
Controller
16 ........... 1 .......1010154......... O-ring, Tank
17 ........... 1 .......1232370......... O-ring, Riser
18 ........... 1 .......3027839......... Meter Assembly
19 ........... 1 .......1235446......... Assembly, Sensor Cable
20 ........... 1 .......3031825......... Kit, O-ring, Manifold
21 ........... 1 .......4000886......... Bypass
1 .......4000392......... Main Assembly
2 .......3027832......... Retainer, Manifold, SS
2 .......40576............. Clips Retainer, Plastic
1 .......3031825......... Kit, O-ring Manifold
22 ........... 1 .......4001286......... Kit, Drain Line Flow Control
OM26KCS
........4000887......... Kit, Drain Line Flow Control
OM32KCS and OM36KCS
1 .......4000390......... Drain Line Clip
1 .......1030502......... Backwash Ball
1 .......4000535......... Flow Control with O-ring
OM26KCS
........4000536......... Flow Control with O-ring
OM32KCS and OM36KCS
23 ........... 1 .......1000811 ......... 120 VAC, 60 Hz, N. America
Plug
24 ........... 2 .......4000888......... Connector Assembly, 1" NPT,
Plastic, w/O-ring and Clip
Retainer
25 ........... 1 .......4000996......... Fitting, Drain Line, 90°, 1/2
NPT, 1/2 Tube
Item No. QTY Part No. Description

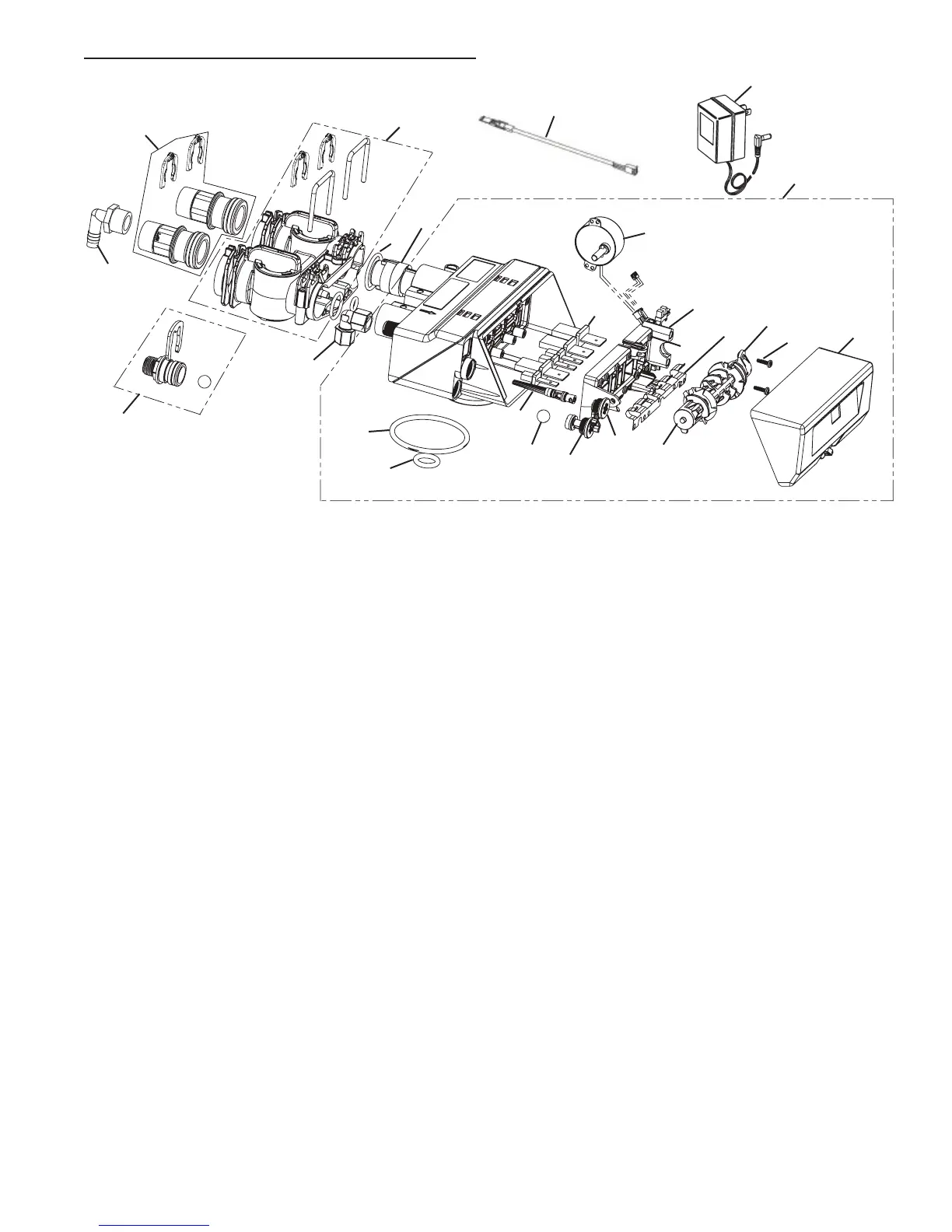

VALVE ASSEMBLY
23
24
25
OM26KCS, OM32KCS, OM36KCS DE11 • 17
