Omnimount Play 25

9 of 19
888-45-280-W-01 rev.C • 11/12
4
a
+=
Sleeve
on
Bracket
Rotation
Stop on
Bracket
Slot
in
Sleeve
b
c
Top View
NOTE: when
sliding
sleeve on
to bracket,
align slot
over rota-
tion stop.

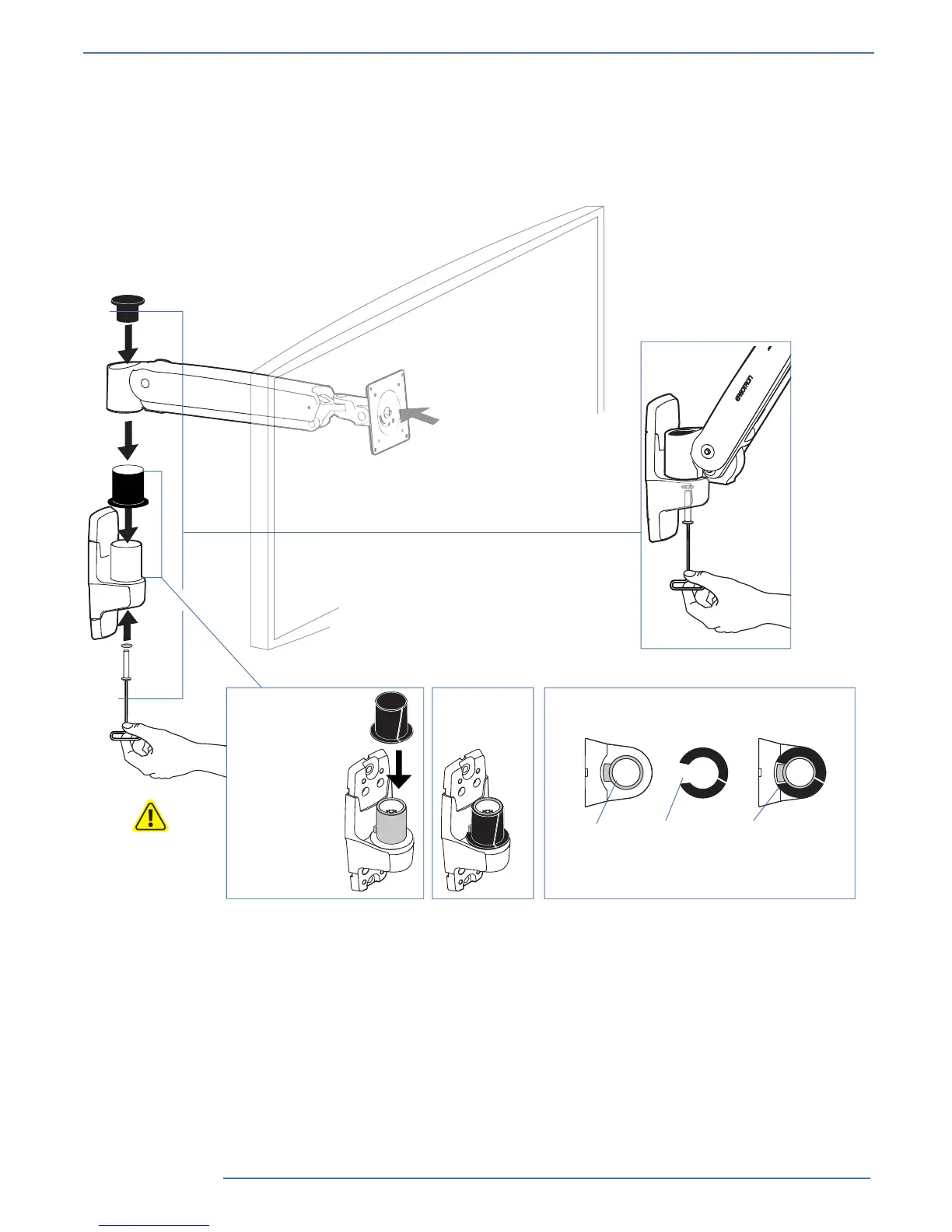

Mount arm to wall bracket.
4mm
M6
M6 x 45mm
Do Not
Overtighten
Cap Screw!
