Operate the device only after having familiarized with its functions. Do not permit operation by persons not
qualified for operating the device. Most damages are the result of unprofessional operation!
Never use solvents or aggressive detergents in order to clean the device! Rather use a soft and damp cloth.
Please use the original packaging if the device is to be transported.
Never remove the serial barcode from the device as this would make the guarantee void.
Please consider that unauthorized modifications on the speaker-system are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-
circuit, burns, electric shock, hearing loss etc.
4. DESCRIPTION
4.1 Features
6-channel microphone line mixer
• 6 inputs (3x mic/line and 3x line) for mixing to 1 stereo output
• Ideal e.g. for karaoke when microphones need to mixed with CDs
• 3 mono input channels mic/line (XLR, bal.), switchable
• 3 stereo line input channels (RCA)
• Clip LED for each microphone channel
• Each microphone input with optional 12 V phantom power
• FX send/return with FX level control
• Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
• Stereo record output (RCA)
• 19" dimensions for rack installation, 1 U

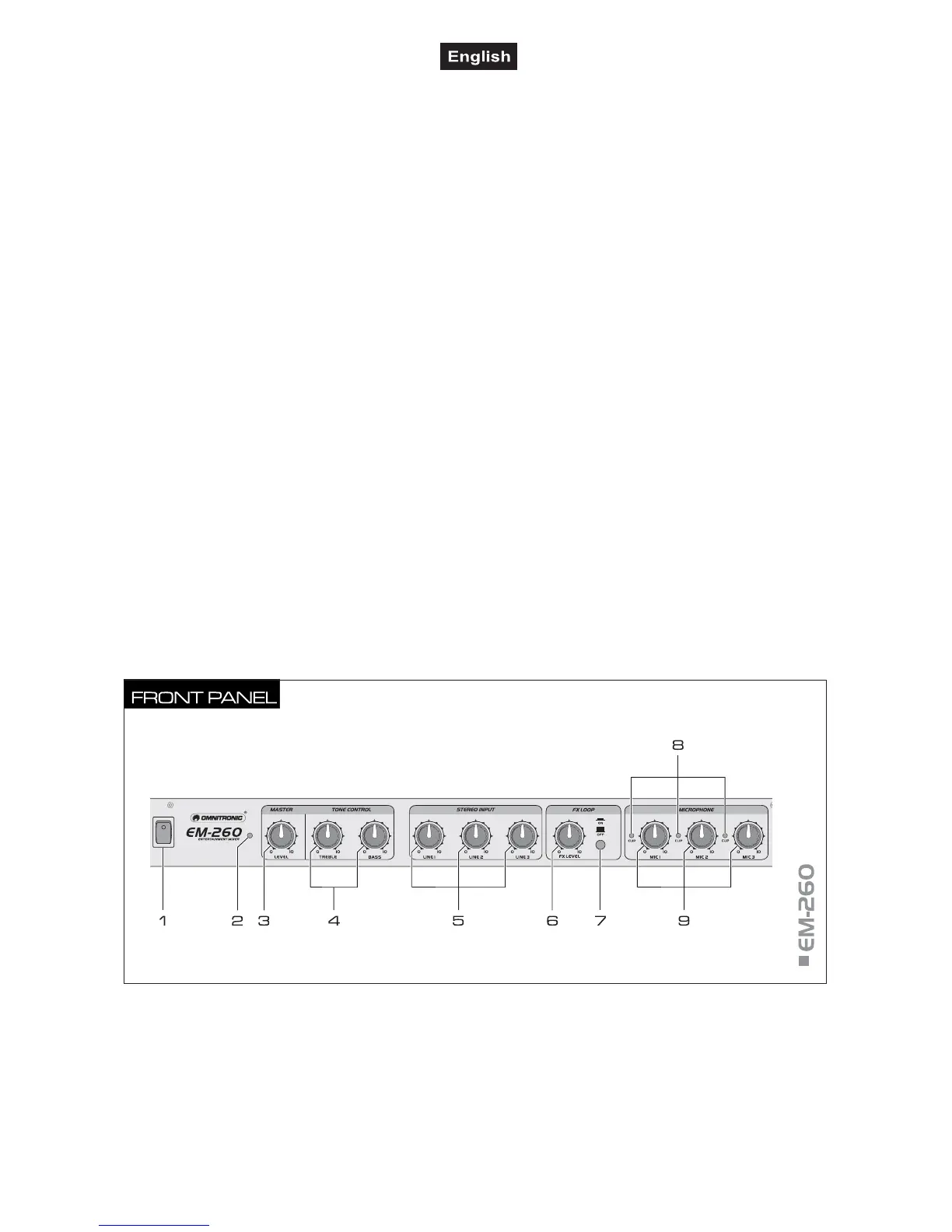

4.2 Operating elements and connections
4 Tone controls
2-band equalizer for the master output: HIGH and LOW.
5 Level controls LEVEL 1-3
Level controls for the stereo channels 1-3.
6 Control FX LEVEL
For mixing the effect signal to the master signal.
1 Power on/off
Press this button to turn the unit on and off. The powe
