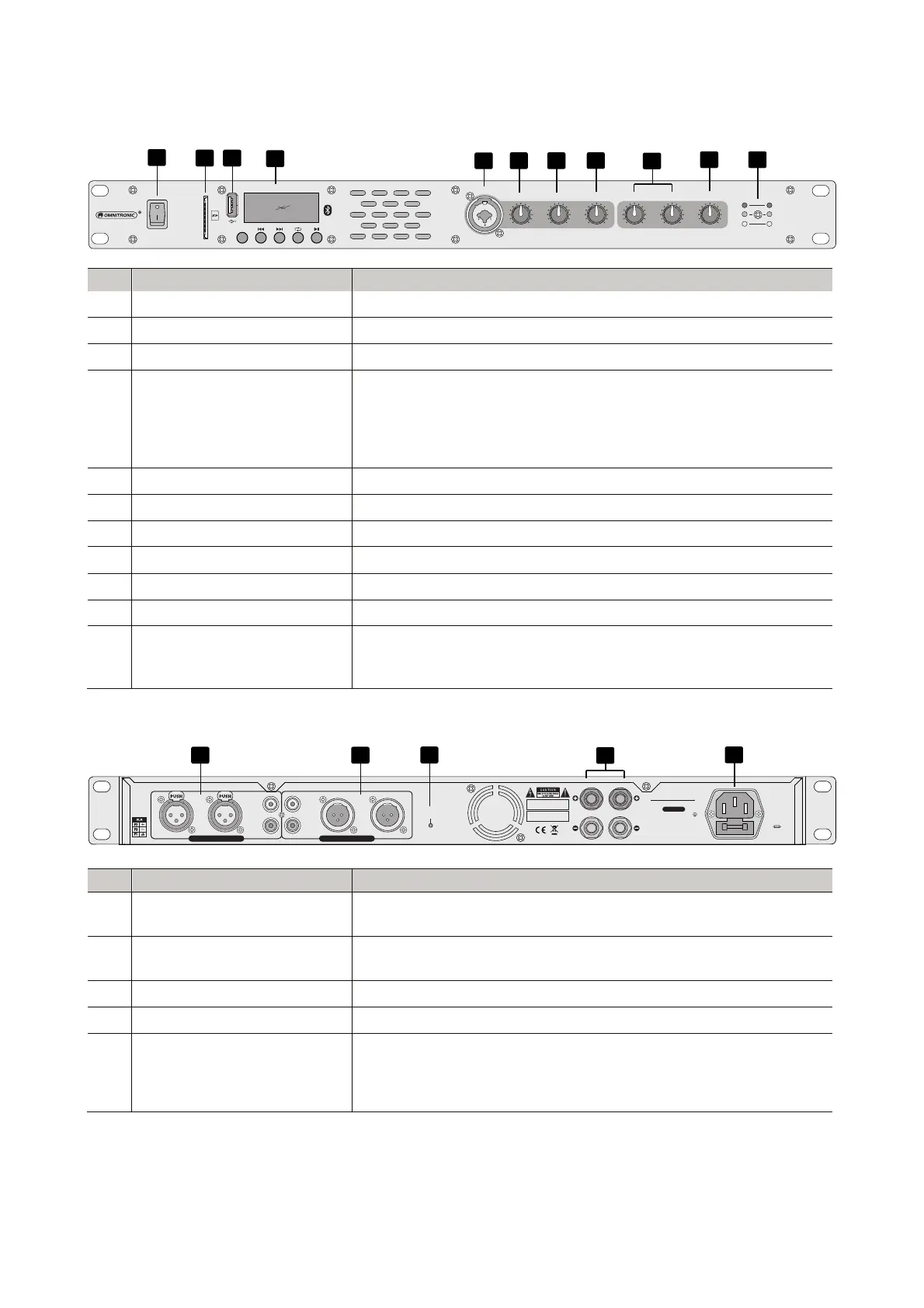

Operating Elements and Connections
Front panel
No. Element Function
1 POWER switch Turns the unit on and off
2 Memory card slot For inserting an SD(HC) card
3 USB port For inserting a USB storage medium
4 Audio player
• MODE: selects the playback source (SD card, USB or Bluetooth)
• [] and []: previous/next title (short actuation) and volume
up/down (long actuation)
• [

]: for selecting random play and repeat functions
• [ ►] : play/pause
5 MIC input Microphone input jack (combination XLR/6.3 mm jack)
6 MIC LEVEL control Adjusts the microphone volume
7 PLAYER LEVEL control Adjusts the audio player volume
8 PLAYER LEVEL control Adjusts the volume for the line input
9 TREBLE and BASS controls Adjust the high and low frequencies for the output signal
10 VOLUME control Adjusts the overall volume
11 Display LEDs
• CLIP: overload
• SIGNAL: signal indication
• POWER: power indication
Rear panel
No. Element Function
12 Input jacks Stereo XLR and RCA inputs for audio units with live level (e.g. CD
player, tuner)
13 Output jacks Stereo XLR and RCA outputs for connection to units with line level
inputs (e.g. mixer or additional amplifier)
14 Ground lift selector switch Separates signal ground and housing ground to avoid humming
15 Speaker terminals Screw terminals with 4 mm banana jacks for connecting speakers
16 AC power input with fuse
holder
Use the included power cable to connect this input to a power
outlet. Only replace the fuse when the device is disconnected from
mains. Only use fuses of the same rating and power. The correct
fuse value is specified on the rear panel.
