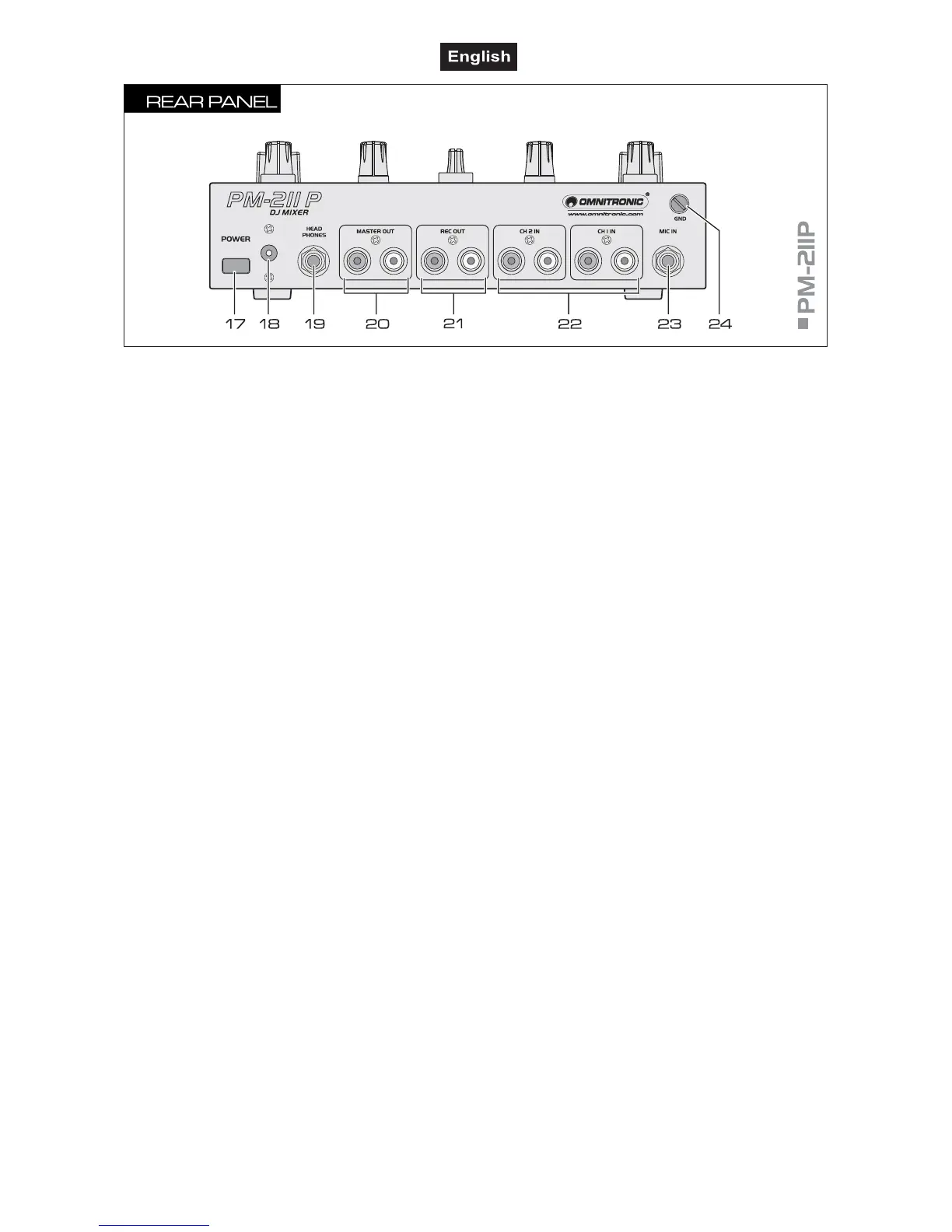

22 Line/phono inputs
Stereo inputs (RCA) for channels 1 and 2 for
connecting units with line level outputs (e. g. CD
player) or turntables with magnetic system.
With the front input selector switches the inputs can
be switched from line level to phono level.
23 Microphone input
6.3 mm jack for connecting a dynamic DJ
microphone.
24 Ground terminal
Ground clamping screw for turntables connected to
channels 1 and 2.
17 Power on/off
Turns the mixer on and off.
18 Power connection
Plug in the supplied power unit here.
19 Headphones output
6.3 mm jack for connecting stereo headphones.
20 Master output
Stereo output (RCA) for connecting an amplifier or
other units with line level input.
21 Recording output
Stereo output (RCA) for connecting a recording
unit. The recording level is independent of the
position of the master control.
