F25: 1st Stop Frequency
Output frequency
Output current
RUN command
J72: Brake Contro
l Brake-applied Timer
H180: Brake Error Detection Time
J71: Brake Control Brake-applied Frequency

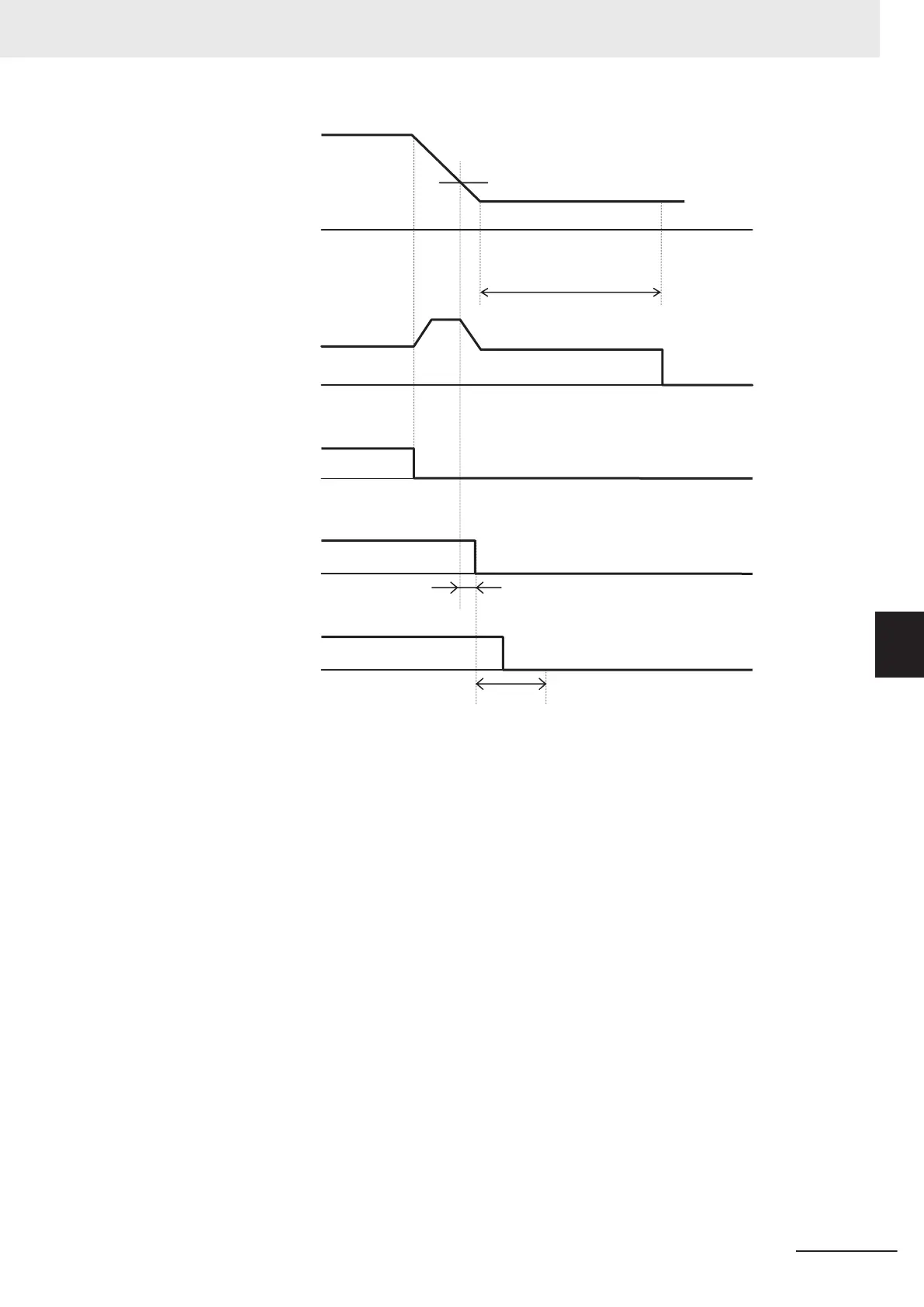

V/f control Operation time chart at stop
F39: 1st Stop Frequency
Holding Time
Brake release signal
“BRK”
Brake confirmation signal
“BOK”
6 Vector Control and Applied Functions
6-73
M1 Series Standard Type User's Manual (I669)
6-9 Brake Control Function
6
6-9-1 Operation Sequence of Brake Control Function
