R
T
S
U
V
W
+
-
2W 220 kW
VDC

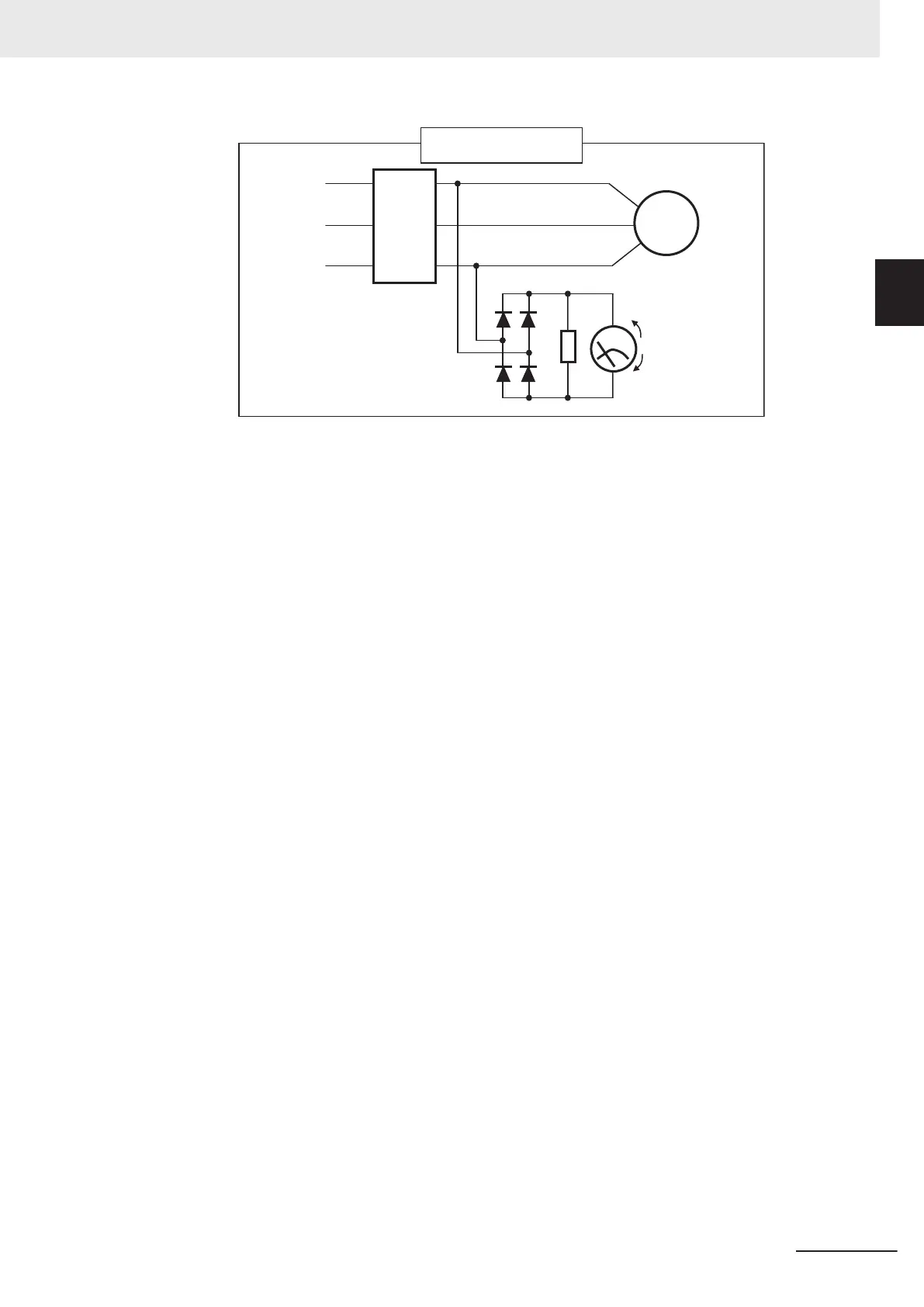

Output voltage
measurement method
Motor
Moving coil type
300 V (200-V class)
600 V (400-V class)
Effective value of fundamental wave VAC
VAC=1.1×VDC
Diode
600 V 0.1 A min. (200-V class)
1000 V 0.1 A min. (400-V class)
Inverter
10 Maintenance and Inspection
10-9
M1 Series Standard Type User's Manual (I669)
10-1 Maintenance and Inspec-
tion
10
10-1-7 I/O Voltage/Current/Electric Power Measurement Method
