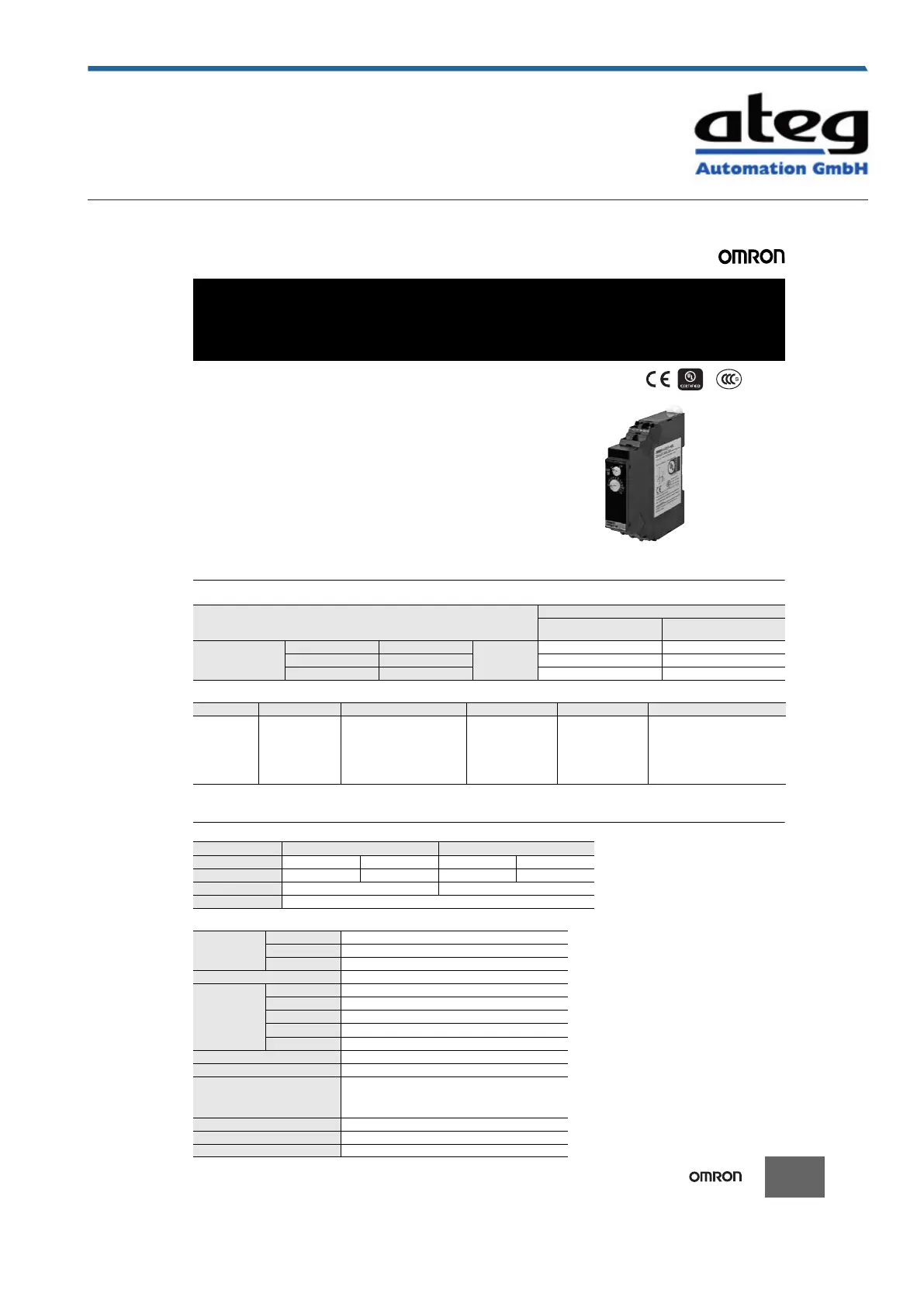

Zeitrelais H3DT
H3DT
25
Power OFF-delay Timer
H3DT-H
• Set two time ranges with each Timer, from 0.1 to 12 seconds
for the S Series and from 1.0 to 120 seconds for the L Series.
LR
*
* CSA conformance evaluation by UL.
For the most recent information on models that have been
certified for safety standards, refer to your OMRON website.
Ordering Information
List of Models
Model Structure
* Certification is pending for DNV GL.
Specifications
Time Ranges
Ratings
Operating modes Supply voltage Control output
H3DT-H
S Series
(time range: 0.1 to 12 s)
L Series
(time range: 1.0 to 120 s)
Power OFF Delay
100 to 120 VAC Contact output: SPDT
Model
H3DT-HCS H3DT-HCL
200 to 240 VAC Contact output: SPDT H3DT-HDS H3DT-HDL
24 to 48 VAC/DC Contact output: SPDT H3DT-HBS H3DT-HBL
Model Terminal block Operating/resetting method Output type Mounting method Safety standards
H3DT-H 6 terminals
Instantaneous operation/
time-limit reset
Relay, SPDT DIN Track mounting
cULus
(UL 508 CSA C22.2 No. 14)
CCC
LR
DNV GL *
EN 61812-1
IEC 60664-1 4 kV/2
S Series L Series
Time range setting x0.1 x1 x1 x10
Set time range 0.1 to 1.2 s 1 to 12 s 1 to 12 s 10 to 120 s
Power ON time 0.1 s min. 0.3 s min.
Scale numbers 12
Supply voltage
H3DT-HCS/-HCL 100 to 120 VAC, 50/60 Hz
H3DT-HDS/-HDL 200 to 240 VAC, 50/60 Hz
H3DT-HBS/-HBL 24 to 48 VAC/DC, 50/60 Hz *1
Allowable voltage fluctuation range 85% to 110% of rated voltage
Power
consumption
H3DT-HCS At 120 VAC: 8.7 VA max.
H3DT-HCL At 120 VAC: 8.8 VA max.
H3DT-HDS At 240 VAC: 21.6 VA max.
H3DT-HDL At 240 VAC: 21.7 VA max.
H3DT-HBS/-HBL At 48 VAC: 1.0 VA max., at 24 VDC: 0.4 W max.
Timer operation starting voltage 30% or less of power supply voltage
Rated Insulation Voltage 250 VAC
Control output
Contact output, 5 A at 250 VAC with resistive load (cos = 1),
5 A at 30 VDC with resistive load
Contact materials : Ag-alloy
(Recommended fuse: BLN5 (Littelfuse) or 0216005MXEP)
Ambient operating temperature 20 to 60C (with no icing)
Storage temperature 40 to 70C (with no icing)
Surrounding air operating humidity 25% to 85%
* DC ripple: 20% max.
