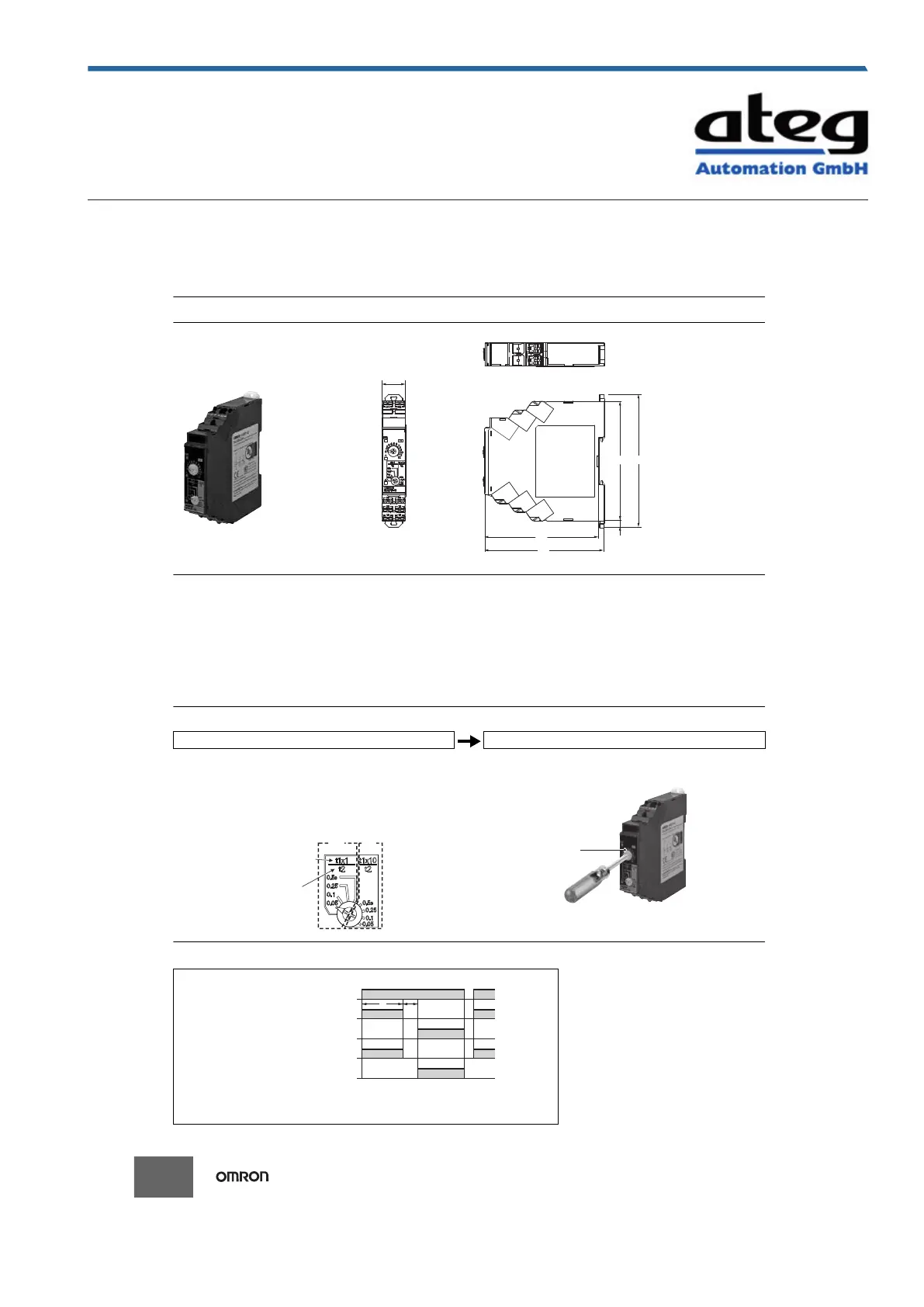

Zeitrelais H3DT
H3DT
H3DT-G
24
Dimensions (Unit: mm)
Timers
Track Mounting Products (Sold Separately)
Refer to page 29 for details.
Options (Order Separately)
Front Cover
Refer to page 29 for details.
Operating Procedures
Basic Operation
Setting the Delta Time Range (t1) and
the Star-delta Transfer Time (t2)
If the Delta Time Range (t1) is set to ✕ 1 (1 to 12 s), set the Star-delta
Transfer Time on side (A) (the side labeled t1 ✕ 1).
If the Delta Time Range (t1) is set to ✕ 10 (10 to 120 s), set the Star-
delta Transfer Time on side (B) (the side labeled t1 ✕ 10).
Setting the Time
The start time is set with the main dial.
Timing Chart
17.5
90
90
86
5
100
H3DT-G
Setting the Time Ranges
Star-delta transfer
time setting (t2)
Switches the start
time (t1) range.
(A) (B)
Setting the Time
Main dial
Note: 1. The reset time is 0.1 s min.
2. “t1” is the start set time. “t2” is the transfer time.
t1: Star time setting
t
2: Transfer time
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
t
1
t2
Power (A1 and A2)
Star contacts (15 and 18)
Delta contacts (25 and 28)
Star operation indicator
Delta operation indicator
