Datenblatt
Zeitrelais H3DT
H3DT
H3DT-N/H3DT-L
7

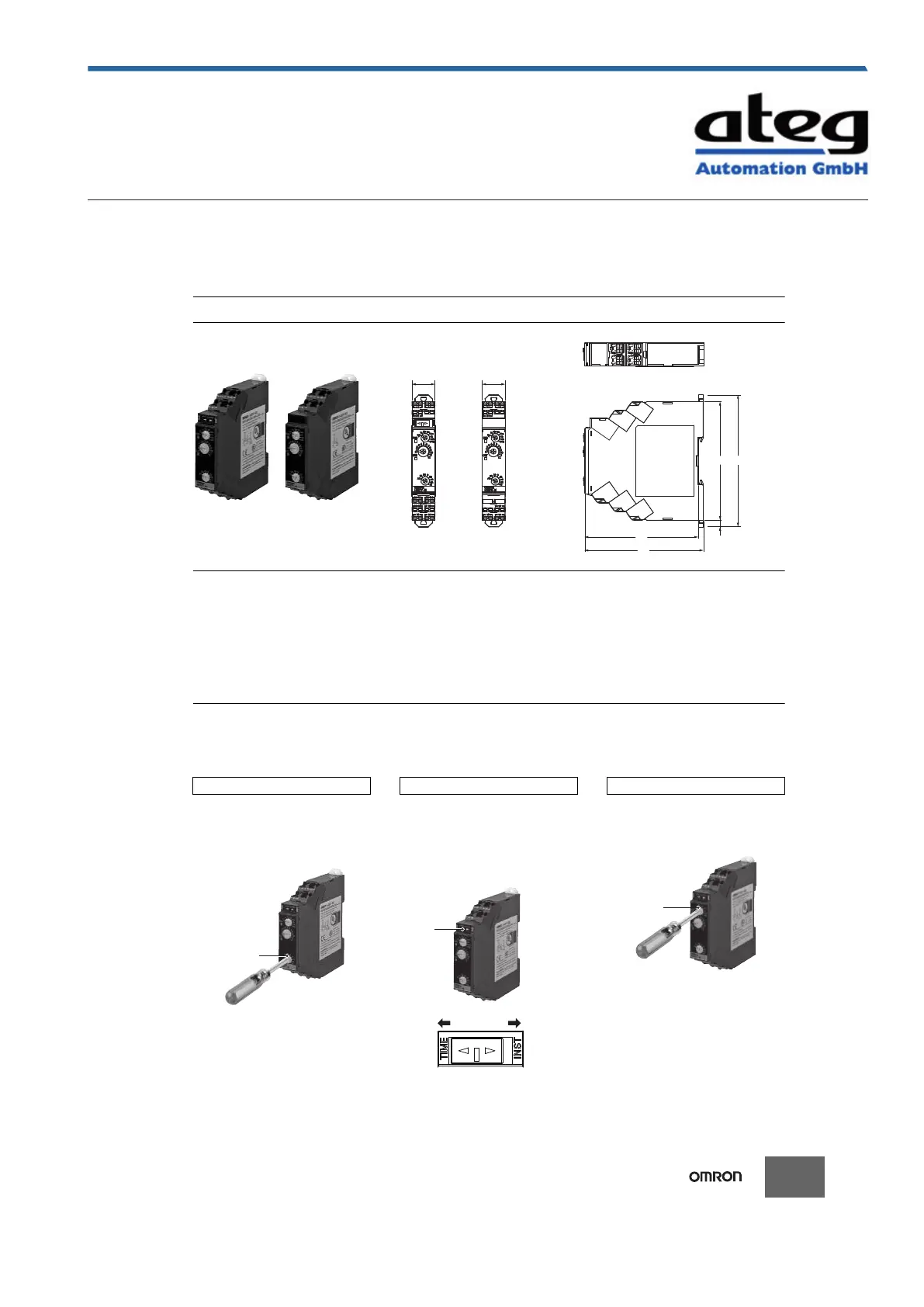

Dimensions (Unit: mm)
Timers
Track Mounting Products (Sold Separately)
Refer to page 29 for details.
Options (Order Separately)
Front Cover
Refer to page 29 for details.
Operating Procedures
Basic Operation
Setting Switches
• Each switch has a snap mechanism that secures the switch at given positions. Set the switch to one of these positions.
Do not set it midway between two positions. Malfunction could result from an improper setting.
17.5 17.5
90
90
86
5
H3DT-N2
H3DT-L2
H3DT-N1
H3DT-L1
100
H3DT-N
H3DT-L
H3DT-N2
H3DT-L2
H3DT-N1
H3DT-L1
Setting the Operating Mode
The H3DT-N/L can be set to any of eight
operating modes. Turn the operating mode
switch with a flat-blade or Phillips
screwdriver.
Switching Relay R2 between
Instantaneous and Time-limit
Contacts (H3DT-N2/-L2 Only)
The INIT/TIME switch can be used to switch
relay R2 between instantaneous and time-
limit operation.
Setting the Time Range
The time range switch can be used to set
the time range. Turn the switch with a flat-
blade or Phillips screwdriver.
Setting the Operating Mode
Operating
mode switch
Setting the INIT/TIME Switch
INIT/TIME
switch
Time-limit operation Instantaneous operation
Setting the Time Range
Time range
switch
Erstellt am 09.10.2020 um 23:38 Uhr | Alle Angaben ohne Gewähr, Irrtümer und Änderungen vorbehalten! Seite 8 von 37
