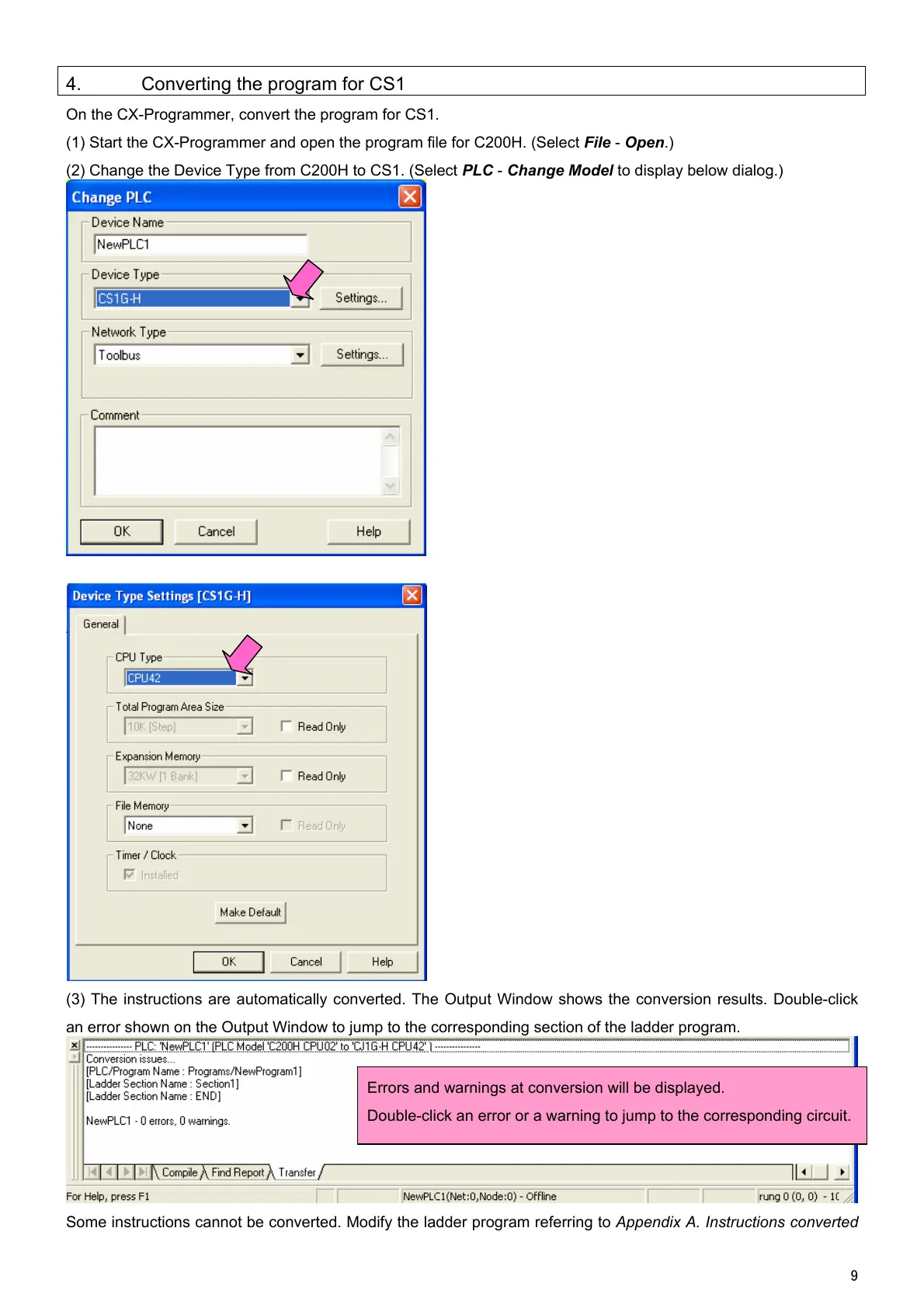

4. Converting the program for CS1
On the CX-Programmer, convert the program for CS1.
(1) Start the CX-Programmer and open the program file for C200H. (Select File - Open.)
(2) Change the Device Type from C200H to CS1. (Select PLC - Change Model to display below dialog.)
(3) The instructions are
automatically converted. The Output Window shows the conversion results. Double-click
an error shown on the Output Window to jump to the corresponding section of the ladder program.
Some instructions cannot be converted. Modify the ladder program referring to Appendix A. Instructions converted
Errors and warnings at conversion will be displayed.
Double-click an error or a warning to jump to the corresponding circuit.
󲨱
