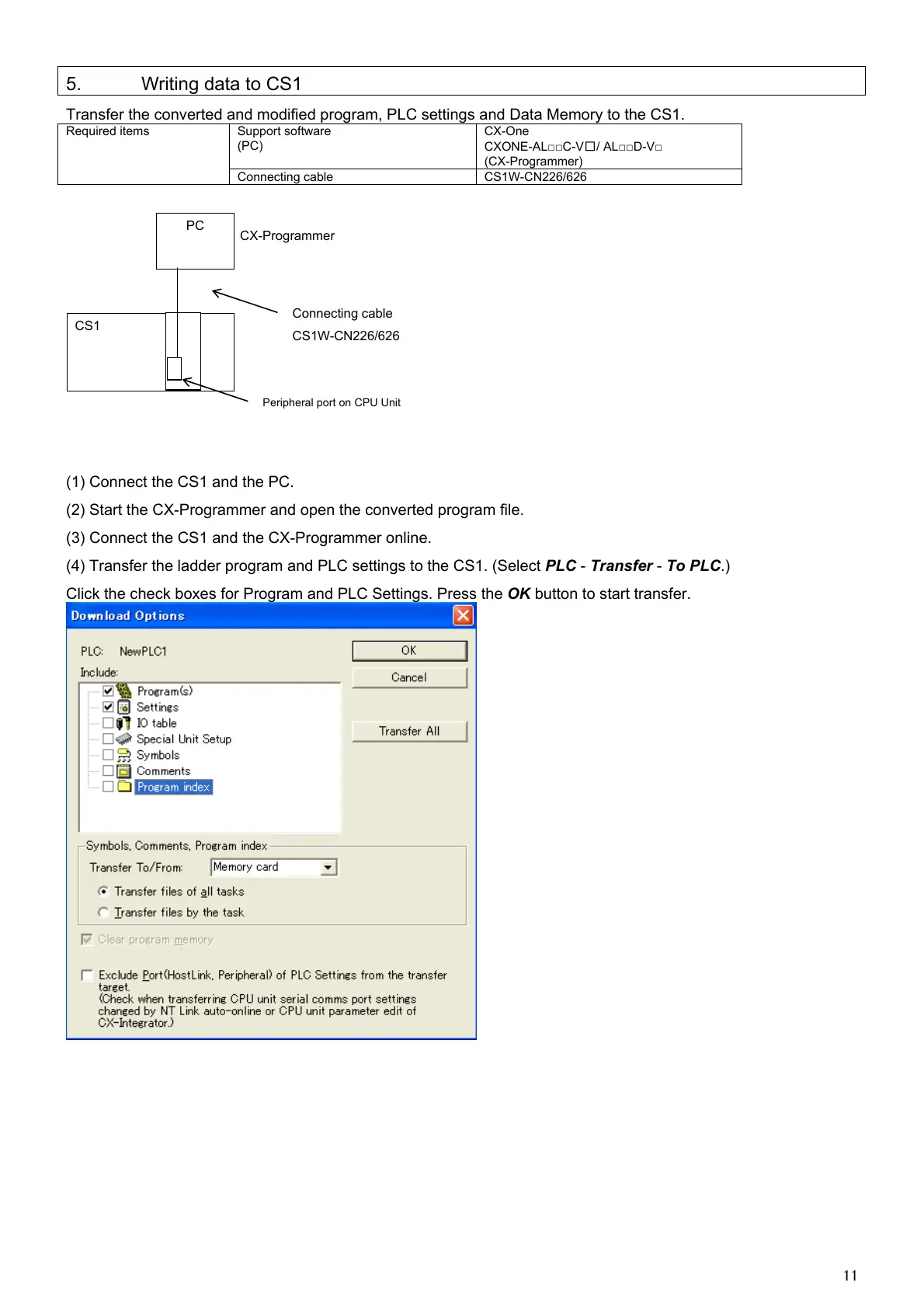

5. Writing data to CS1
Transfer the converted and modified program, PLC settings and Data Memory to the CS1.
Required items Support software
(PC)
CX-One
CXONE-AL□□C-V□/ AL□□D-V□
(CX-Programmer)
Connecting cable CS1W-CN226/626
CS1
PC
CX-Programmer
Connecting cable
CS1W-CN226/626
Peripheral port on CPU Unit
(1) Connect the CS1 and the PC.
(2) Start the CX-Programmer and open the converted program file.
(3) Connect the CS1 and the CX-Programmer online.
(4) Transfer the ladder program and PLC settings to the CS1. (Select PLC - Transfer - To PLC.)
Click the check boxes for Program and PLC Settings. Press the OK button to start transfer.
