Appendix BSpecifications
140

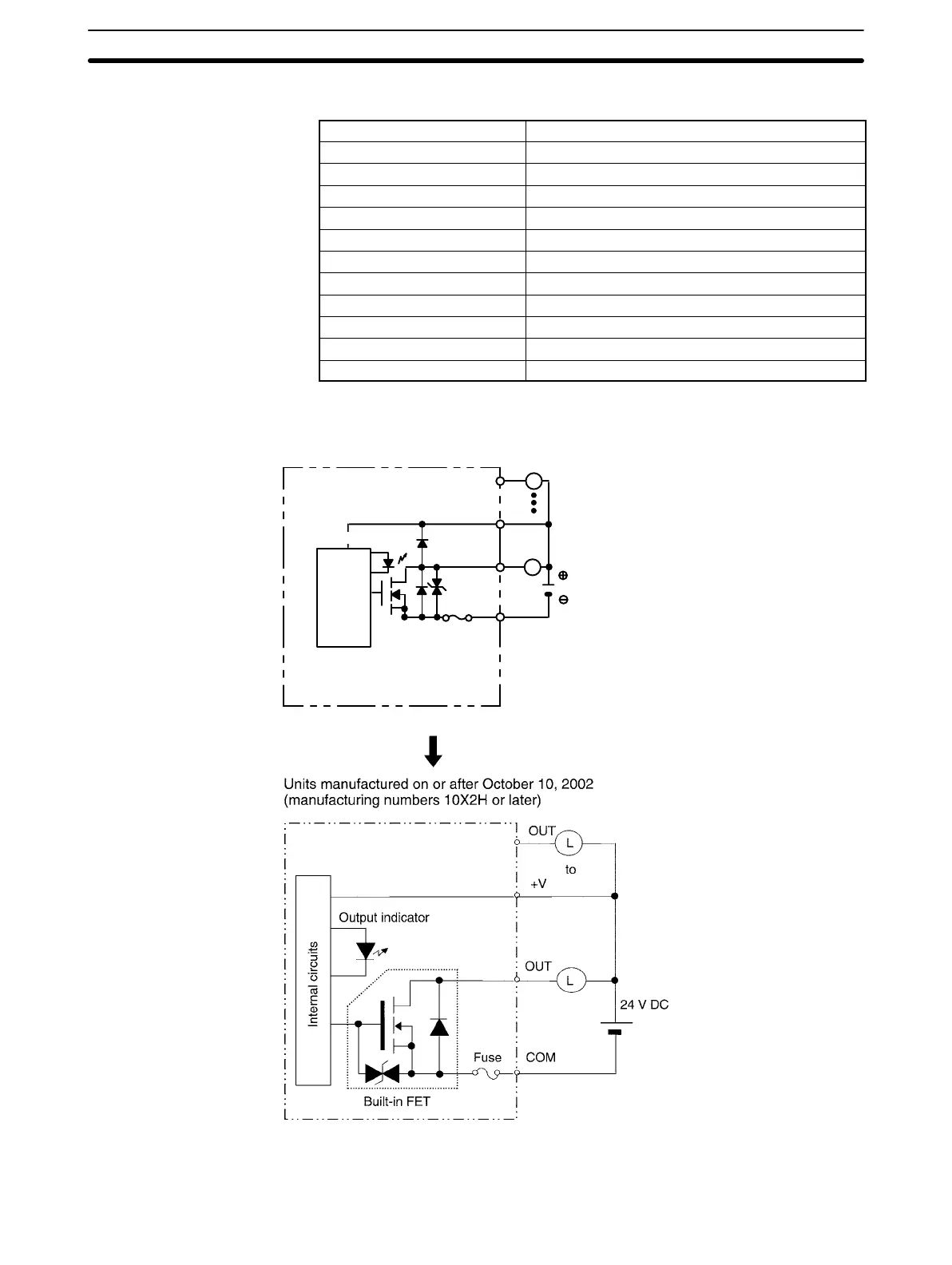

Transistor Output Unit C200H-OD212
Max. Switching Capacity 0.3 A 24 VDC
+10%
/
–15%
(4.8 A/Unit)
Min. Switching Capacity None
Leakage Current 0.1 mA max.
Residual Voltage 1.4 V max.
ON Response Time 0.2 ms max.
OFF Response Time 0.3 ms max.
No. of Circuits 1 (16 points/common)
Internal Current Consumption 180 mA 5 VDC max.
Fuse Rating 8 A 125 V (5.2-dia.x20)
Power for External Supply 35 mA 24 VDC
+10%
/
–15%
min.
Weight 350 g max.
Dimensions B-shape
Circuit Configuration
Internal
Circuit
L
OUT
COM
OUT
Output indicator
L
+ V
Fuse: UL-TSC-8A-N1 (Nagasawa)
24 VDC
Fuse
8 A 125 V 5.2-dia  20
Units manufactured on or before October 9, 2002
(manufacturing numbers 09X2 or earlier)
Note 1. No blown fuse detector circuit is provided.
2. Check the fuse when there is no output.
