9.6.7. Receive Matrix Settings
The following describes the contents of receive matrix settings.
The Mat_VR is set for the receive matrix.
Additional Information
For details on receive matrix settings, refer to 3-5 Creating Matrices of the CX-Protocol
OPERATION MANUAL (Cat. No. W344).

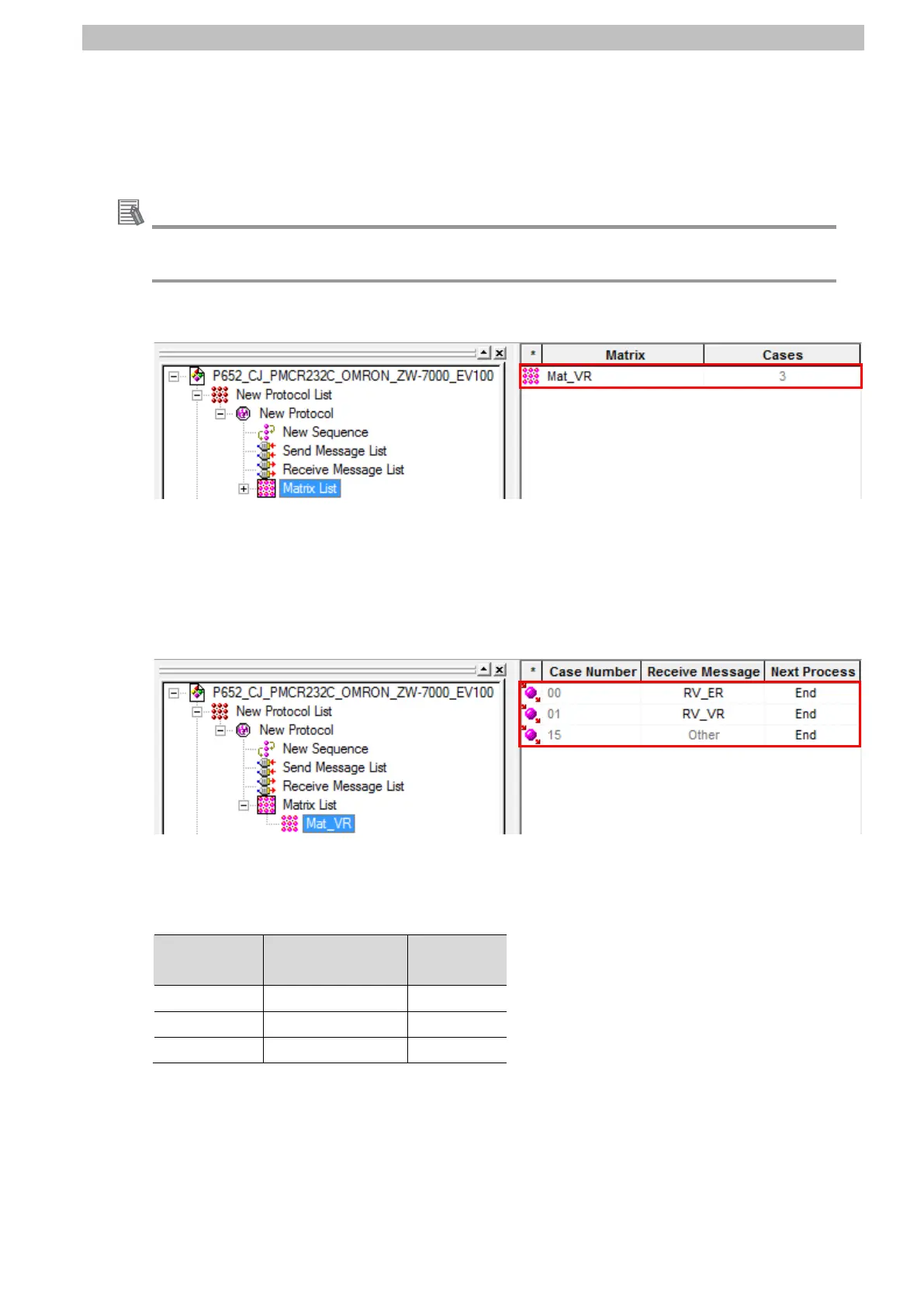

[Screenshot of receive matrix settings]
*The above screenshot shows that three cases are set for the Mat_VR receive matrix.
●Mat_VR receive matrix setting
The following shows that three case numbers 00, 01, and 15 are set.
[Screenshot of case number setting]
<Setting>
The table below shows the contents of the receive message and next process setting for
each case number.
Case No. Receive
message
Next
process
00 RV_ER End
01 RV_VR End
15 Other End
*The receive matrix performs a comparison from the receive message most meeting the
specified condition of response format in accordance with RV_ER (error message), RV_VR
(normal message), and Other (other message) in that order.
