Omron CJ Series - Sensor Controller Setup

7
．
Serial Communications Connection Procedure
12
7.2. Sensor Controller Setup
Set up Sensor Controller.
7.2.1. Hardware Settings
Connect cables and others to Sensor Controller.
Precautions for Correct Use
Make sure that the power supply is OFF when you set up.
1
Make sure that Sensor
Controller is powered OFF.
*If it is ON, the settings
described in the following steps
and subsequent procedures
may not be applicable.
2

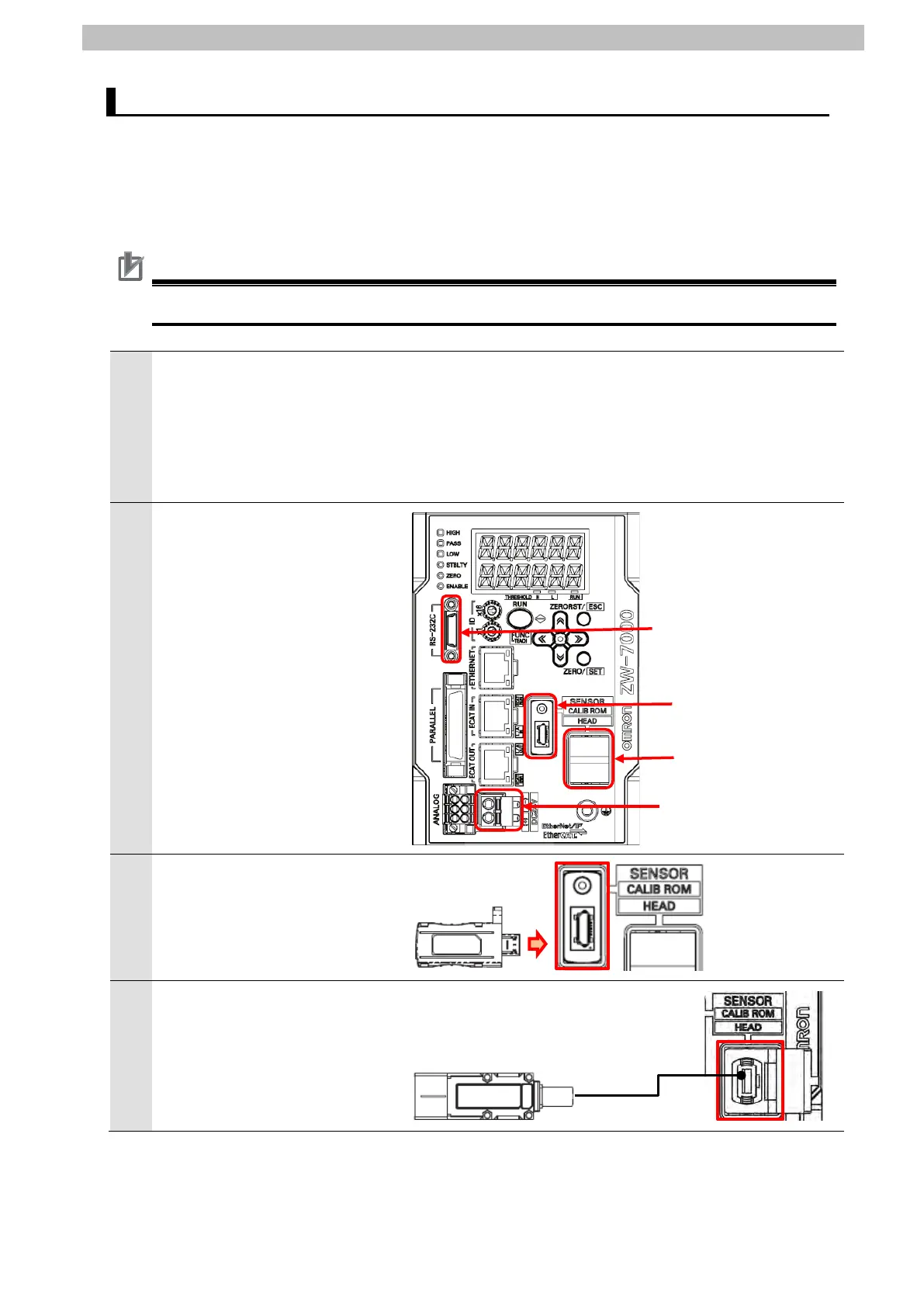

Check the position of
connectors on Sensor Controller
by referring to the figure on the
right.
3
Connect the calibration ROM to
ROM connector.
4
Connect Fiber connector on
Sensor Head to Fiber adapter.
Fiber adapter
ROM connector
RS-232C connector
24 V input terminal
block
