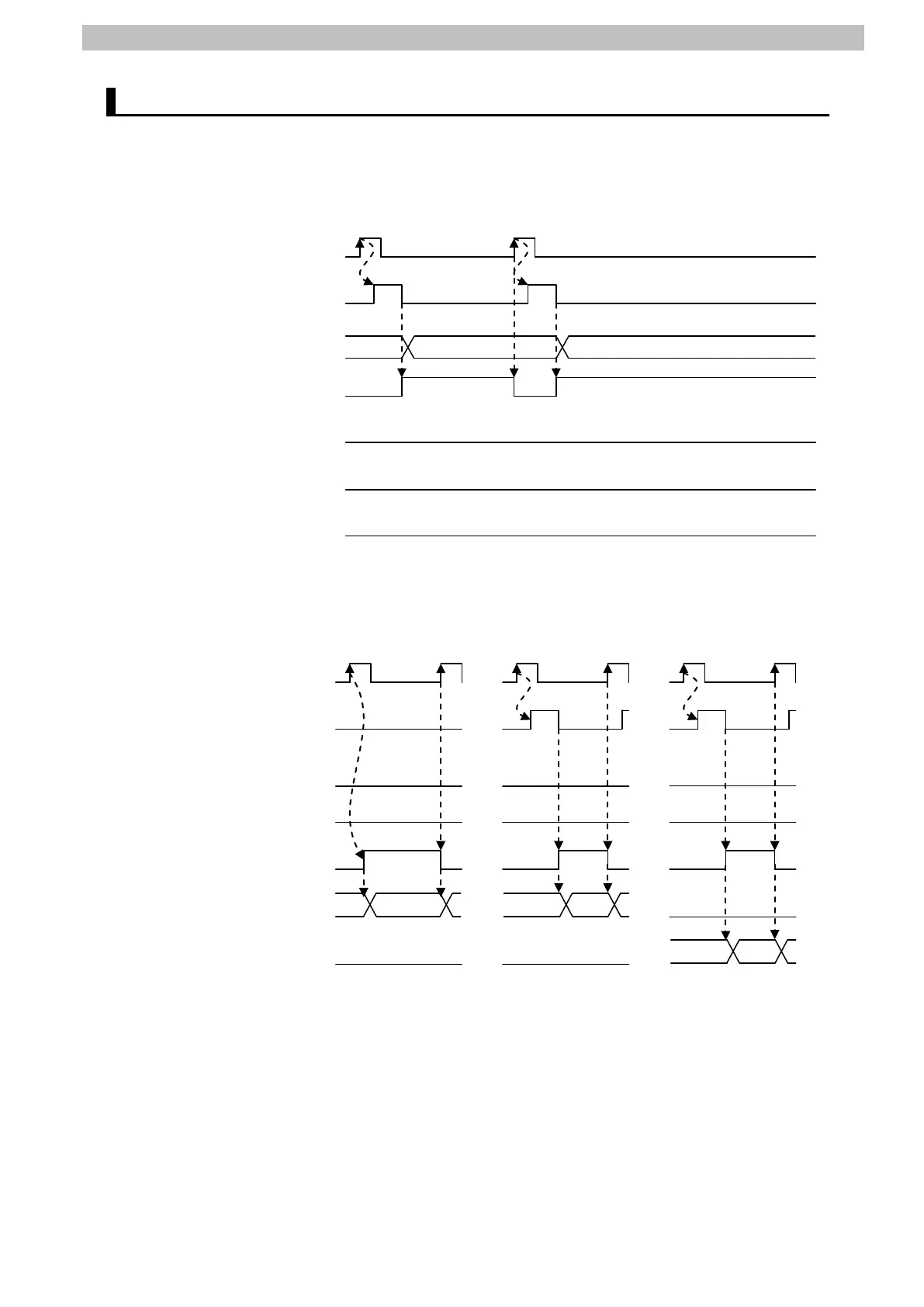

9.7. Timing Chart
The timing charts are shown below.
●Normal end
Local_PMCRExecuting
(5000.01)
Receive data storage area
(From 5501)
Output_N
ormalEnd
(5000.02)
Input_Start
(5000.00)
Output_ErrorEnd
(5000.03)
Output_PMCR_ErrorCode
(H400)
Output_DestinationDevice
ErrorCode (H402)
#0000
#0000
Normal response
Normal response
●Error end
Local_PMCRExecuting
(5000.01)
Receive data storage
area (From 5501)
Output_NormalEnd
(5000.02)
Input_Start
(5000.00)
Output_ErrorEnd
(5000.03)
Output_PMCR_ErrorCode
(H400)
Output_DestinationDevice
ErrorCode (H402)
Error end (1)
PMCR instruction error
#0002 to 4
#0000
Error end (3)
Destination Device Error
#0000
#xxxx
Error end (2)
Communications error
#000F
#0000
