19

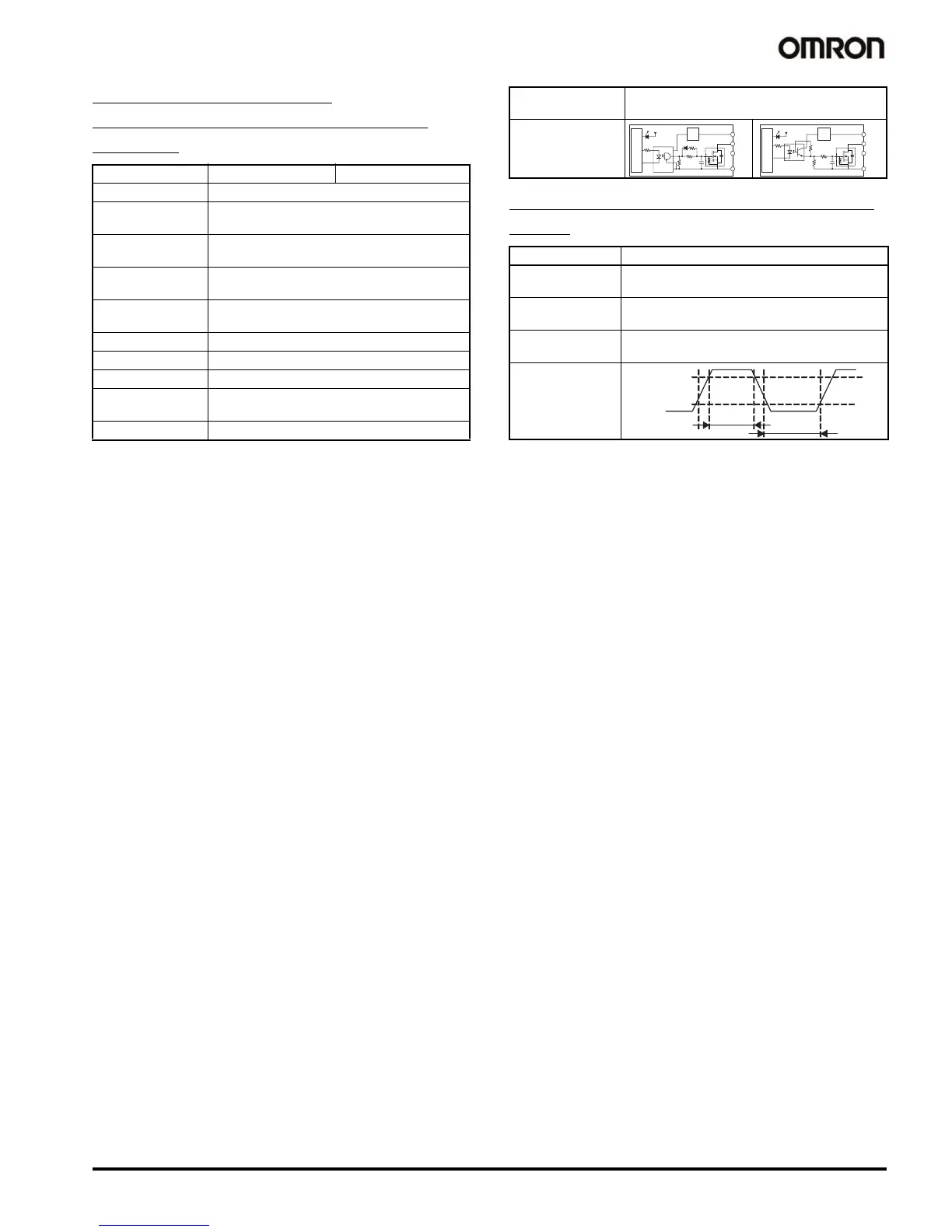

General-purpose Output
Specifications: Transistor Outputs
(Sinking)
Pulse Output Specifications (OUT0 to
OUT3)
Outputs OUT0 to OUT3 OUT4 to OUT5
Rated voltage 5 to 24 VDC
Allowable voltage
range
4.75 to 26.4 V
Maximum switch-
ing current
0.3 A per point, 1.8 A per Unit
Outputs per com-
mon
6 points
Maximum inrush
current
3.0 A per point for 10 ms max.
Leakage current 0.1 mA max.
Residual voltage 0.6 V max.
ON response time 0.1 ms max.
OFF response
time
0.1 ms max.
Fuse None
External power
supply
10.2 to 26.4 VDC, 50 mA min.
Circuit configura-
tion
Item Specification
Maximum switch-
ing capacity
30 mA, 4.75 to 26.4 VDC
Minimum switch-
ing capacity
30 mA, 4.75 to 26.4 VDC
Maximum output
frequency
100 kHz
Output waveform
OUT0
COM
Low-
voltage
circuit
+V
Internal circuit
OUT3
to
OUT4
COM
Low-
voltage
circuit
+V
Internal circuit
OUT5
to
90%
10%
2 µs min.
4 µs min.
ON
OFF
