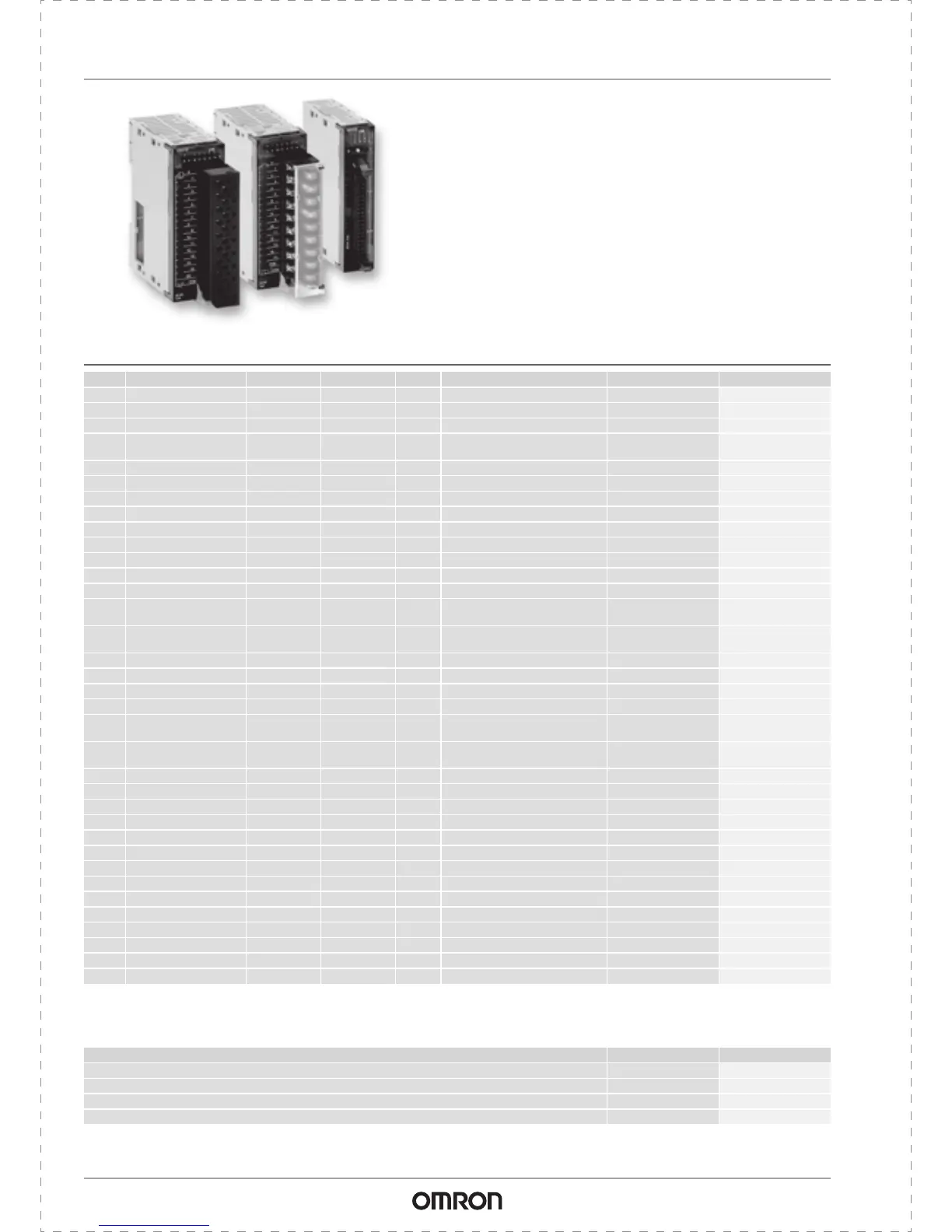

CJ-Series digital I/O units
Modular PLC
8 to 64 points per unit – input, output or
mixed
Digital I/O units serve as the PLC's interface to achieve fast, reliable sequence
control. A full range of units, from high-speed DC inputs to relay outputs, let you adapt
CJ1 to your needs.
CJ1 units are available with various I/O densities and connection technologies. Up to
16 I/O points can be wired to units with detachable M3 screw terminals or screwless
clamp terminals. High-density 32- and 64- point I/O units are equipped with standard
40-pin flat cable-connectors. Prefabricated cables and wiring terminals are available
for easy interfacing to high-density I/O units.
Ordering information
Note: All digital I/O unit are designated as basic I/O units.
Accessories
Points Type Rated voltage Rated current Width Remarks Connection type
*1
*1
MIL = connector according to MIL-C-83503 (compatible with DIN 41651/IEC 60603-1).
Order code
16 AC input 120 VAC 7 mA 31 mm – M3 CJ1W-IA111
8 AC input 240 VAC 10 mA 31 mm – M3 CJ1W-IA201
8 DC input 24 VDC 10 mA 31 mm – M3 CJ1W-ID201
16 DC input 24 VDC 7 mA 31 mm – M3
Screwless
CJ1W-ID211
CJ1W-ID211(SL)
16 DC input 24 VDC 7 mA 31 mm Fast-response (15 μs ON, 90 μs OFF) M3 CJ1W-ID212
16 DC input 24 VDC 7 mA 31 mm Inputs start interrupt tasks in PLC program M3 CJ1W-INT01
16 DC input 24 VDC 7 mA 31 mm Latches pulses down to 50 μs pulse width M3 CJ1W-IDP01
32 DC input 24 VDC 4.1 mA 20 mm – 1 x Fujitsu CJ1W-ID231
32 DC input 24 VDC 4.1 mA 20 mm – 1 x MIL
*1
(40 pt) CJ1W-ID232
32 DC input 24 VDC 4.1 mA 20 mm Fast-response (15 μs ON, 90 μs OFF) 1 x MIL
*1
(40 pt) CJ1W-ID233
64 DC input 24 VDC 4.1 mA 31 mm – 2 x Fujitsu CJ1W-ID261
64 DC input 24 VDC 4.1 mA 31 mm – 2 x MIL
*1
(40 pt) CJ1W-ID262
8 Triac output 250 VAC 0.6 mA 31 mm – M3 CJ1W-OA201
8 Relay output 250 VAC 2A 31 mm – M3
Screwless
CJ1W-OC201
CJ1W-OC201(SL)
16 Relay output 250 VAC 2A 31 mm – M3
Screwless
CJ1W-OC211
CJ1W-OC211(SL)
8 DC output (sink) 12 to 24 VDC 2A 31 mm – M3 CJ1W-OD201
8 DC output (source) 24 VDC 2A 31 mm With short-circuit protection, alarm M3 CJ1W-OD202
8 DC output (sink) 12 to 24 VDC 0.5 A 31 mm – M3 CJ1W-OD203
8 DC output (source) 24 VDC 0.5 A 31 mm With short-circuit protection, alarm M3 CJ1W-OD204
16 DC output (sink) 12 to 24 VDC 0.5 A 31 mm – M3
Screwless
CJ1W-OD211
CJ1W-OD211 (SL)
16 DC output (source) 24 VDC 0.5 A 31 mm With short-circuit protection, alarm M3
Screwless
CJ1W-OD212
CJ1W-OD212 (SL)
16 DC output (sink) 24 VDC 0.5 A 31 mm Fast-response (15 μs ON, 80 μs OFF) M3 CJ1W-OD213
32 DC output (sink) 12 to 24 VDC 0.5 A 20 mm – 1 x Fujitsu CJ1W-OD231
32 DC output (source) 24 VDC 0.3 A 20 mm With short-circuit protection, alarm 1 x MIL
*1
(40 pt) CJ1W-OD232
32 DC output (sink) 12 to 24 VDC 0.5 A 20 mm – 1 x MIL
*1
(40 pt) CJ1W-OD233
32 DC output (sink) 24 VDC 0.5 A 20 mm Fast-response (15 μs ON, 80 μs OFF) 1 x MIL
*1
(40 pt) CJ1W-OD234
64 DC output (sink) 12 to 24 VDC 0.3 A 31 mm – 2 x Fujitsu CJ1W-OD261
64 DC output (source) 24 VDC 0.3 A 31 mm – 2 x MIL
*1
(40 pt) CJ1W-OD262
64 DC output (sink) 12 to 24 VDC 0.3 A 31 mm – 2 x MIL
*1
(40 pt) CJ1W-OD263
16 +16 DC in+out (sink) 24 VDC 0.5 A 31 mm – 2 x Fujitsu CJ1W-MD231
16 +16 DC in+out (source) 24 VDC 0.5 A 31 mm – 2 x MIL
*1
(20 pt) CJ1W-MD232
16 +16 DC in+out (sink) 24 VDC 0.5 A 31 mm – 2 x MIL
*1
(20 pt) CJ1W-MD233
32 +32 DC in+out 24 VDC 0.3 A 31 mm – 2 x Fujitsu CJ1W-MD261
32 +32 DC in+out (sink) 24 VDC 0.3 A 31 mm – 2 x MIL
*1
(40 pt) CJ1W-MD263
32 +32 DC in+out (TLL) 5 VDC 35 mA 31 mm – 2 x MIL
*1
(40 pt) CJ1W-MD563
Description Connection type Order code
Replacement 18-point screwless terminal blocks for I/O units, pack of 5 pcs. Screwless CJ-WM01-18P-5
Replacement 18-point screw terminal blocks for I/O units, pack of 5 pcs. M3 CJ-OD507-18P-5
I/O terminal block (40×M3 screw) for XW2Z-_ _ _ K MIL (40pt) XW2D-40G6
Connection cable between I/O terminal block and I/O unit ( _ _ _ = length in cm) MIL (40pt) XW2Z-_ _ _K
