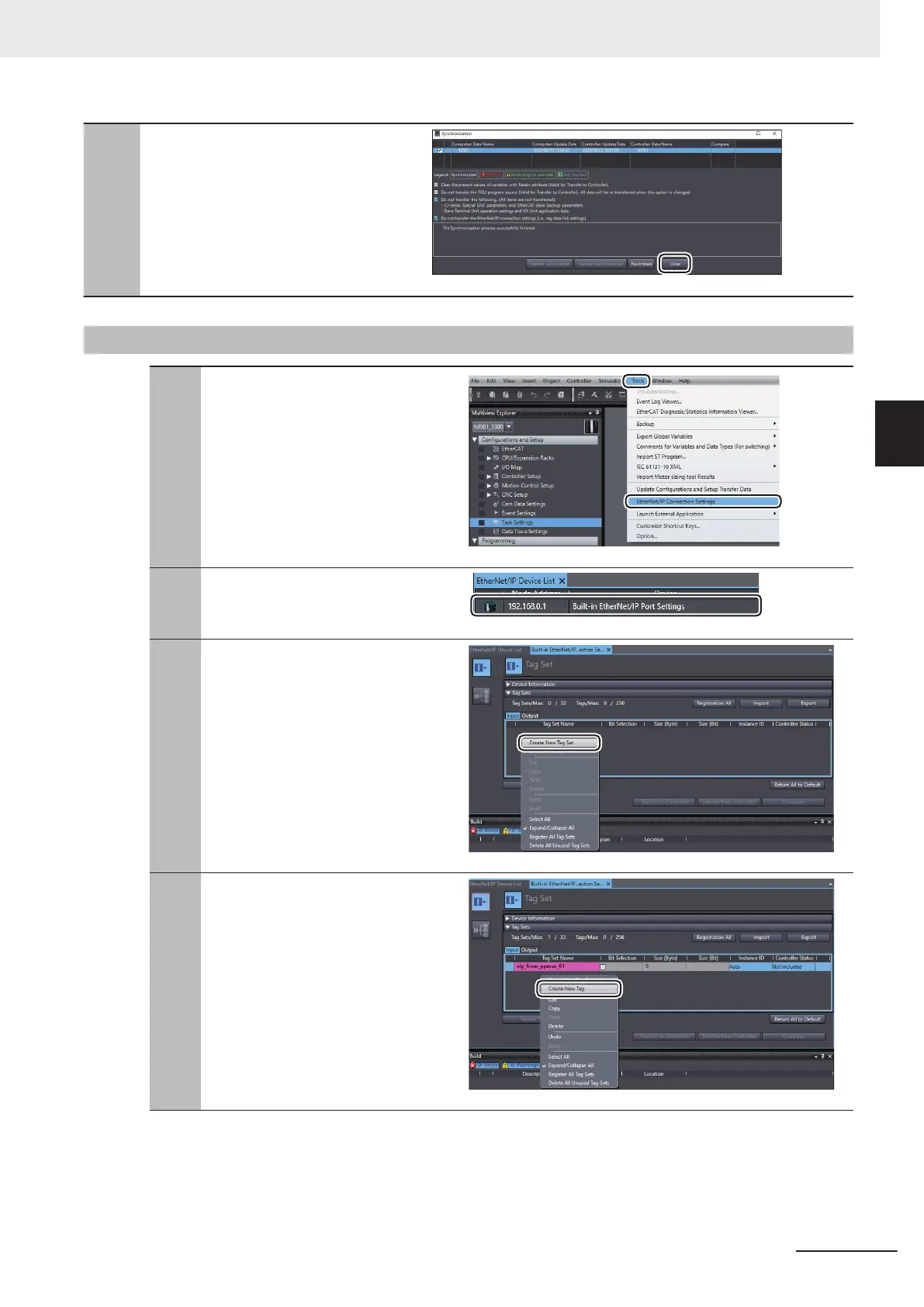

• The transfer is successful if the The
Synchronization process successfully
finished. message is displayed. Click the
Close button.
3-2-5
Setting EtherNet/IP (Tag Sets)
1
Select EtherNet/IP Connection
Settings
from the
Tools menu.
2
Double-click the row that contains
192.168.0.1.
3
Setting the input tag sets
Right-click on the Input tab page and
select Create New T
ag Set
from the
menu.
Enter eip_from_ppmac_01 as the tag
set name.
4
Setting the input tags
Right-click on the Input tab page and
select Create New T
ag
from the menu.
Enter eip_from_ppmac_01 as the tag
name.
Similarly, create the subsequent tag
sets and tags up to
eip_from_ppmac_16.
3 EtherNet/IP Connection Procedures
3-9
CK3E/CK3M/CK5M Series EtherNet/IP Connection Guide (O903)
3-2 NJ/NX-series CPU Unit Settings
3
3-2-5 Setting EtherNet/IP (Tag Sets)
