Omron CP1 - Page 8

6

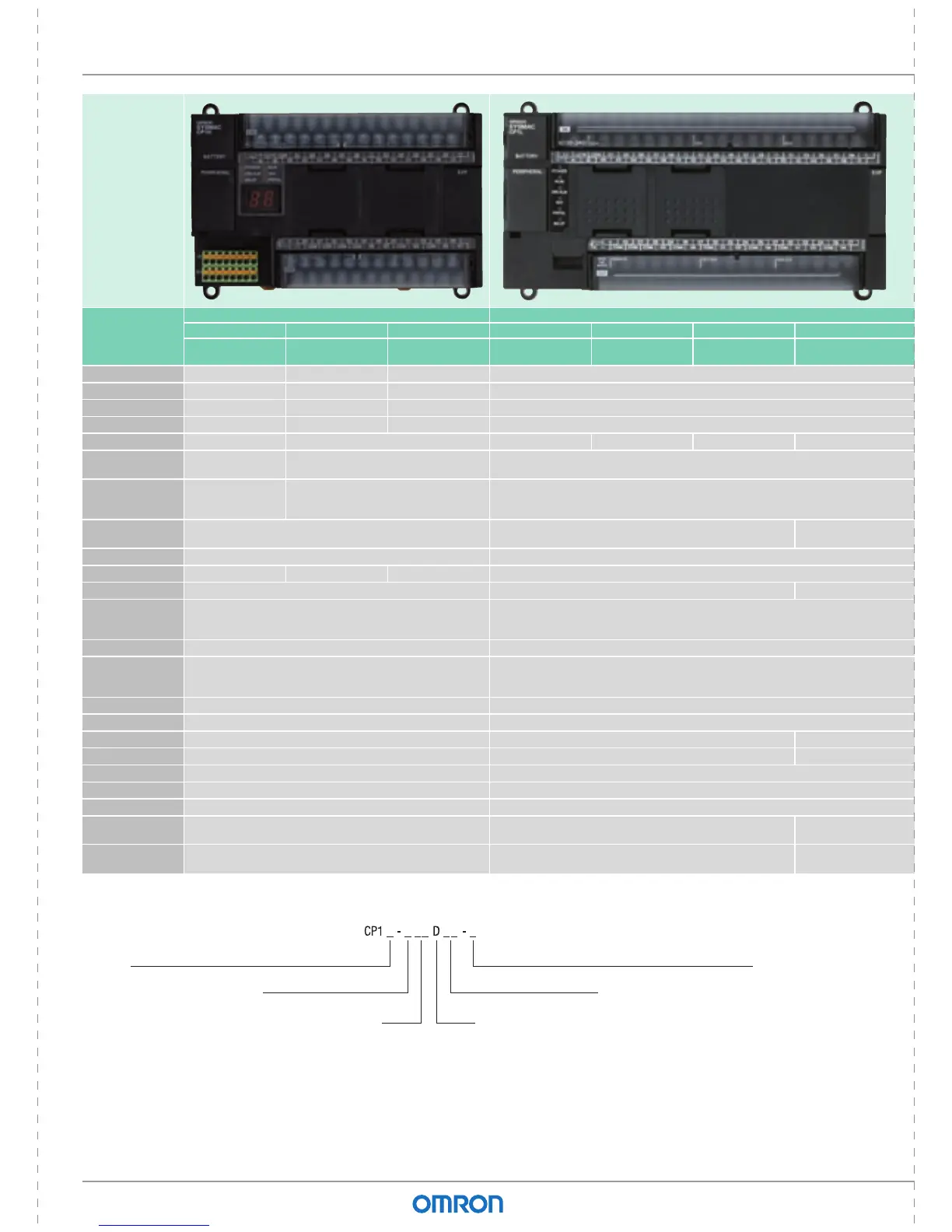

Maximize efficiency by selecting the optimum CPU unit for your applications
Part number diagram
CP1H CP1L
CP1H-Y20DT-D CP1H-XA40D_-_ CP1H-X40D_-_ CP1L-M60D_-_ CP1L-M40D_-_ CP1L-M30D_-_ CP1L-L20D_-_
12 Inputs
8 Outputs
24 Inputs
16 Outputs
24 Inputs
16 Outputs
36 Inputs
24 Outputs
24 Inputs
16 Outputs
18 Inputs
12 Outputs
12 Inputs
8 Outputs
AC Power Supply No Yes Yes Yes
DC Power Supply Yes Yes Yes Yes
Relay Outputs No Yes (AC model only) Yes (AC model only) Yes
Transistor Outputs Yes (NPN/Sinking only) Yes (DC model only) Yes (DC model only) Yes
I/O Capacity 300 320 180 160 150 60
High Speed Inputs 4
1 MHz maximum
*1
*1
This table is a general overview only. See specifications for more information
4
100 kHz maximum
*1
4
100 kHz maximum
*1
Pulse Outputs 4 axes
1 MHz maximum
*1
4 axes
100 kHz maximum
*1
2 axes
100 kHz maximum
*1
Transistor output models only
Serial Communications Two serial ports can be added Two serial ports can be added One serial port can be added
LCD Option Board Yes Yes
Built-in Analog I/O No 4 inputs, 2 outputs No No
Analog Adjuster Yes (x1) Yes (x1) Yes (x1)
External Analog Settings
Input
(256 Resolution)
Yes Yes
Memory Cassette Yes Yes
Function Blocks
(ladder diagrams or ST
language)
Yes Yes
Inverter Positioning No Yes
7-Segment Display Yes No
Program Capacity 20K Steps 10K Steps 5K Steps
Data Memory Capacity 32K Words 32K Words 10K Words
Processing Speed 0.1 μs/LD instruction, 0.3 μs/MOV instruction 0.55 μs/LD instruction, 1.84 μs/MOV instruction
Real-Time Clock Yes Yes
Removable Terminals Yes Yes
CP1W/CPM1A Expansion
Units
Yes (maximum 7 or 15 input words/15 output words) Yes (maximum 3) Yes (maximum 1)
CJ-Series Special I/O and
CPU Bus Units
Yes (maximum 2) No No
Series
H
L
E
Program capacity
Y: 20K steps
X: 20K steps
M: 10K steps
L: 5K steps
N: 8K steps
E: 2K steps
Number of built-in
normal I/O points
60: 60 I/O points
40: 40 I/O points
30: 30 I/O points
20: 20 I/O points
14: 14 I/O points
10: 10 I/O points
Power supply
A: AC
D: DC
Output classification
R: Relay Outputs
T: Transistor outputs
(sinking)
T1: Transistor outputs
(sourcing)
Input classification
D: DC inputs
NOTE: Not all combinations may be possible. See manual for details.
