Omron CP1L Brochure

CP1L-L
• CPU with 14 or 20 digital I/O built-in
• Expandable up to 60 I/O points (1 unit)
• USB port + 1 optional serial port
• 5 Ksteps user memory
• 0.6 μs instruction speed
• 4 encoder inputs (100 kHz)
• 2 pulse outputs (100 kHz)
CP1L-M
• CPU with 30 or 40 digital I/O built-in
• Expandable up to 160 I/O points (3 units)
• USB port + 2 optional serial ports
• 10 Ksteps user memory
• 0.6 μs instruction speed
• 4 encoder inputs (100 kHz)
• 2 pulse outputs (100 kHz)
CP1H
• CPU with 40 digital I/O and (optional)
analogue I/O (4in/2Out) built-in
• Expandable up to 320 I/O points (7 units)
• USB port + 2 optional serial ports
• 20 Ksteps user memory
• 0.1 μs instruction speed
• 4 encoder inputs (2 x 1 MHz + 2 x 100 kHz)
• 4 pulse outputs (2 x 1 MHz + 2 x 100 kHz)

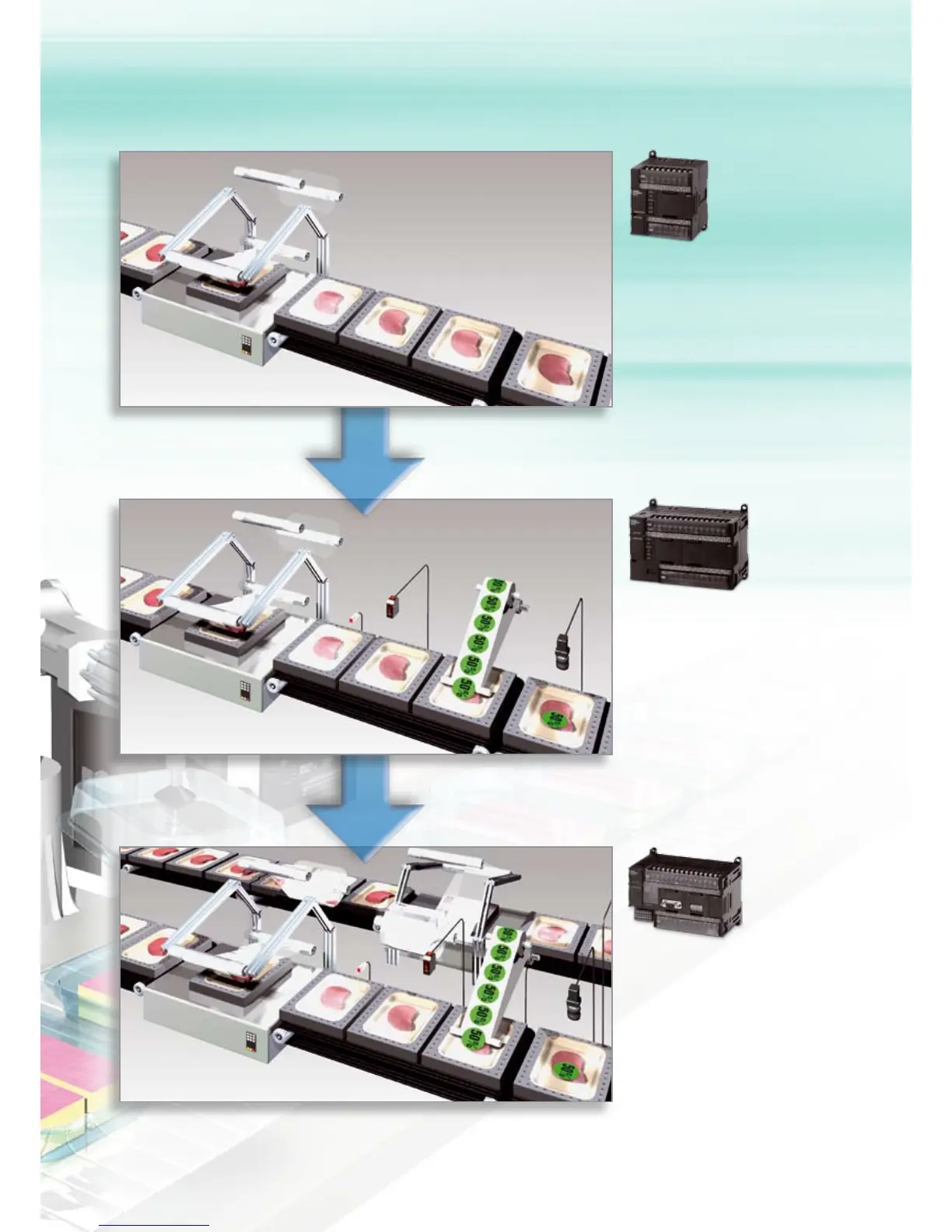

Prepared for future growth
Expansion of needs
Expansion of needs

Omron CP1L Specifications

General

Model	CP1L
Data Memory Capacity	32K words
Program Capacity	10K steps
Communication Ports	USB, RS-232C
Expansion	I/O
Pulse Output	100 kHz
Built-in I/O	Digital I/O
Expansion Slots	Supports up to 3 expansion units
Operating Voltage	100-240 VAC or 24 VDC (varies by model)
Operating Temperature	55 degrees Celsius
Storage Temperature	75 degrees Celsius
Vibration Resistance	10 to 57 Hz, 0.075 mm amplitude
Shock Resistance	147 m/s^2, 3 times in X, Y, and Z directions
