Omron CPM1A

A--30
Micro Programmable Controller
CPM1A

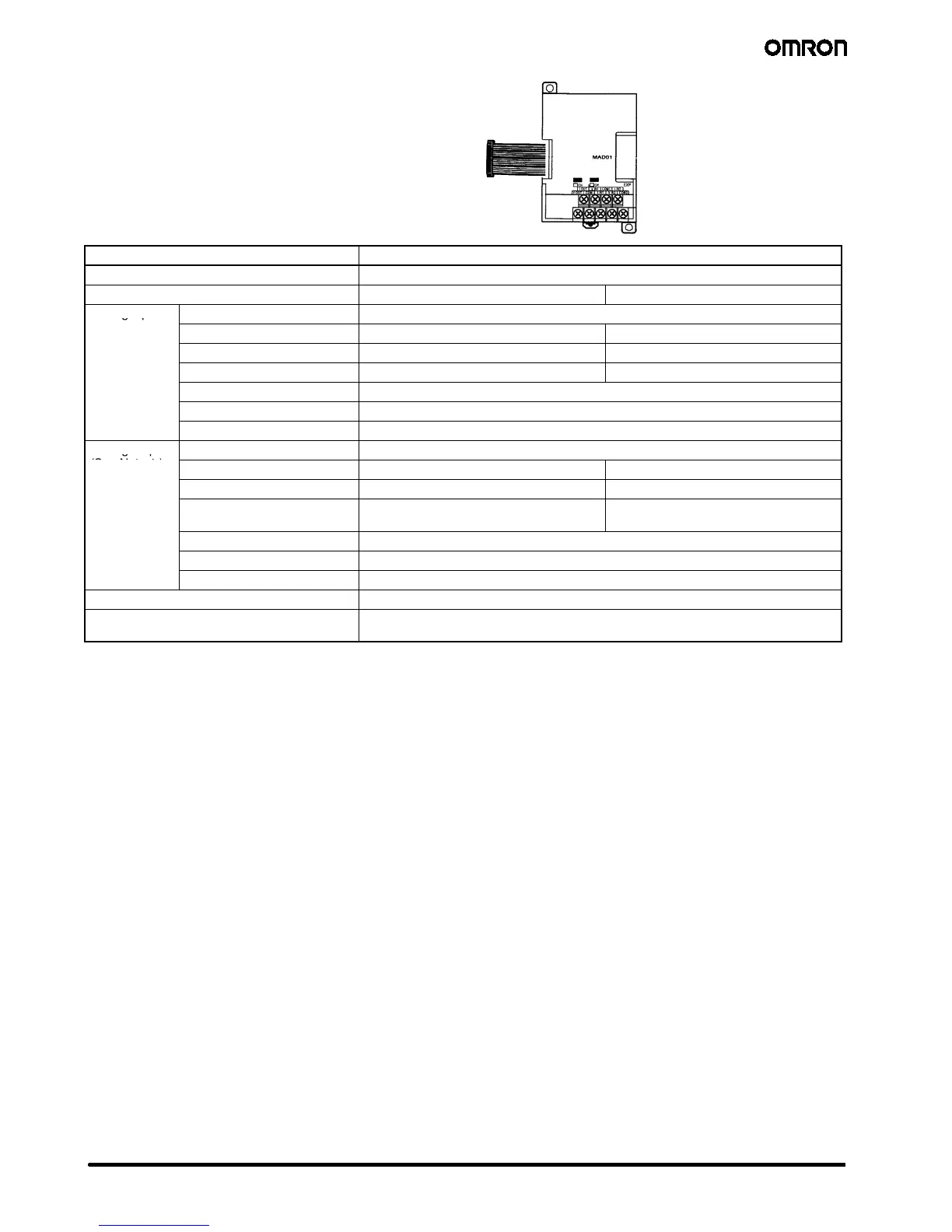

J ANALOG I/O MODULE
CPM1A-MAD01 Specifications
Item Specification
Model CPM1A--MAD01
I/O type Voltage Current
Analog inputs
Number of inputs 2
g
p
Input signal range 0to10Vor1to5V 4to20mA
Maximum rated input
±15 V ±30 mA
External input impedance 1MΩ min. 250 Ω rated
Resolution 1/256
Overall precision 1.0% of full scale
Converted A/D data 8-bit binary
Analog output
(
S
N
t
1
)
Number of outputs 1
g
p
(See Note 1.)
Output signal range 0to10Vor--10to10V 4to20mA
External output max. current 5mA —
External output allowed load
resistance
— 350 Ω
Resolution 1/256 (1/512 when the output signal range is --10 to 10 V.)
Overall precision 1.0% of full scale
Data setting 8-bit binary with sign bit
Conversion time (See Note 2.) 10 ms/Unit max.
Isolation method Photocoupler isolation between I/O terminals and PC
(There is no isolation between the analog I/O signals.)
Note: 1. The voltage output and current output can be used at the same time, but the total output current cannot exceed 21 mA.
2. The conversion time is the total time for 2 analog inputs and 1 analog output.
