5

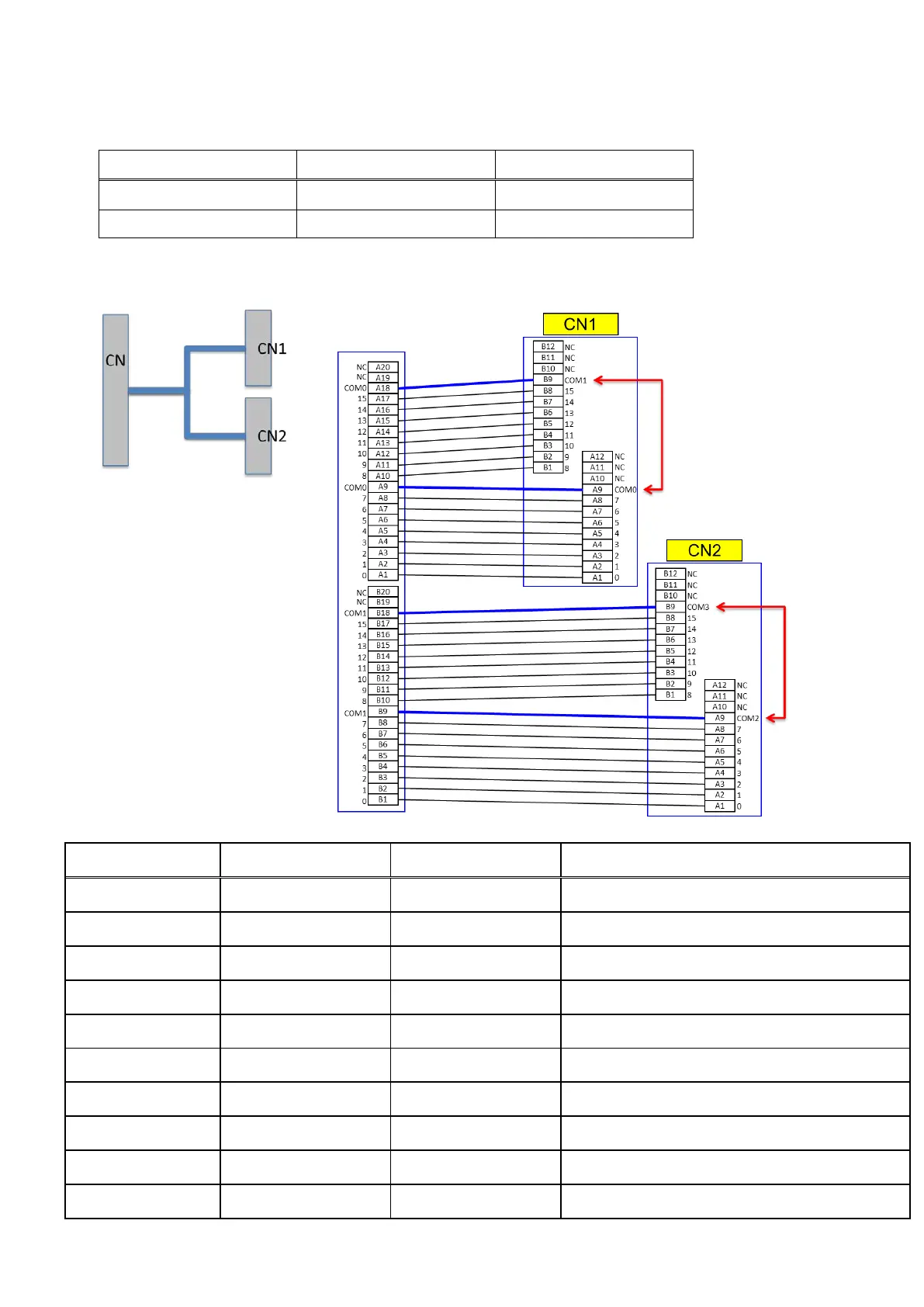

• Replacement of C200H-ID215 and C200H-OD215 using Conversion Cables
The same connecting cables that were connected to C200H-ID215 and C200H-OD215 can be used to replace
them with CS1W-ID231 and CS1W-OD231.
XW2Z-S010
CS1W-ID231 C200H-ID215
Reused cable
C200H-ID215 CS1W-ID231 Remarks
Rated input voltage 24 VDC 24 VDC
Operating input voltage 20.4 to 26.4 VDC 20.4 to 26.4 VDC
Input impedance 5.6 kΩ 3.6 kΩ
Make sure that the connected device operates
correctly.
Input current 4.1 mA typical (at 24 VDC)
6 mA typical (at 24 VDC)
Make sure that the connected device operates
correctly.
ON voltage 14.4 VDC min. 15.4 VDC min.
Make sure that the connected device operates
correctly.
OFF voltage 5 VDC max. 5 VDC max.
ON response time
2.5 ms max./15 ms max.
(switchable)
8 ms max. (switchable) Can be set to between 0 and 32 ms in the PLC Setup.
OFF response time
2.5 ms max./15 ms max.
(switchable)
8 ms max. (switchable) Can be set to between 0 and 32 ms in the PLC Setup.
No. of circuits
8 points/common x
4 circuits (32 inputs)
16 points/common x
2 circuits (32 inputs)
The number of circuits decreased from 4 to 2.
Rewire if separate power supplies are used.
High-speed inputs
8 points (when pin 2 of the
DIP switch is ON)
Not supported Use CS1W-IDP01 for high-speed inputs.
CN2 COM2 and COM3 are
internally connected in the
CS1-series Unit. When
separate power supplies were
used, rewire to use one
To Next Page
