Generating Virtual External Inputs Section 8-3
169
Procedure for Setting I/O Condition Expressions
This section explains the testing procedure using the I/O Condition Tool.
1,2,3…

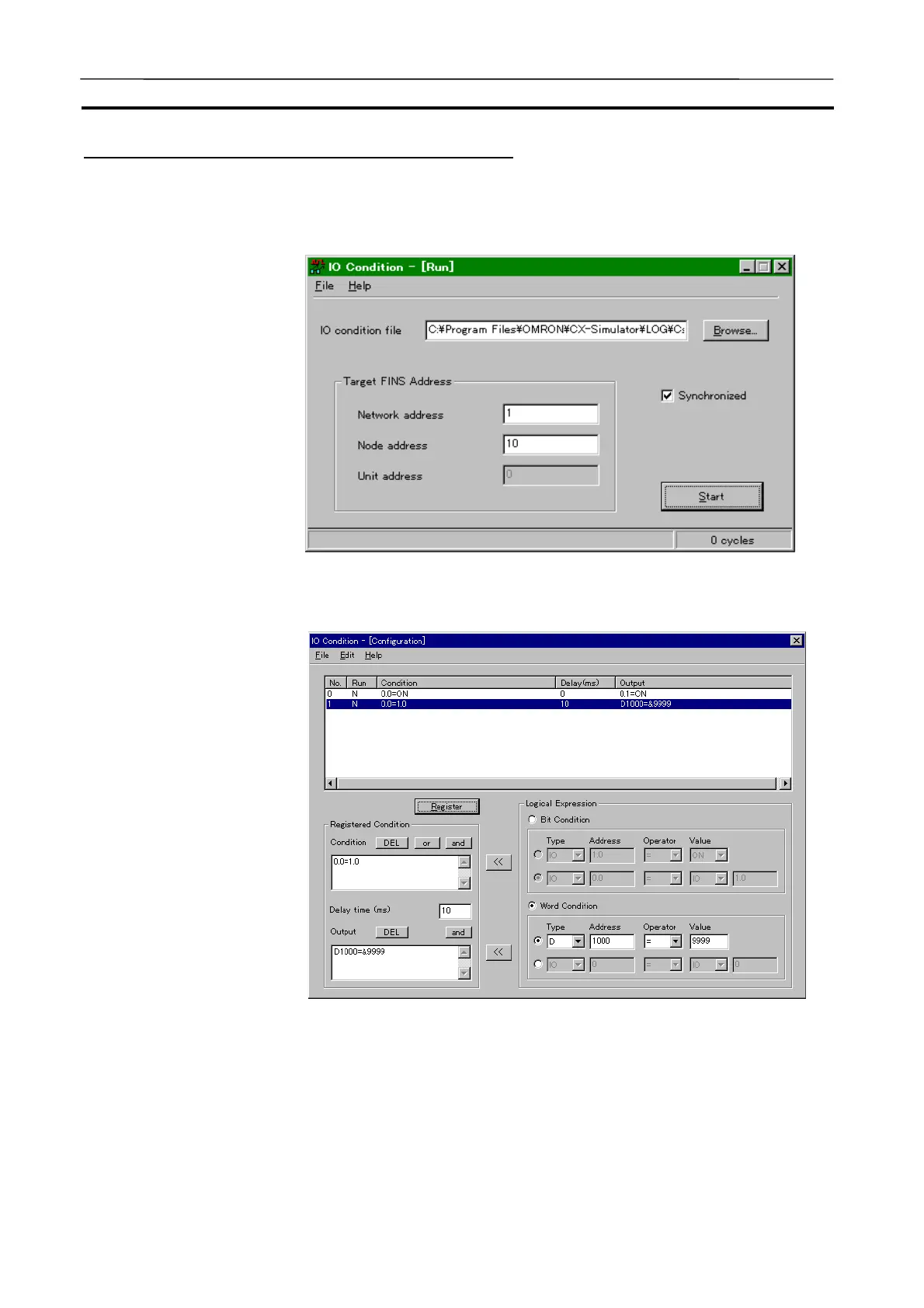

1. Select [IO Condition] in the [CX-Simulator Debug Console] | [Replay ]
menu to display the [Run] window of the I/O Condition Tool.
2. Select [Settings] in the [File] menu to display the [Configuration] window
of the I/O Condition Tool.
3. Select “Bit Condition” or “Word Condition” and set logical expressions to
be added to the condition expressions.
Note Refer to 4-3-5 I/O Break Condition Setting for the setting method of logical
expressions.
4. Click the [<<] button on the side of condition expressions to add the set
logic expression to the condition expression.
