Features Section 1-2
10
Send/receive FINS com-
mands to nodes in the com-
puter

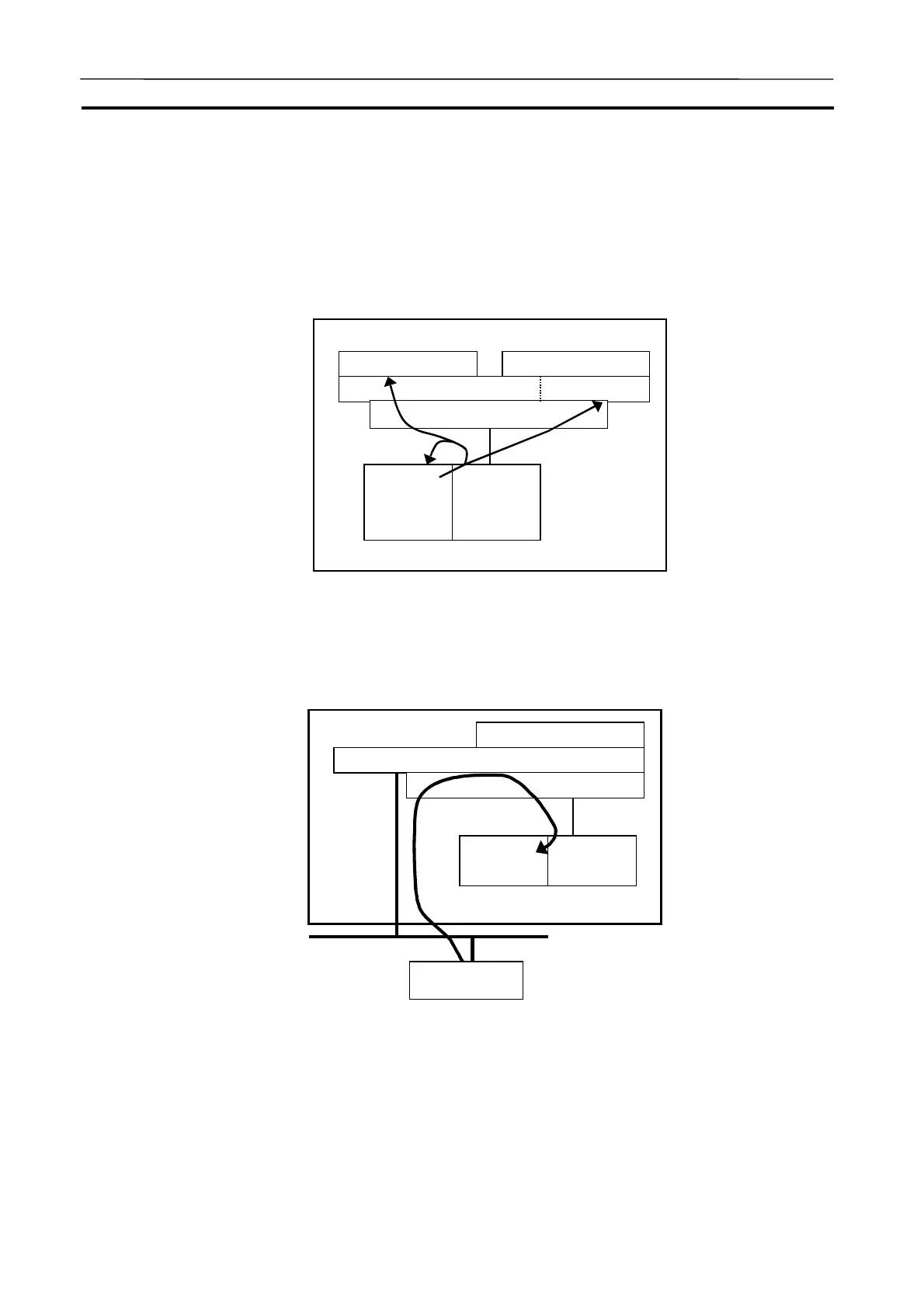

The CX-Simulator can send/receive FINS commands to nodes (the CPU Unit
itself, application programs using FinsGateway, or the CPU Unit for Fins-
Gateway) in the computer using network communications instructions in the
CPU Unit. This capability enables debugging of network communications with
the CPU Unit itself or the CPU Unit for FinsGateway as the tentative commu-
nications target.
Receive external FINS com-
mands possible
The CX-Simulator can receive external FINS commands from external net-
worked computers or actual PLCs.
Display FINS send mes-
sages
Display FINS messages sent with network communications instructions on
the message display window. (No actual send is executed.)
