System Status Setting Window Section 3-7
62
1,2,3…

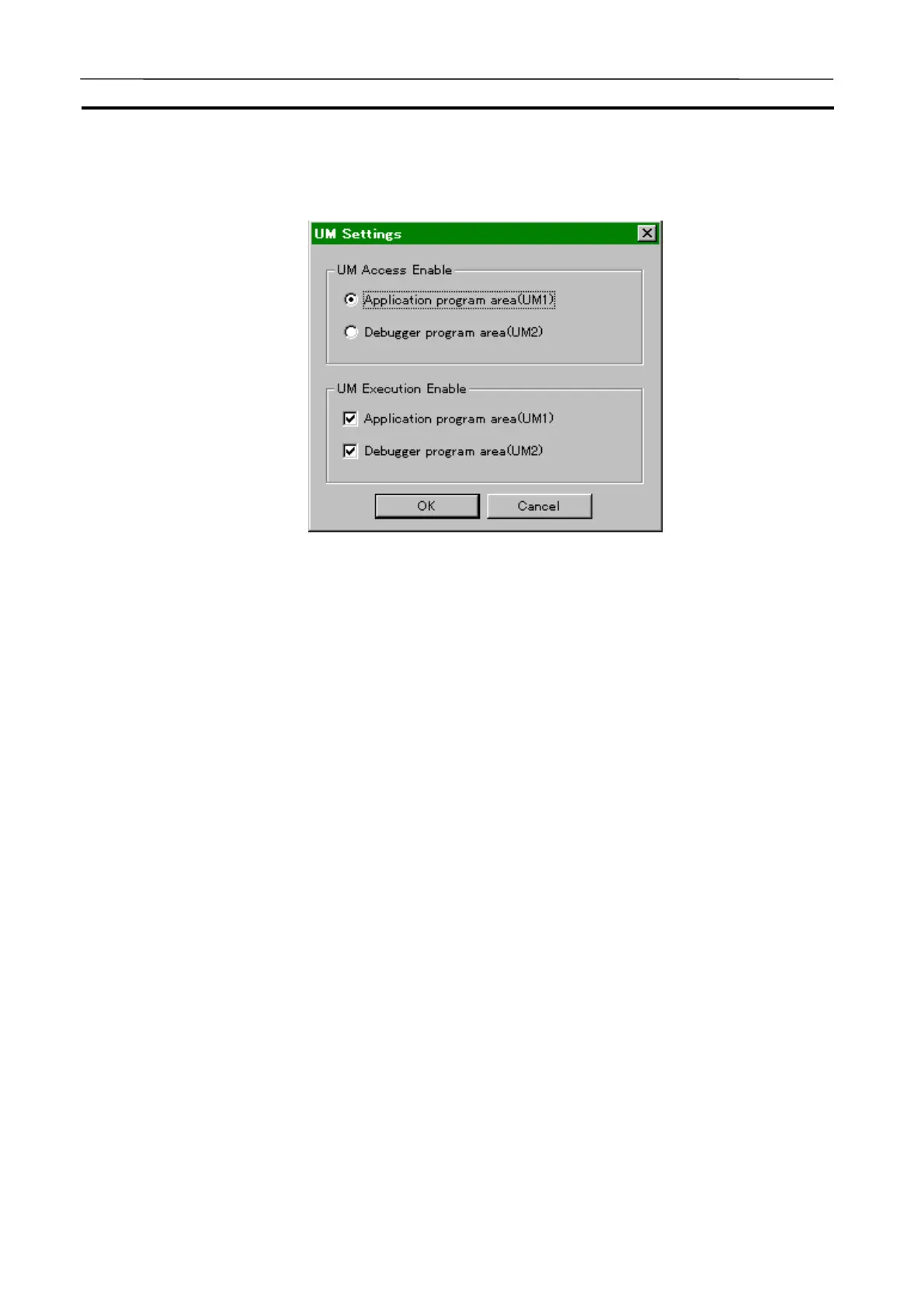

1. Selecting [UM Settings] in the [System Status Setting] | [Settings] menu
will display the [UM Settings] window.
· UM Access Enable Set the UM for downloading/uploading and
editing online by the CX-Programmer.
· UM Execution Enable Set whether to execute programs on the UM
(enable) or not. Disabling both of UM1 and
UM2 simultaneously is not possible.
· OK Save the current settings and exit the window.
· Cancel Discard the current settings and exit the win-
dow.
2. Click the [OK] button when UM setting is completed.
Note Refer to 8 Debugging Using Virtual External Inputs for how to use the UM2.
