Debug Console Window Section 3-9
79
[Exit system]
Exit from the CX-Simulator.
1,2,3…
1. Select [Exit system] in [File] to display the exit message.
· Yes Disconnect the CX-Simulator to exit the application
· No Close the dialog box to cancel exiting the CX-Simulator.

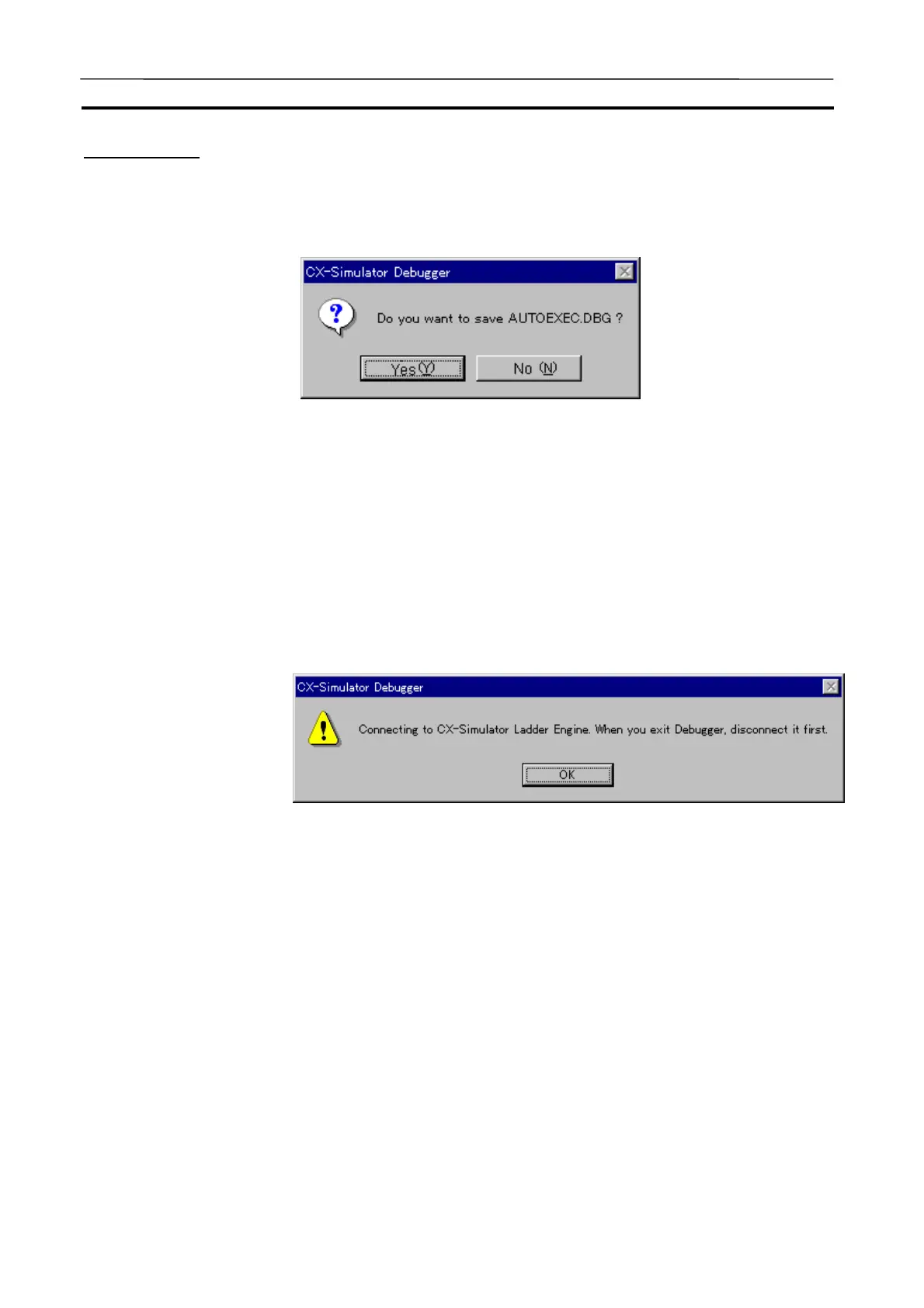

2. Clicking the [Yes] button will display the dialog box for saving the Debug-
ger setting.
3. Clicking the [Yes] button will save the current setting to exit the CX-
Simulator.
4. Attempting to exit without disconnecting the Simulator will display the dia-
log box below, followed by the [Work CX-Simulator] window.
After Disconnect, exit the system again.
