G-240 Safety Sensors / Components

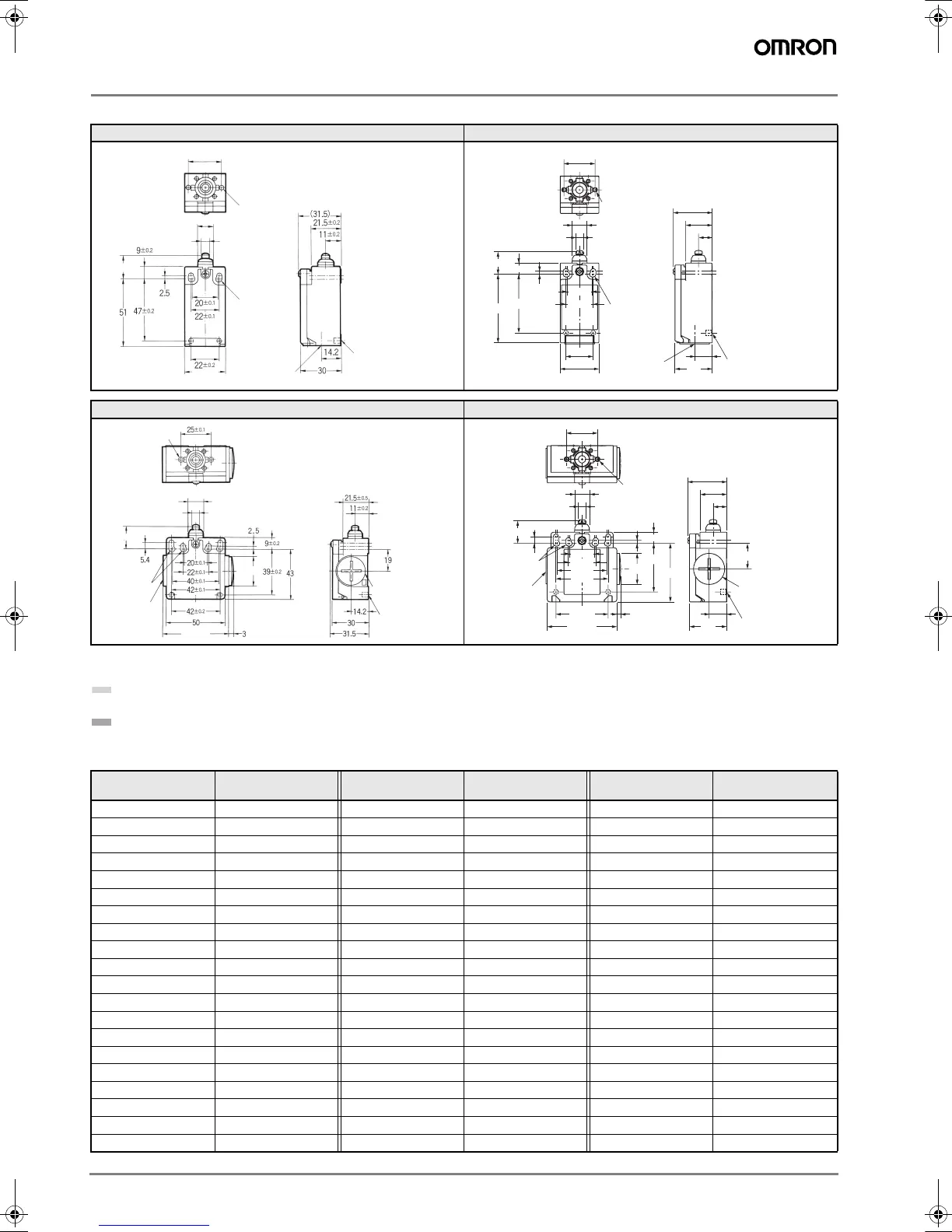

Dimensions (Unit: mm)
List of Recommended Substitute Products
: The actuator on the D4D-N is a non-safety type. The D4N is recommended for safety applications (form lock type). Be sure to mount it cor-
rectly.
: M screws are recommended to comply with European standards. Therefore, the M20 type is recommended as a substitute when the PG13.5
conduit-type is not available in a D4N model.
Safety Limit Switches
Discontinued Models (1-conduit Plunger-type D4D-N) Replacement Products (1-conduit Plunger-type D4N)
Discontinued Models (2-conduit Plunger-type D4D-N) Replacement Products (2-conduit Plunger-type D4N)
D4D-N product to be
discontinued
Recommended
substitute product
D4D-N product to be
discontinued
Recommended
substitute product
D4D-N product to be
discontinued
Recommended
substitute product
D4D-1120N D4N-1120 D4D-1520N D4N-1A20 D4D-1A20N D4N-1B20
D4D-2120N D4N-2120 D4D-2520N D4N-2A20 D4D-2A20N D4N-2B20
D4D-3120N D4N-3120 D4D-3520N D4N-3A20 D4D-3A20N D4N-3B20
D4D-5120N D4N-5120 D4D-5520N D4N-5A20 D4D-5A20N D4N-5B20
D4D-6120N D4N-6120 D4D-6520N D4N-6A20 D4D-6A20N D4N-6B20
D4D-1122N D4N-1122 D4D-1522N D4N-1A22 D4D-1A22N D4N-1B22
D4D-2122N D4N-2122 D4D-2522N D4N-2A22 D4D-2A22N D4N-2B22
D4D-3122N D4N-3122 D4D-3522N D4N-3A22 D4D-3A22N D4N-3B22
D4D-5122N D4N-5122 D4D-5522N D4N-5A22 D4D-5A22N D4N-5B22
D4D-6122N D4N-6122 D4D-6522N D4N-6A22 D4D-6A22N D4N-6B22
D4D-1125N D4N-1125 D4D-1525N D4N-1A25 D4D-1A25N D4N-1B25
D4D-2125N D4N-2125 D4D-2525N D4N-2A25 D4D-2A25N D4N-2B25
D4D-3125N D4N-3125 D4D-3525N D4N-3A25 D4D-3A25N D4N-3B25
D4D-1131N D4N-1131 D4D-1531N D4N-1A31 D4D-1A31N D4N-1B31
D4D-2131N D4N-2131 D4D-2531N D4N-2A31 D4D-2A31N D4N-2B31
D4D-3131N D4N-3131 D4D-3531N D4N-3A31 D4D-3A31N D4N-3B31
D4D-5131N D4N-5131 D4D-5531N D4N-5A31 D4D-5A31N D4N-5B31
D4D-6131N D4N-6131 D4D-6531N D4N-6A31 D4D-6A31N D4N-6B31
D4D-1132N D4N-1132 D4D-1532N D4N-1A32 D4D-1A32N D4N-1B32
D4D-2132N D4N-2132 D4D-2532N D4N-2A32 D4D-2A32N D4N-2B32
25 dia. ±0.1
Two, 3 ±0.05 dia. holes
12 dia.
6-dia. resin plunger
0
Two, 4
+0.15
dia. holes
depth: 5
2.15±0.05R
mounting holes
31 max.
(See note.)
OP
30
(31.5)
21.5
25
±0.1
12 dia.
11
±0.2
22
±0.2
31 max.
55
47
±0.2
2.5
9
±0.2
OP
20
±0.1
22
±0.1
14.2
2.15±0.05R
mounting holes
0
Two, 4
+0.15
dia. holes
depth: 5
Two, 3 ±0.05 dia.
holes
6-dia. resin
plunger
Conduit cap
(See note.)
Two, 3 ±0.05 dia. holes
depth: 6
12 dia.
6 dia.
2.15±0.05R
mounting holes
56 max.
25 dia.
Cap
0
Two, 4
+0.15
dia. holes
depth: 5
(See note.)
OP
30
Cap
20.5
42±
0.2
(3)
56 max.
47
25 dia.
2.5
5.4
9
±
0.2
OP
20
±
0.1
40±
0.1
42±
0.1
22±
0.1
14.2
(31.5)
21.5
11±
0.2
25±
0.1
12 dia.
39±
0.2
2.15±0.05R
mounting holes
0
Two, 4
+0.15
dia. holes
depth: 5
Two, 3 ±0.05
dia. holes
6-dia. resin plunger
Conduit cap
(See note.)
