14 Inductive Sensors

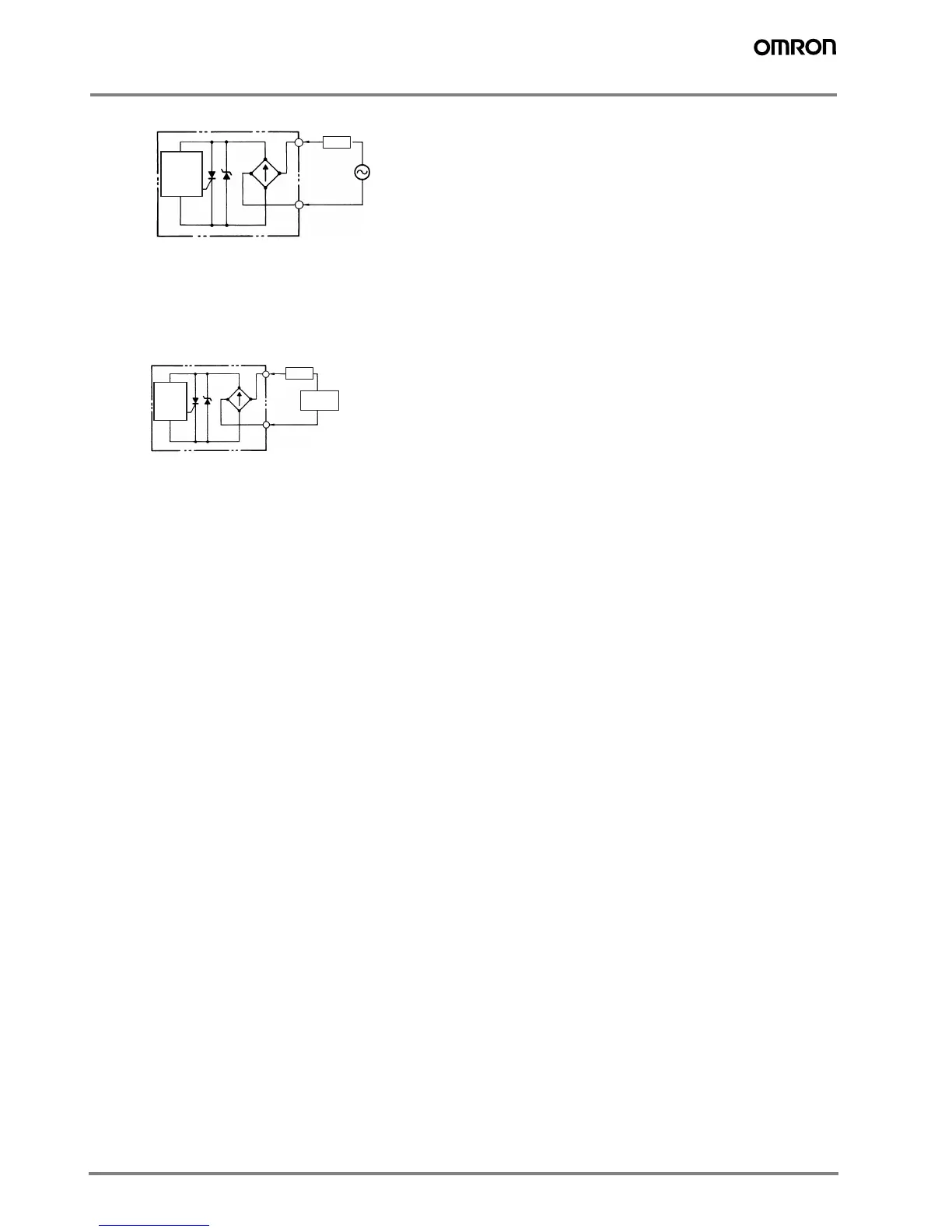

E2E-X@Y@ AC 2-wire Models
E2E-X@T1 AC/DC 2-wire Models
Load
Brown 3 (or 1)
Blue 4 (or 2)
Proximity
sensor
main
circuit
Note: For connector models, the
connection between pins 3 and 4
uses an NO contact, and the
connection between pins 1 and 2
uses an NC contact.
24 to 240 VDC
48 to 240 VAC
Load
Brown
Blue
Power
supply
Proximity
sensor
main
circuit
Note:The load can be connected to either
the +V or 0 V side.
There is no need to be concerned
about the polarity (Brown/Blue) of the
Proximity Sensor.
