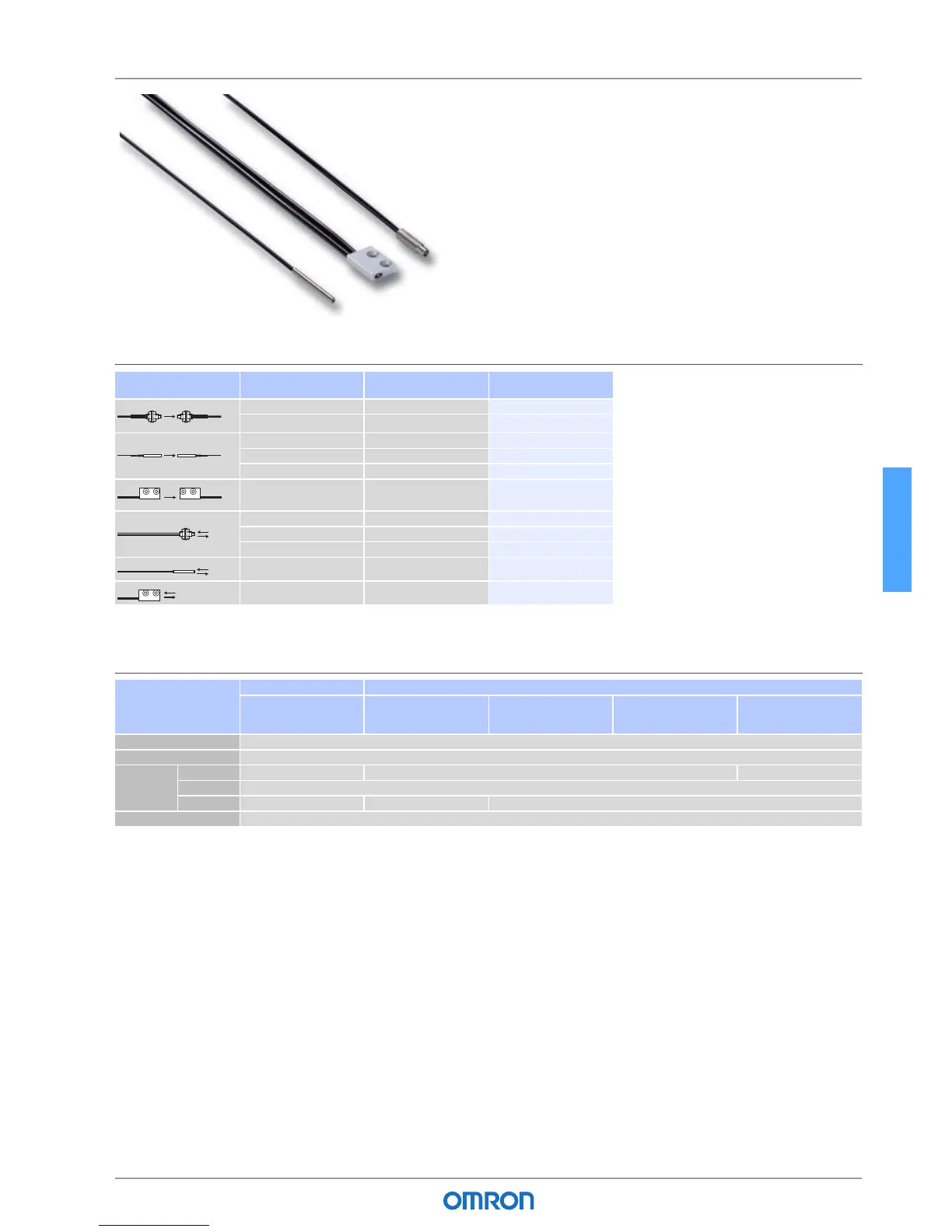

Fibers – special
E32
Fiber sensor heads
Robot application fiber sensor heads
For applications on frequently or fast moving parts, the robot fibers reduce the risk
of fiber breakage with a guaranteed operational life of more than 1 million bending
cycles
• Free moving multicore fibers for > 1 mio bending cycles
• Square shapes for easy surface installation
• Cylindrical sizes from dia 1.5 mm to M6
Ordering information
Specifications
Sensor type Size Sensing distance
(in mm)
*1
*1
Sensing distance measured with E3X-DA-S family in standard mode. In high resolution mode the sensing distance is approx. 30%
higher.
Order code
M4 680 E32-T11 2M
M3 200 E32-T21 2M
dia 3 mm 680 E32-T12B
dia 2 mm 200 E32-T221B
dia 1.5 mm 200 E32-T22B
15x18x3 mm 680 E32-T15XB 2M
M6 170 E32-D11 2M
M4 70 E32-D21B 2M
M3 30 E32-D21 2M
dia 1.5 mm 30 E32-D22B 2M
15x10x3 mm 170 E32-D15XB 2M
Item Square Cylindrical
E32-D15XB
E32-T15XB
E32-T21 E32-D11
E32-T11
E32-D21
E32-T12B
E32-T22B
E32-D21B
E32-D22B
E32-T221B
Permissable bending radius R4
Cut to length Yes
Material Head Aluminium Brass-nickel plated Stainless steel
Fiber PMMA
Sheath PVC coating Polyethylene coating PVC coating
Degree of protection IEC 60529 IP67
