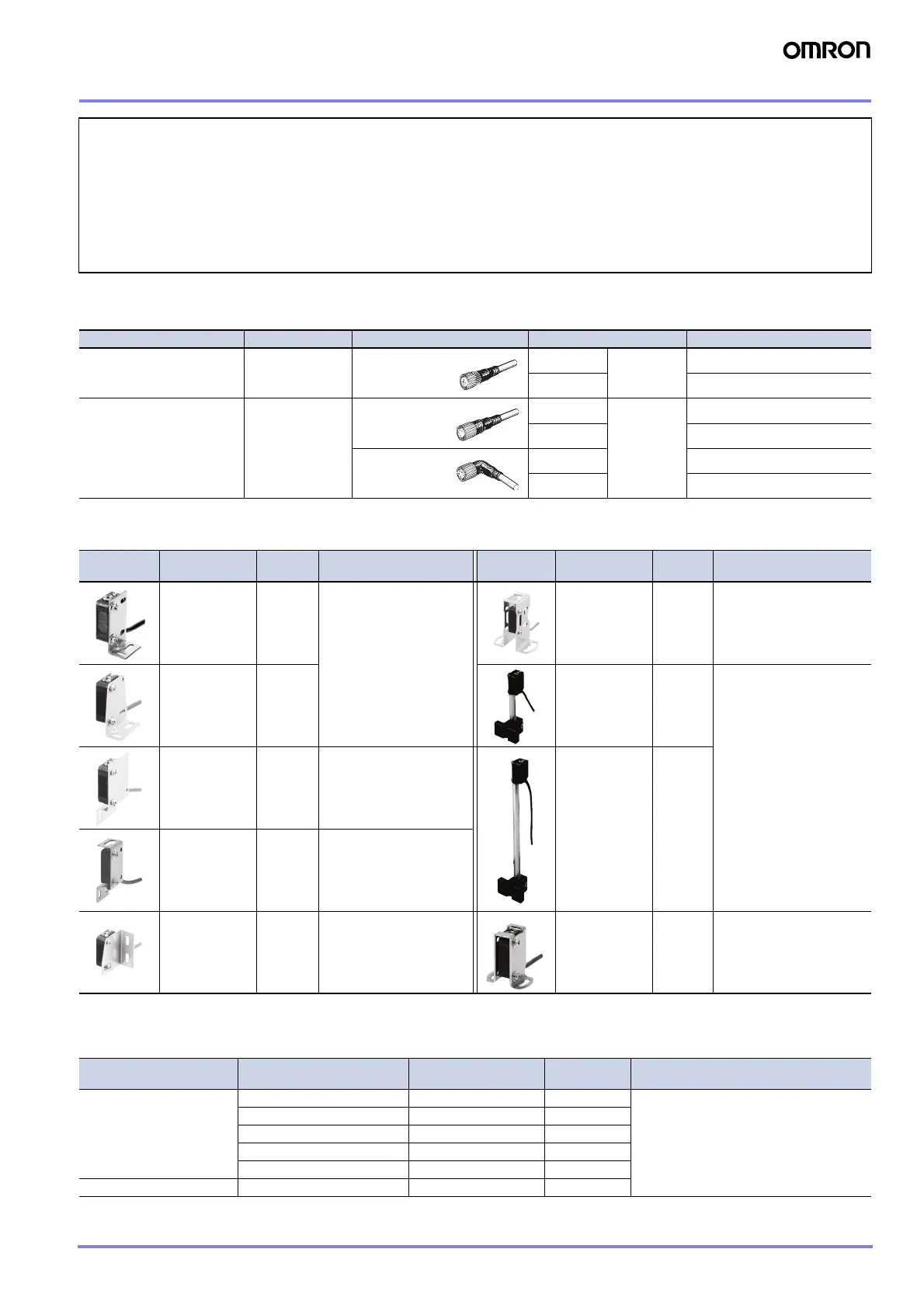

Oil-resistant, Robust, Compact Photoelectric Sensor E3ZM-C 5
Accessories
Sensor I/O Connectors
Note: Ask your OMRON representative about connectors with other specifications.
Mounting Brackets
Note: When using Through-beam Models, order one bracket for the Receiver and one for the Emitter.
* Cannot be used for Standard Connector models.
Reflector
Note: When using a Reflector without a rated value, use 0.7 times typical value as a guideline for the sensing distance.
* Values in parentheses indicate the minimum required distance between the Sensor and Reflector.
Let Us Know What You Need
1. Retro-reflective, Diffuse-reflective, and BGS-reflective Models are also available with a 5-m pre-wired cable. When ordering, add the cabl
e
lengt
h to the end of the model number (e.g., E3ZM-CD62 5M).
2. Models with no moving parts (i.e., without a sensitivity adjustor or mode selection switch) are also available, as are models with built-in slit
s
(t
hrough-beam, 0.8 m) (e.g., E3ZM-CT83H 2M for no sensitivity adjustment, wire-connection selection of operating mode, and built-in slit).
3. Except for the E3ZM-CL@@H, models with 3-pin M8 connectors are available. When ordering, add “-M5” to the end of the model number (e.g.,
E3ZM-CT66-M5).
4. Through-beam Models are also available with a light emission stop function. When ordering, add “-G0” to the end of the model number (e.g.,
E3ZM-T61-G0).
Ask your OMRON representative for details on any models or specifications you require.
Size Cable Appearance Cable type Model
M12 (For -M1TJ models) Standard Straight
2 m
4-wire
XS5F-D421-D80-A
5 m XS5F-D421-G80-A
M8 (4 pins) Standard
Straight
2 m
4-wire
XS3F-M421-402-A
5 m XS3F-M421-405-A
L-shaped
2 m XS3F-M422-402-A
5m XS3F-M422-405-A
Appearance
Model
(Material)
Quantity Remarks Appearance
Model
(Material)
Quantity Remarks
E39-L153
(SUS304)
1
Mounting Brackets
E39-L98
(SUS304)
1
Metal Protective Cover
Bracket *
E39-L104
(SUS304)
1
E39-L150
(SUS304)
1 set
(Sensor adjuster)
Easily mounted to the alu-
minum frame rails of con-
veyors and easily adjusted.
For vertical angle adjust-
ment
E39-L43
(SUS304)
1
Horizontal Mounting
Bracket *
E39-L151
(SUS304)
1 set
E39-L142
(SUS304)
1
Horizontal Protective
Cover Bracket *
E39-L44
(SUS304)
1 Rear Mounting Bracket
E39-L144
(SUS304)
1
Compact Protective Cover
Bracket *
Name
E3ZM-CR
Sensing distance (typical) *
Model Quantity Remarks
Reflector
3 m (100 mm) (rated value) E39-R1 1
• Reflectors are not provided with Retro-
reflective models.
• The MSR function is enabled.
4 m (100 mm) (rated value) E39-R1S 1
5 m (100 mm) E39-R2 1
2.5 m (100 mm) E39-R9 1
3.5 m (100 mm) E39-R10 1
Small Reflector 1.5 m (50 mm) E39-R3 1
To Next Page
