Omron E3C-LDA Series User Manual

5
E3JM

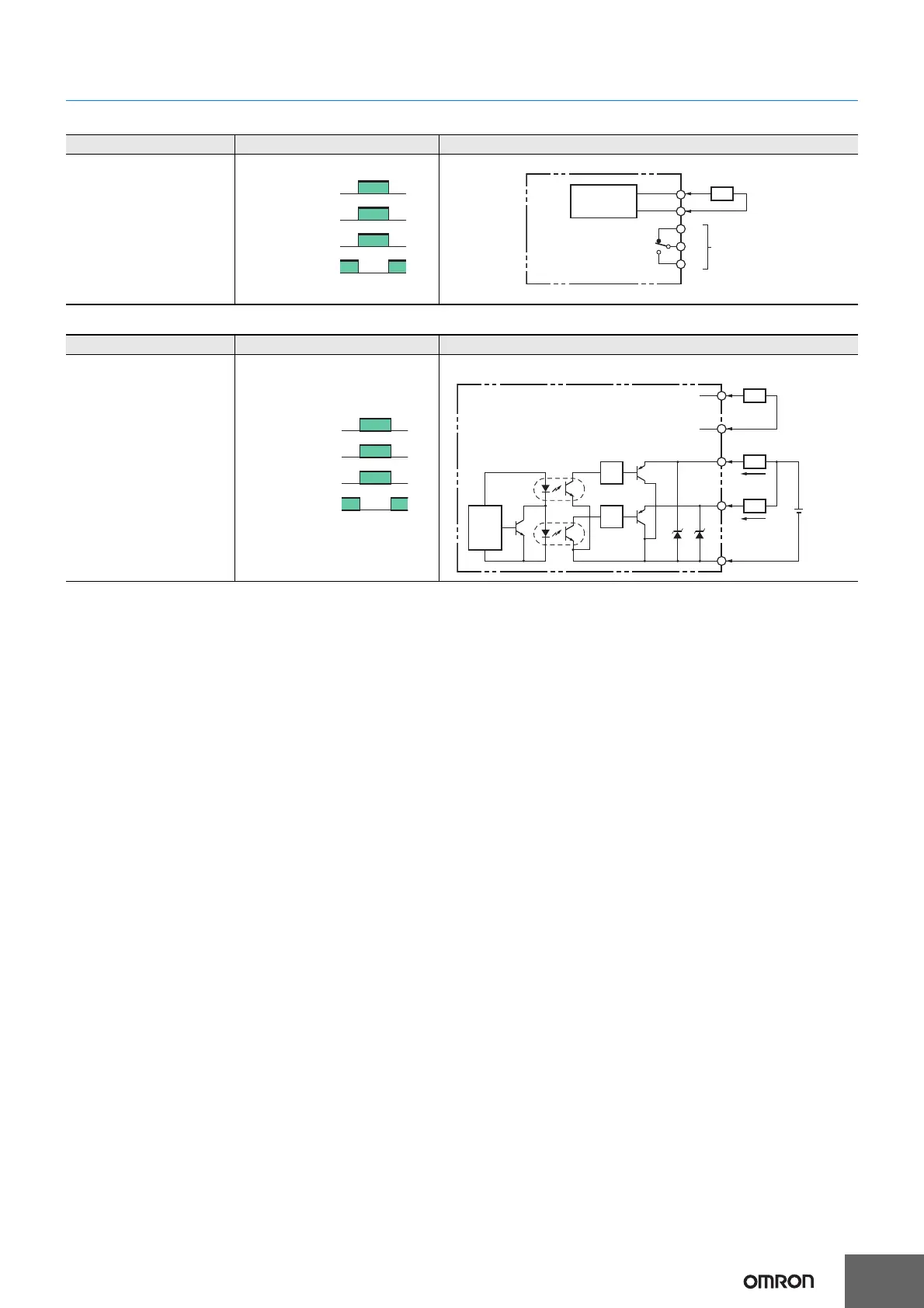

I/O Circuit Diagrams
Relay Output Models
DC SSR Output Models
Note: Connect terminal 1 to any polarity and terminal 2 to the power supply because there is no polarity on the Emitter side.
* This is the light indicator on Sensors without a timer and the operation indicator on Sensors with a timer.
Model Timing chart Output circuit
E3JM-10M4(T)(-G)-NN(-US)
E3JM-R4M4(T)(-G)(-US)
E3JM-DS70M4(T)(-G)(-US)
Model Timing chart Output circuit
E3JM-10S4(T)(-G)-NN(-US)
E3JM-R4S4(T)(-G)(-US)
E3JM-DS70S4(T)(-G)(-US)
Indicator
(red)
L-ON (Ta)
D-ON (Ta)
Incident light
No incident light
ON
OFF
ON
OFF
ON
OFF
Refer to page 6 for information on Sensors with timers (T).
*
1
2
4
5
3
No polarity
24 to 240 VAC
12 to 240 VDC
Tb
Tc Contact output
Ta
(Built-in Relay: G6C)
Photoelectric
Sensor main
circuit
Power
Source
Indicator
(red)
L-ON (Ta)
D-ON (Ta)
Incident light
No incident light
ON
OFF
ON
OFF
ON
OFF
Refer to page 6 for information on Sensors with timers (T).
*
1
2
3
5
4
Drive
Circuit
Drive
Circuit
L/ON
D/ON
NO
NC
48 VDC
max.
COM
Load
Load
I
1
I2
I1+I2<100 mA
No polarity
24 to 240 VAC
12 to 240 VDC
Photo-
electric
Sensor
main
circuit
Power
Source
