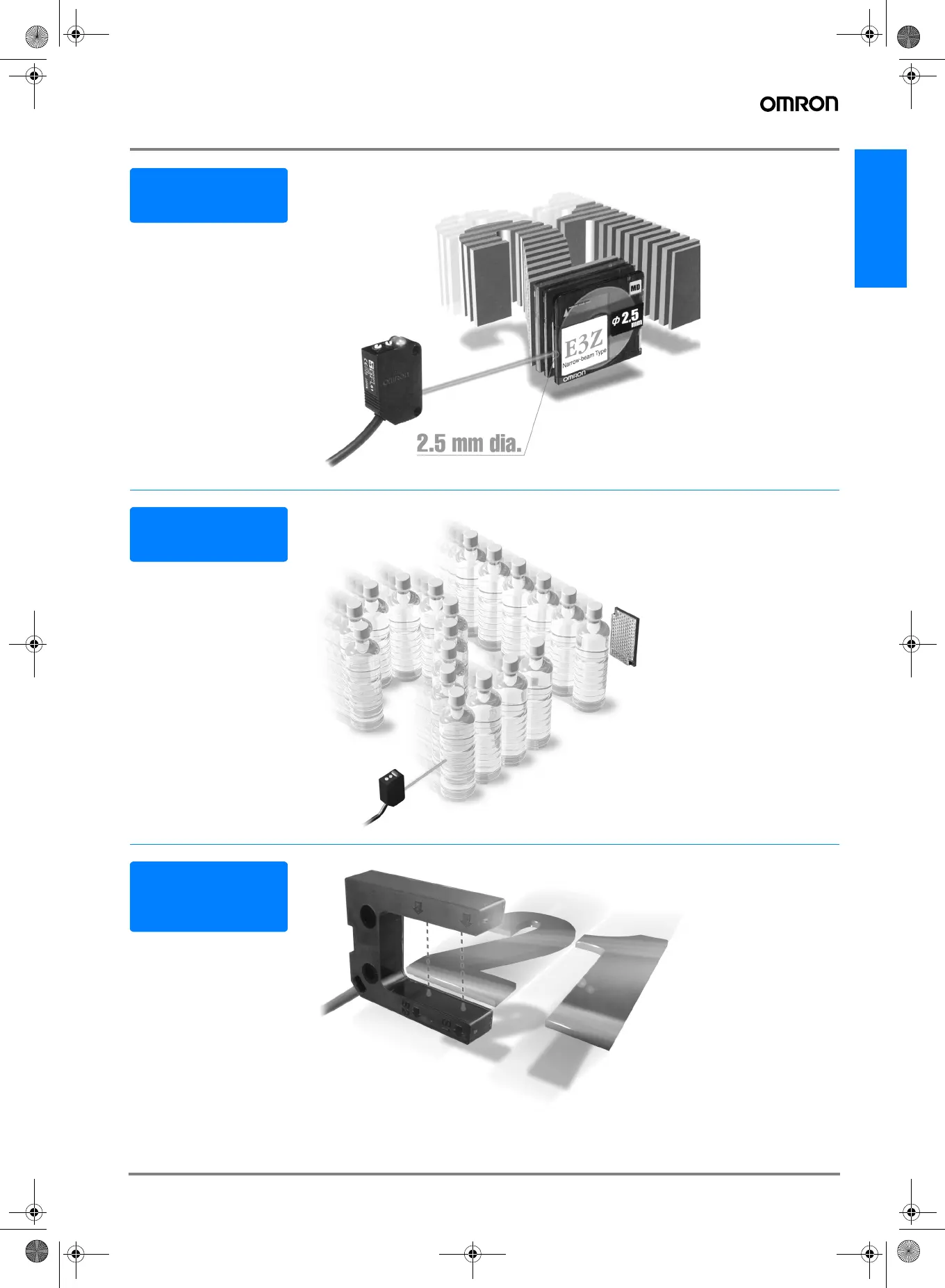

Omron E3Z series User Manual

A-45E3Z
E3Z
Ideal for detecting
small objects with a
small spot:
●Tiny objects as little as
0.1 mm in diameter can
be detected with its 2.5-
mm dia. spot.
● The thin beam enables
detection through gaps
or small holes.
●The high-intensity spot
of light enables visual
alignment of sensing
spot position.
Stable detection of
recyclable thin-wall
PET bottles.
Standard-size trans-
parent object sensor
● Uses OMRON's unique
optical system ("Inner
View") that can detect
various shapes of PET
bottles and transparent
objects.
● Detects a wide range of
bottles regardless of size
and facets
Fork design
eliminates the need
for optical axis
adjustment.
● Two-axis models also
available.
● Ideal for limit of travel
monitoring.
● Condition monitoring.
● „Flag“ identification.
Narrow Beam
model
Transparent
PET bottles
Fork Sensor,
single and dual
beam versions
F502-EN2-04.book Seite 45 Dienstag, 26. Juli 2005 5:48 17

Omron E3Z series Specifications

General

Protection Rating	IP67
Response Time	1 ms or less
Accessory Type	Photoelectric Sensor
Connection Type	Pre-wired, Connector
Sensing Method	Through-beam, Retro-reflective, Diffuse-reflective
Light Source	Infrared LED, Red LED
Power Supply Voltage	12 to 24 VDC
Output Type	NPN, PNP
Operating Temperature	-25 to 55°C
Sensing Distance	varies by model (up to 30m for Through-beam)
