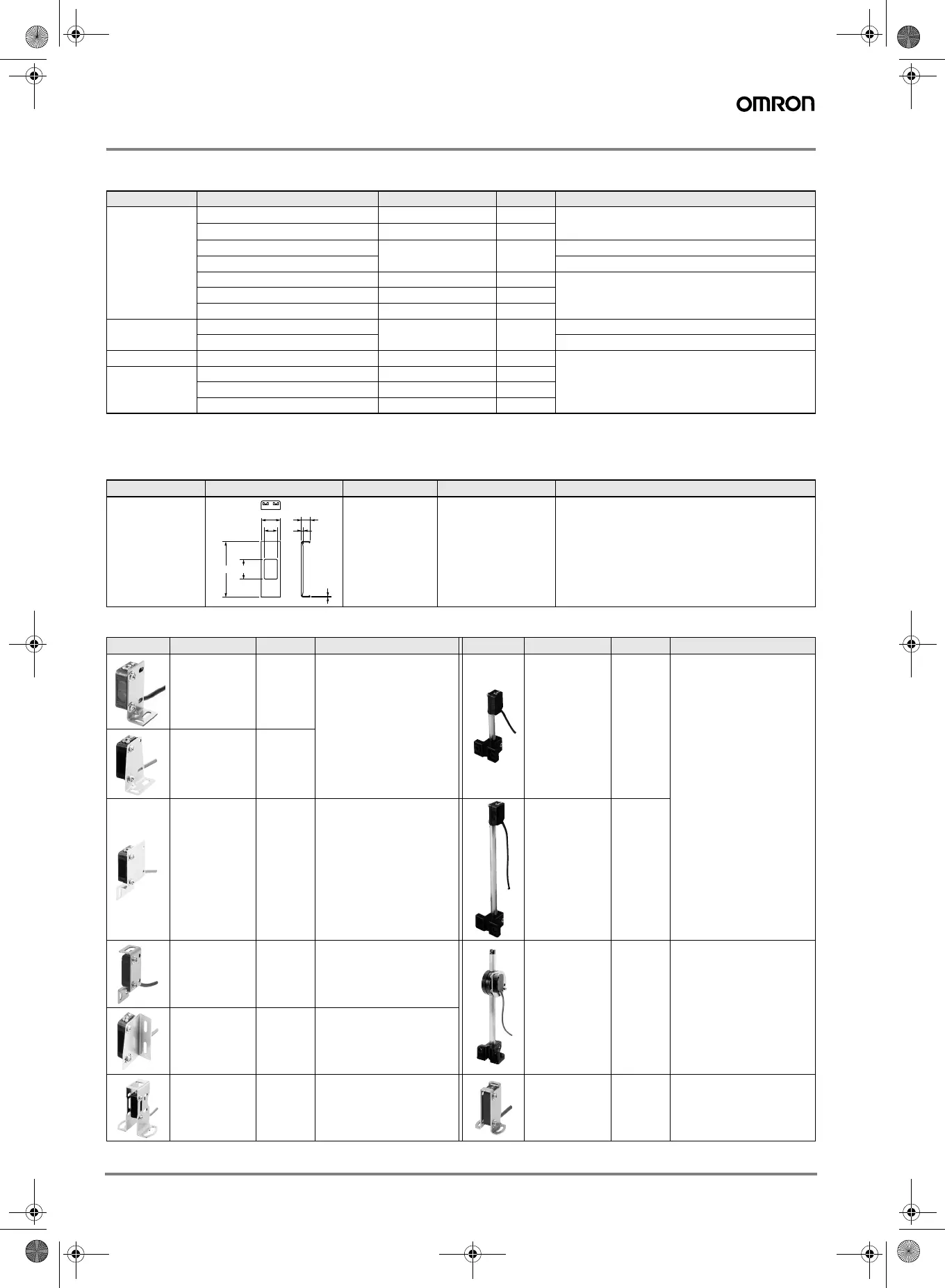

Omron E3Z series

A-48 Standard Photoelectric Sensors
Reflectors
Not provided with retroreflective models
* Values in parentheses indicate the minimum required distance between the sensor and reflector.
Note: 1 .When using the reflector of other than the rated value, set the sensing distance to about 0.7 times of the typical example as a guideline.
2 .For details, refer to the "Reflector list".
Mutual interference prevention filter
Mounting Brackets
Note: 1 .If a through-beam model is used, order two Mounting Brackets for the emitter and receiver respectively.
2 .For details, refer to the "Mounting bracket list".
Name Sensing distance (typical) * Model Quantity Remarks
Reflectors
3 m [100 mm] (Rated value) E39-R1 1
4 m [100 mm] (Rated value) E39-R1S 1
500 mm [80 mm]
E39-R1S 1
for E3Z-B#1/6
2 m [100 mm] for E3Z-B#2/7
5 m [100 mm] E39-R2 1
2.5 m [100 mm] E39-R9 1
3.5 m [100 mm] E39-R10 1
Fog preventing
500 mm [80 mm]
E39-R1K 1
for E3Z-B#1/6
2 m [100 mm] for E3Z-B#2/7
Small reflector 1.5 m [50 mm] E39-R3 1
Tape Reflector
700 mm [150 mm] E39-RS1 1
1.1 m [150 mm] E39-RS2 1
1.4 m [150 mm] E39-RS3 1
Sensing distance Shape/dimensions Model Quantity Remarks
3 m
E39-E11
2 sets each for emit-
ters and receivers
(total of 4 pcs.)
Can be used with the through-beam E3Z-T##A.
The arrow represents the polarizing direction.
Changing the polarizing direction of the two adja-
cent emitters and receivers prevents mutual in-
terference.
Shape Model Quantity Remarks Shape Model Quantity Remarks
E39-L153 1
Mounting Brackets E39-L150 One set
Sensor adjuster
Easy mounting to alumi-
num frame/rail of conveyor
or like, easy adjustment.
For left-to-right adjustment
E39-L104 1
9-L43 1
Horizontal type mounting
bracket
E39-L151 One set
E39-L142 1
Horizontal type protective
cover bracket
E39-L93@ One set
Sensor adjuster
Easy mounting to alumi-
num frame/rail of conveyor
or like, easy adjustment.
For vertical angle adjust-
ment
E39-L44 1 Rear mounting bracket
E39-L98 1 Protective cover bracket E39-L144 1
Vertical protective cover
bracket
0.2
1
4.9
10.8
7.4
11.231.4
