Omron E5CC-QX2ASM-800 User Manual

E5CC-800/E5CC-B-800/E5CC-U-800
15

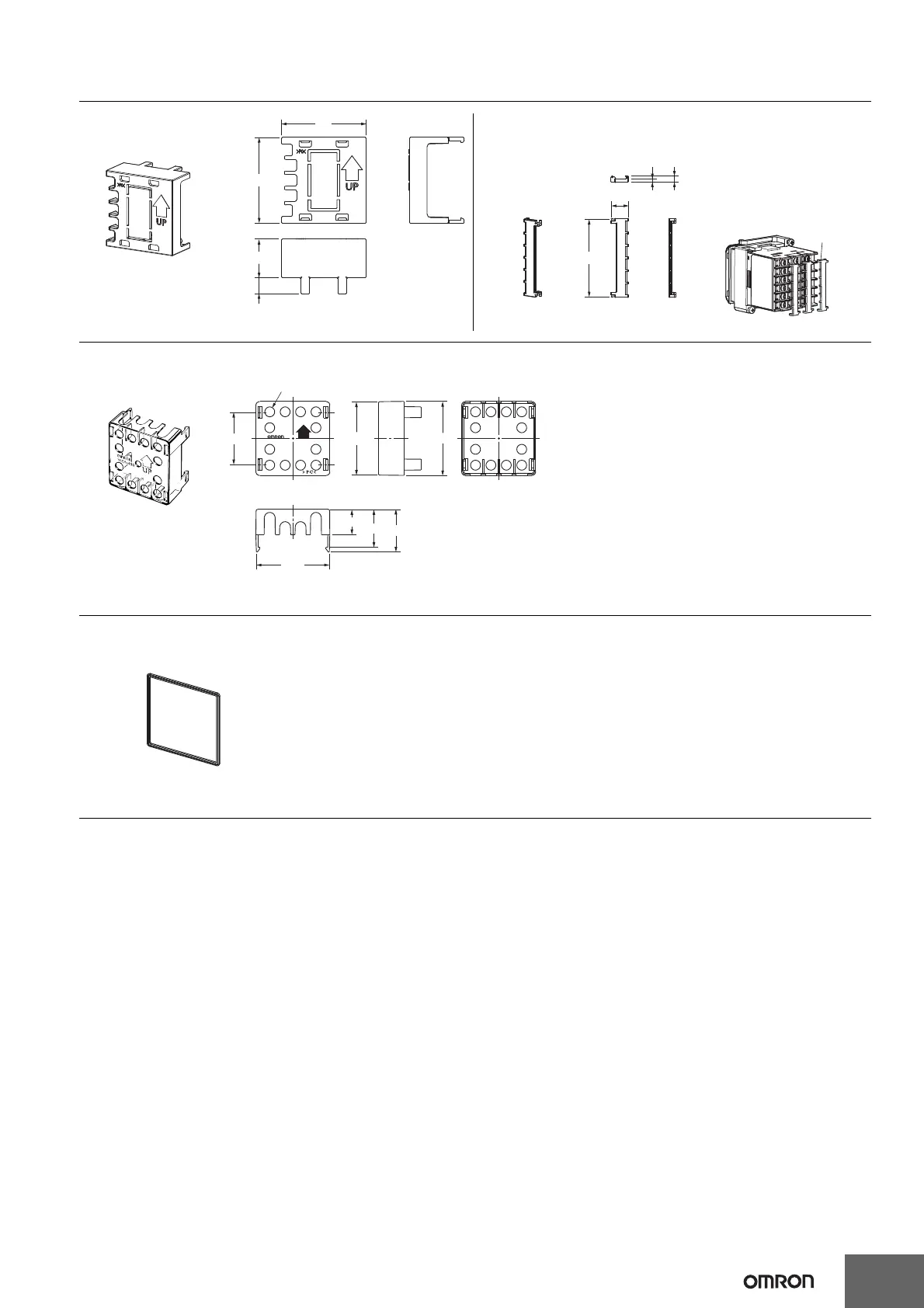

Accessories (Order Separately)
48
48.8
22
9.1
10
44.8
2 3.8
Terminal Cover
(E53-COV23)
● Terminal Covers
E53-COV17
● Terminal Covers
E53-COV23 (Three Covers provided.)
Y92A-48G
UP
P C
34
Twelve, 6.4-dia.
47.7×47.7
48×48
27.6
24.6
16.5
47.4
● Terminal Cover (for the P3GA-11 Back-connecting Socket)
Y92A-48G
Note: You can attach the P3GA-11 Back-connecting Socket for finger protection.
● Waterproof Packing
Y92S-P8 (for DIN 48 × 48)
The Waterproof Packing is provided only with the E5CC-800/E5CC-B-800.
It is not included with the E5CC-U-800.
Order the Waterproof Packing separately if it becomes lost or damaged.
The Waterproof Packing can be used to achieve an IP66 degree of protection.
(Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the
operating environment. Therefore, periodic replacement is recommended to ensure the level of
waterproofing specified in IP66. The time for periodic replacement depends on the operating
environment. Be sure to confirm this point at your site.
Consider three years as a rough standard.)
The E5CC-U-800 cannot be waterproofed even if the Waterproof Packing is attached.

Omron E5CC-QX2ASM-800 Specifications

General

Brand	Omron
Model	E5CC-QX2ASM-800
Category	Temperature Controller
Language	English
