Omron E5CC-QX2ASM-802 User Manual

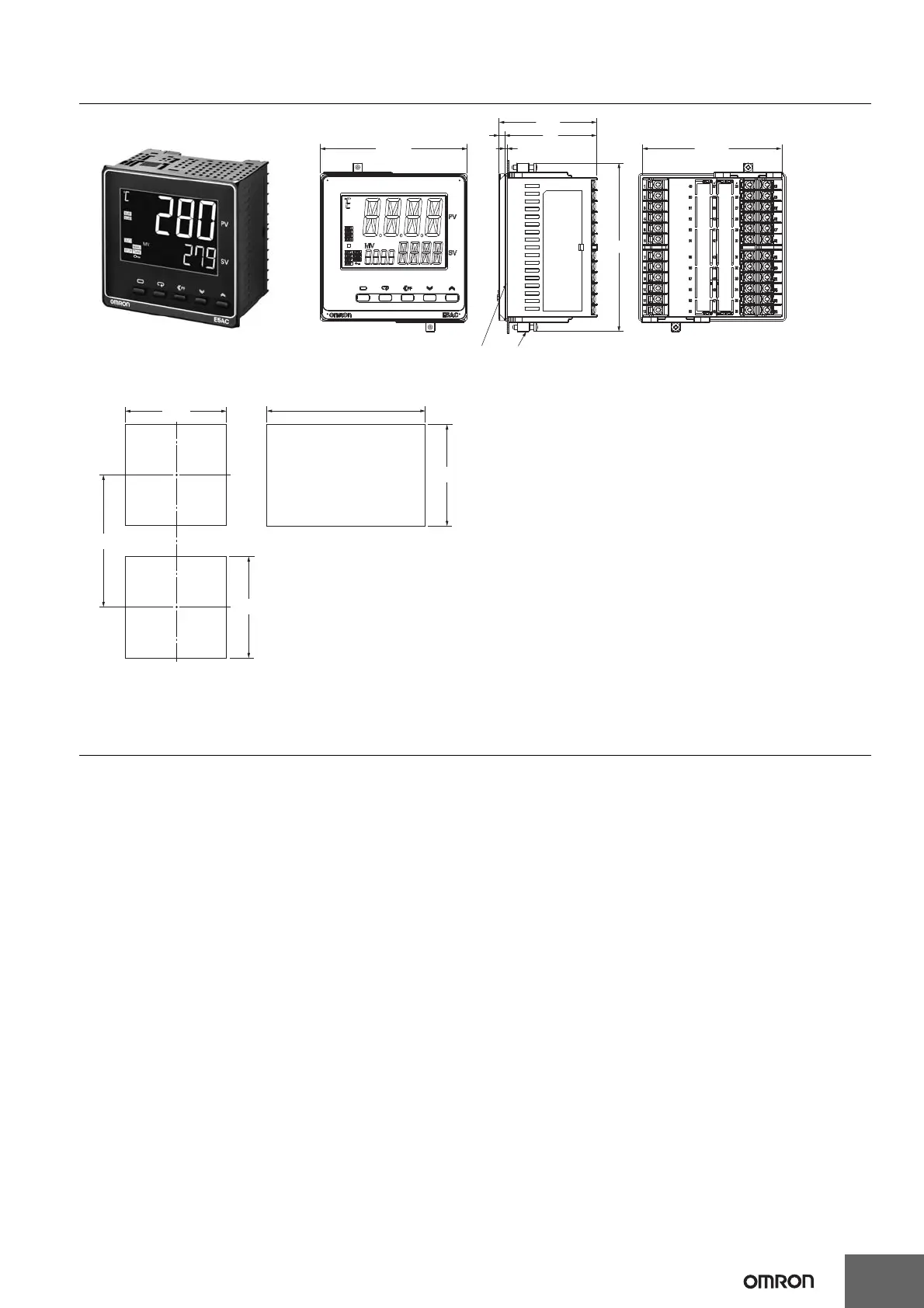

E5EC-800/E5EC-B-800/E5AC-800
35
110
96 × 96 91 × 91
60
(64)
4
91
1
Adapter
(Accessory)
Waterproof Packing
(Accessory)
92
+0.8
0
92
+0.8
0
92
+0.8
0
120 min.
(96 × number of units − 3.5)
+1.0
0
Group mounting does not
allow waterproofing.
Mounted Separately
Group Mounted
E5AC-800
• Recommended panel thickness is 1 to 8 mm.
• Group mounting is not possible in the vertical direction. (Maintain the
specified mounting space between Controllers.)
• To mount the Controller so that it is waterproof, insert the waterproof packing
onto the Controller.
• When two or more Controllers are mounted, make sure that the surrounding
temperature does not exceed the allowable operating temperature specified
in the specifications.

Omron E5CC-QX2ASM-802 Specifications

General

Brand	Omron
Model	E5CC-QX2ASM-802
Category	Temperature Controller
Language	English
