Omron E5CC-RX2ASM-802 User Manual

E5CC-800/E5CC-B-800/E5CC-U-800
16

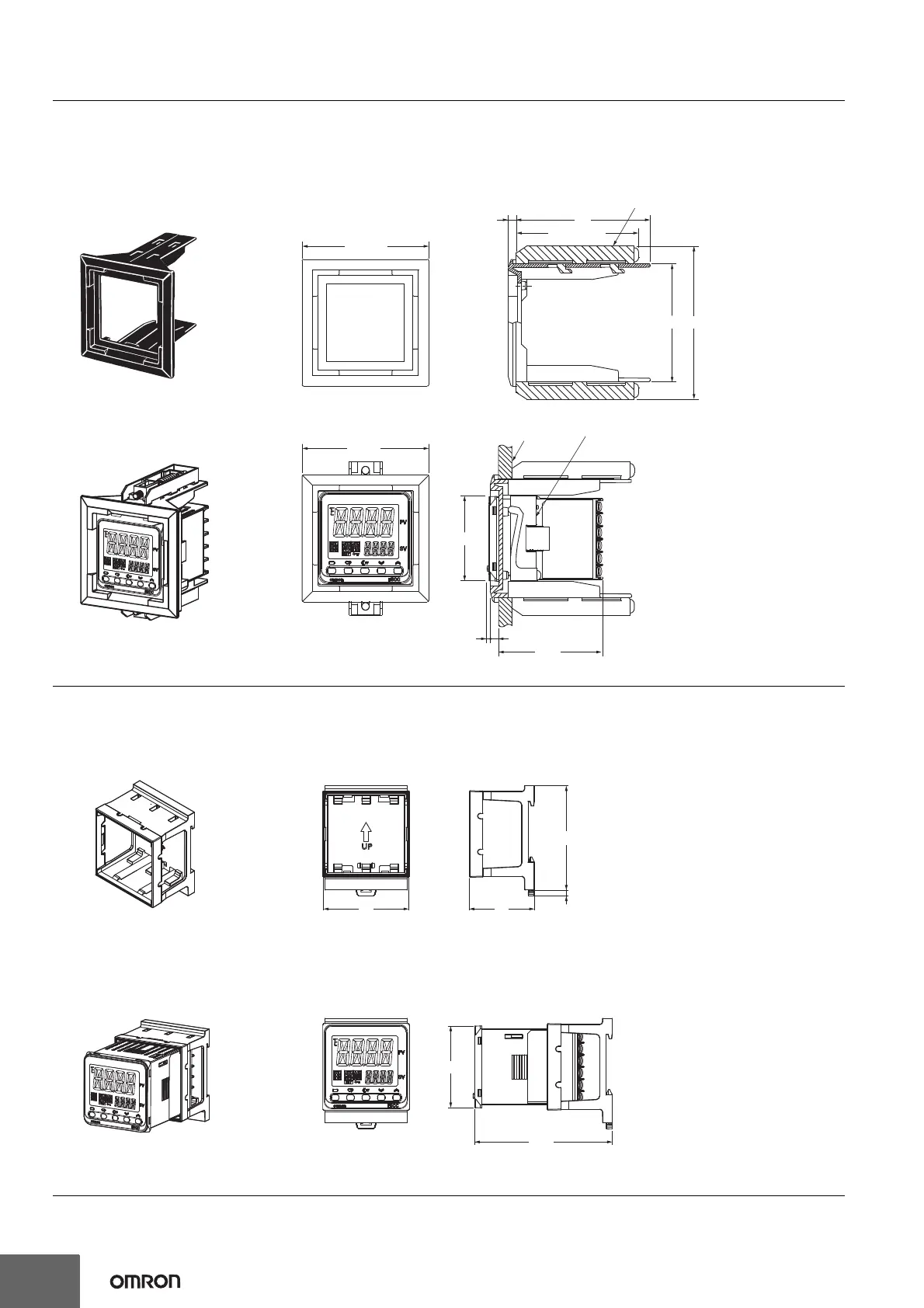

● Adapter
● DIN Track Mounting Adapter
Fixture (Accessory)
69.6 to 77.6
8767 × 67
72 × 72
76
4.7
62.8
To back of the E5CC-800
72 × 72
48 × 48
Panel (1 to 8 mm)
Mounting Adapter
Y92F-30
(Accessory)
2.2 4.7
Y92F-45
Mounted to E5CC-800
Note: 1. Use this Adapter when the Front Panel has already been prepared for the E5B@.
2. Only black is available.
50
61
3.5
38
48
80.5
Y92F-52
Mounted to E5CC-800
Note: 1. This Adapter cannot be used together with the Terminal Cover.
Remove the Terminal Cover to use the Adapter.
2. This Adapter cannot be used with the E5CC-B.
This Adapter is used to mount the
E5CC-800 to a DIN Track.
If you use the Adapter, there is no
need for a plate to mount in the
panel or to drill mounting holes in
the panel.

Omron E5CC-RX2ASM-802 Specifications

General

Brand	Omron
Model	E5CC-RX2ASM-802
Category	Temperature Controller
Language	English
