Omron E5CN-HR2M-500 - Page 12

E5CN-H
12

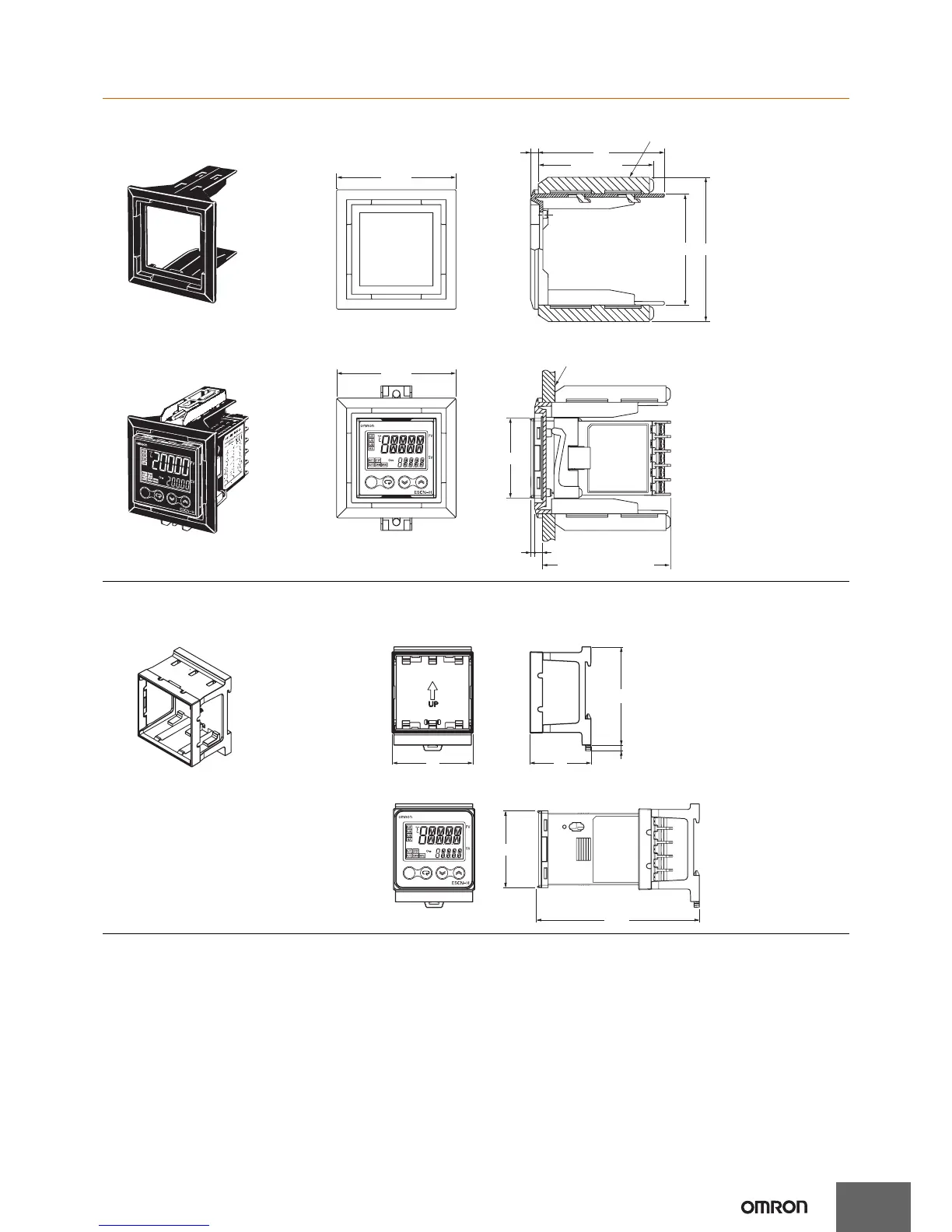

Adapter
DIN Track Mounting Adapter
Fixture (Accessory)
69.6 to 77.6
8767 × 67
72 × 72
76
4.7
72 × 72
48 × 48
Panel (1 to 8 mm)
77.3 (to back of E5CN-H)
2.2 4.7
Y92F-45
Mounted to E5CN-H
Note: 1. Use this Adapter when the panel has already been prepared for the E5B@.
2. The Adapter is available only in black.
50
61
3.5
38
48
100.5
Y92F-52
Note: This Adapter cannot be used together with the Terminal Cover.
Remove the Terminal Cover to use the Adapter.
Mounted to E5CN-H
